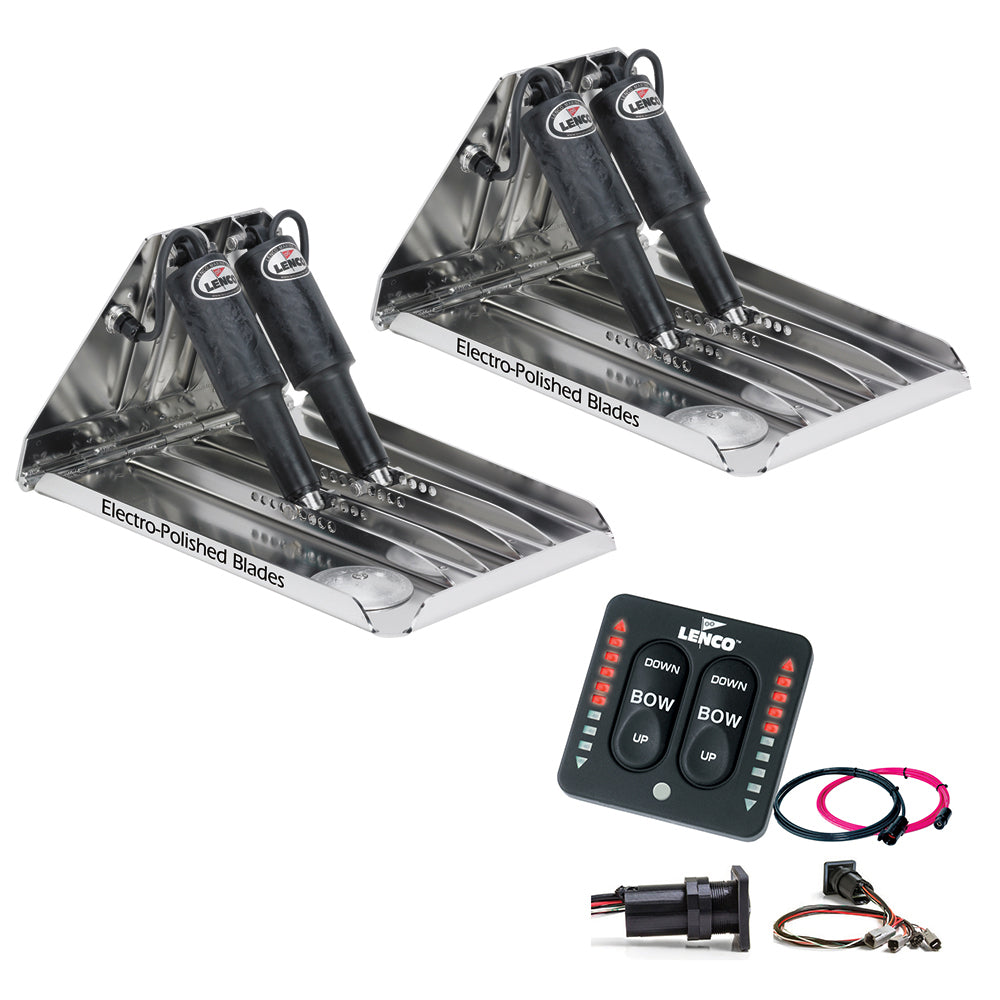

Lenco 19" x 14" Extreme Duty Performance Trim Tab Kit w/ LED Indicator Switch Kit 12V - RT19X14XDI

Lenco 19" x 14" Extreme Duty Performance Trim Tab Kit with LED Indicator Switch – 12V (RT19X14XDI)

The Lenco 19" x 14" Extreme Duty Performance Trim Tab Kit (RT19X14XDI) is designed to enhance your boat’s stability, performance, and fuel efficiency. Engineered for demanding marine environments, this kit features heavy-duty 19" x 14" stainless steel tabs and a reliable 12V hydraulic system, delivering precise trim adjustments even in rough water conditions.

Included in the kit is an LED indicator switch for intuitive monitoring of tab position from the helm. The trim tabs improve ride quality, reduce bow rise, and optimize planing for faster acceleration and better fuel economy. Built with marine-grade materials, the kit provides long-lasting performance and corrosion resistance, making it ideal for high-performance boats and professional applications.

Key Features:

• Lenco 19" x 14" Extreme Duty Performance Trim Tab Kit

• 12V hydraulic system for reliable operation

• Stainless steel tabs for maximum strength and durability

• LED indicator switch for precise monitoring from the helm

• Enhances stability, ride quality, and fuel efficiency

• Ideal for high-performance and professional boats

• Part Number: RT19X14XDI

The Lenco RT19X14XDI Trim Tab Kit combines strength, precision, and durability, giving boaters superior control, comfort, and performance on the water.

Actuators

• Instant response

• Fully submersible, maintenance-free and sealed for life

• Electro-poished solid 316 stainless steel billet ends

• High-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case

• 3/8" stainless steel bolts

Tactile Switch w/ Indicator LED for all Single Actuator Trim Tab Systems
Features:

• Self-contained, sealed keypad

• Self-contained, sealed control box module

• Fade/smudge-proof, laser engraved graphics

• Plug & play switch wiring harness connector

• Includes 36" power pigtail for control box

• 2" hole cut-out size, overall size 2.75" x 2.75"

• Built-in retract feature returns tabs to a fully retracted position when power is removed

• 2 high-intensity L.E.D. indicator displays show the exact position of our trim tabs at all times

• Photo eye reads ambient light and adjusts the L.E.D. indicator display intensity for optimum viewing in direct sunlight

• 12 & 24-volt compatibility

• Includes Self-Check Feature

Each kit contains:

• Tactile LED Indicator Switch Kit

• 4 actuators with 6' Lead and Deutsch Plugs

• 2 SS trim tab planes

• Boat Mounting Harware supplied by customer

• Actuator Extension Harnesses(4 For Dual Actuator Application) will be required

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer : Lenco Marine
Manufacturer Part No : RT19X14XDI
