Lenco 102XD Extreme Duty Actuator - 12V - 4-1/4" Stroke - 15060-001

Lenco 102XD Extreme Duty Actuator – 12V | 4-1/4" Stroke | Model 15060-001

The Lenco 102XD Extreme Duty Actuator is a high-performance, heavy-duty actuator designed for demanding marine applications. Operating on 12V DC, this actuator delivers a 4-1/4" stroke, making it ideal for larger trim tabs and boats requiring maximum lift and precise control. Built for extreme-duty use, it ensures reliable, long-lasting performance even in the harshest marine environments.

Constructed with marine-grade, corrosion-resistant materials, the 102XD actuator offers smooth, quiet operation while resisting saltwater and freshwater corrosion. Its rugged design makes it perfect for serious boaters who need strength, durability, and precision in their trim tab systems.

Key Features:

• Voltage: 12V DC

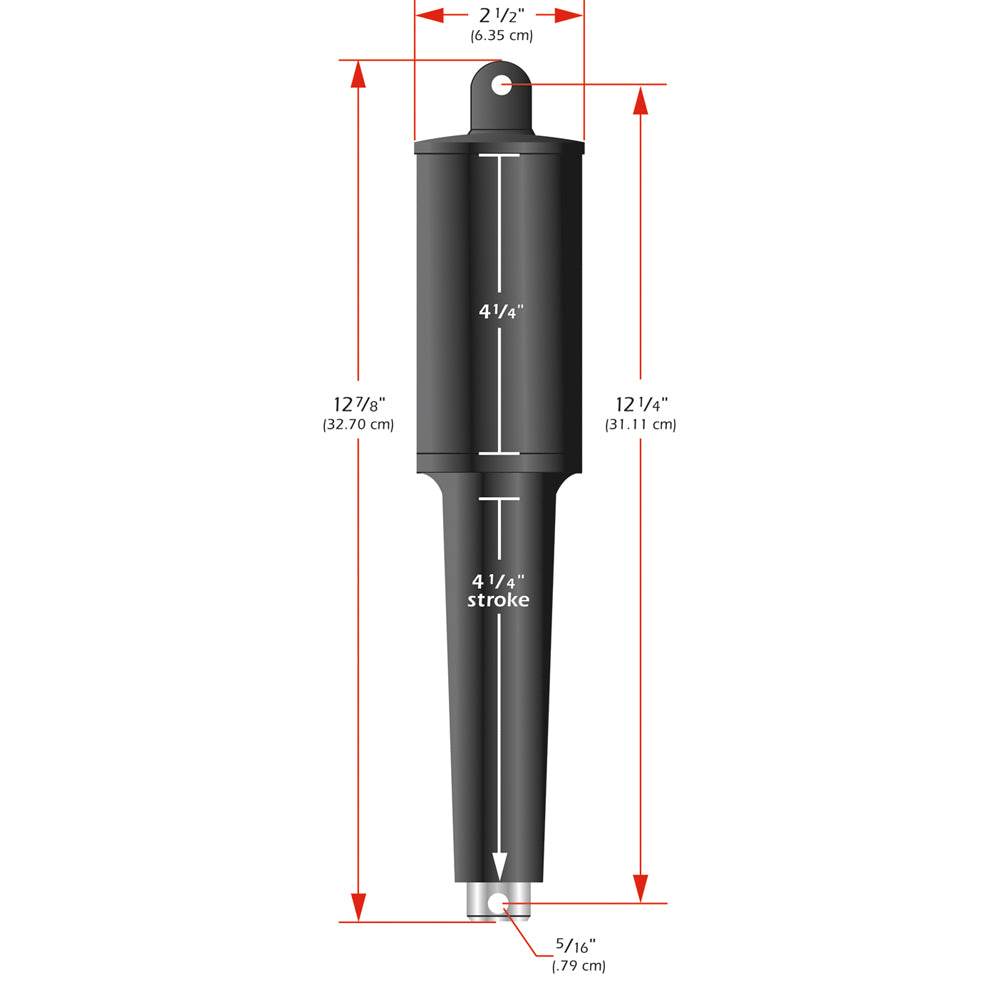

• Stroke Length: 4-1/4"

• Model Number: 15060-001

• Extreme-duty actuator for heavy trim tab applications

• Marine-grade corrosion-resistant construction

• Smooth, quiet, and dependable operation

• Compatible with larger trim tab systems for superior lift

Benefits:

• Provides maximum trim tab lift for improved handling

• Enhances boat stability, planing, and fuel efficiency

• Built to withstand extreme marine conditions

• Ideal for upgrading or replacing existing trim tab actuators

The Lenco 102XD Extreme Duty Actuator 15060-001 is a trusted solution for boaters seeking power, reliability, and extreme-duty performance. It delivers the precision and strength required to optimize your vessel’s performance and handling.

Keywords: Lenco 102XD actuator, 12V marine actuator, extreme duty trim tab actuator, Lenco 15060-001, large trim tab actuator, heavy-duty marine actuator, 4-1/4" stroke actuator.

Key Features:

• Lenco 102XD Extreme Duty trim tab actuator

• Voltage: 12V DC

• Stroke length: 4-1/4"

• Designed for high-performance and commercial applications

• Heavy-duty, corrosion-resistant marine construction

• Provides smooth, precise trim tab operation

• Ideal as a replacement or upgrade actuator

• Part Number: 15060-001

The Lenco 102XD Extreme Duty Actuator delivers dependable strength and precision, ensuring superior trim tab performance and control in the toughest marine environments.

Specifications:

• Newly implemented Anti Extrusion Ring (AXR) seal stabilization system.
• Stronger top cap and mounting clevis design
• Improved pressure-tight torx screws
• Integrated wiper seal at actuator base
• Molded-in brass thrust bearing design
• Thicker and stronger motor housing wall
• Improved O-Ring design for more consistent seal
• Over-molded cable providing a stronger tighter seal
• Upper mounting bracket with gland seal

Features:

• Lenco's ballscrew design is more reliable and twice as powerful compared to typical hydraulics
• Lenco's tough, high-torque actuator motor easily pushes 500 pounds.
• Lenco Actuator connections use waterproof "Plug & Play" Deutsch connectors eliminating the possibility of water intrusion.
• 12 Volt
• 5/16" mounting hardware
• 6 foot cable

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer : Lenco Marine
Manufacturer Part No : 15060-001
UPC : 874847003254
