What makes the Lenco 101XD Actuator suitable for heavy-duty marine applications?

The Lenco 101XD Actuator is designed with extreme-duty construction, marine-grade corrosion-resistant materials, and a powerful ballscrew design that easily pushes up to 500 pounds, making it ideal for demanding marine environments and heavy-duty trim tab systems.

How does the Lenco 101XD Actuator improve boat performance?

This high-performance 12V marine actuator provides reliable, precise movement for larger or heavy-duty trim tabs, enhancing boat stability, planing, and handling under tough conditions.

What are the key features and durability enhancements of the Lenco 101XD Actuator?

Key features include a corrosion-resistant construction, anti-extrusion seal stabilization, stronger top cap and mounting clevis, waterproof waterproof Deutsch plug connections, and a thicker motor housing, all ensuring long-lasting, reliable operation in harsh marine environments.

What makes the Lenco 101XD Actuator suitable for heavy-duty marine applications?

The Lenco 101XD Actuator is designed with an extreme-duty build, featuring marine-grade corrosion-resistant materials, a powerful ballscrew design, and a robust 12V motor that easily handles heavy trim tab loads, making it ideal for demanding marine environments.

How does the Lenco 101XD Actuator improve boat performance?

This high-performance marine actuator provides precise, reliable movement of large or heavy-duty trim tabs, which enhances boat stability, improves planing, and ensures better handling even in challenging conditions, making it a trusted solution for boaters seeking dependable control.

Popular right now
Lots of people have looked at this recently

Lenco 101XD Extreme Duty Actuator - 12V - 2-1/4" Stroke - 5/16" Hardware - 15055-001

$249.99 ~~$421.89~~

SKU: 29125

Manufacturer Part #: 15055-001

Lenco 101XD Extreme Duty Actuator – 12V | 2-1/4" Stroke | 5/16" Hardware | Model 15055-001

The Lenco 101XD Extreme Duty Actuator (15055-001) sets a new standard in rugged, high-load electric actuation for marine trim tab systems. Designed for heavy-use boats and demanding sea conditions, this 12-volt actuator delivers powerful, precise, and dependable performance in a compact package. With a 2¼" (2.25") stroke length and 5/16" mounting hardware, it’s engineered to fit a wide range of Lenco trim tab systems requiring robust actuation and reliable response.

Built to handle frequent operation and resist corrosion in harsh saltwater environments, the 101XD Extreme Duty actuator is ideal for boaters who want instant electric trim control without the complexity and maintenance of hydraulics. Whether you’re upgrading an existing electric system or installing a heavy-duty setup, this actuator delivers smooth, responsive movement that enhances boat handling, stability, and fuel efficiency.

The "Standard Hardware" Hybrid

What makes the 15055-001 unique in the XD lineup is its use of 5/16" mounting hardware. Most Extreme Duty actuators require 3/8" bolts, which necessitates drilling larger holes in your transom. This model provides the reinforced internal gears and thicker housing of the XD series while remaining a direct drop-in replacement for standard Lenco 101 actuators.

Reliable All-Electric Power

Lenco’s ball-screw technology replaces the sluggishness and maintenance of hydraulic systems with instant, reliable power.

Instantaneous Response: The 12V motor moves the moment you touch the helm, allowing for split-second corrections in rough following seas.
Zero Creep: Unlike hydraulic cylinders that can lose pressure, the 101XD locks into position and stays there until you move it.
Maintenance-Free: Completely self-contained with no pumps, hoses, or hydraulic oil to leak into the bilge.

Extreme Offshore Construction

Thick-Wall Housing: The actuator is encased in high-impact, UV-resistant glass-filled nylon with extra reinforcement at the stress points.
Submersible Durability: Features a double O-ring seal on the shaft and housing, ensuring a 100% waterproof environment for the motor and gears.
Plug-and-Play: Includes a 6-foot lead with a factory-installed waterproof Deutsch connector for a corrosion-resistant electrical connection.

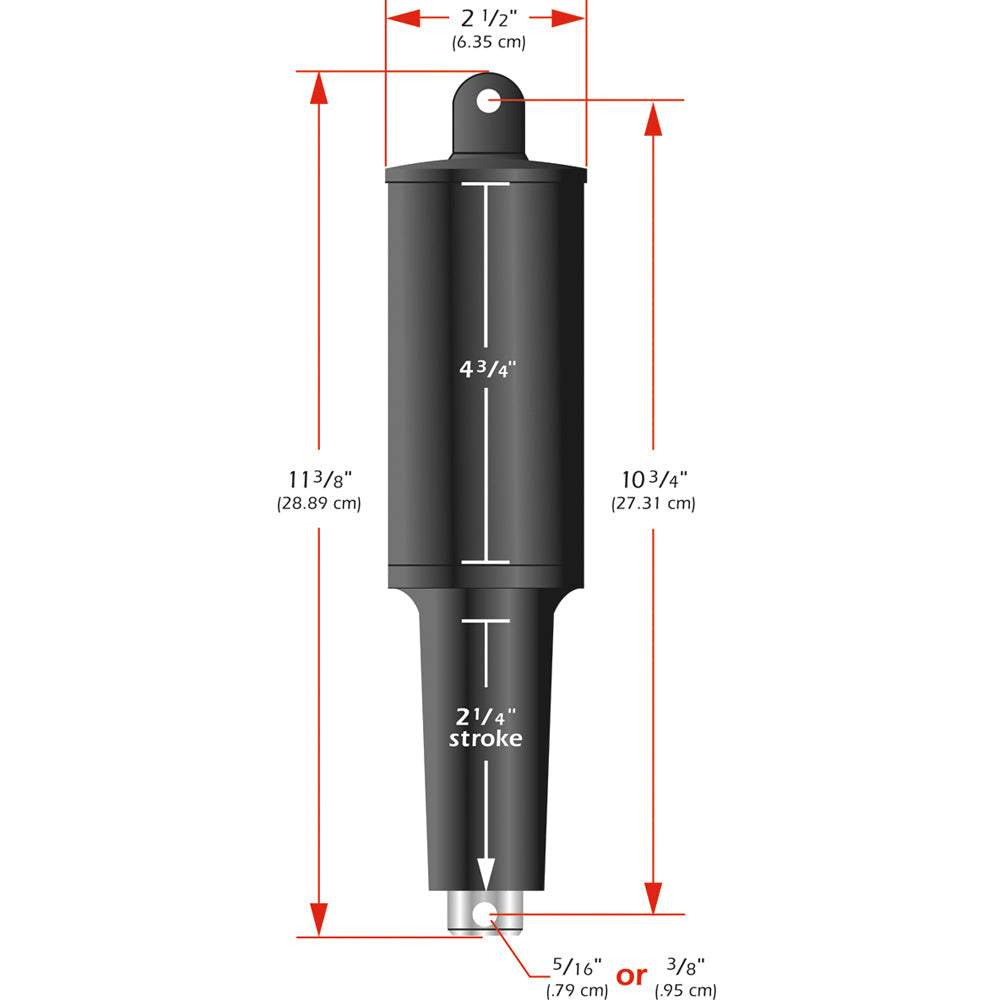

Technical Specifications

Feature	Details
Model Number	15055-001
Series	101XD (Extreme Duty)
Voltage	12-Volt
Stroke Length	2-1/4" (Short Stroke)
Mounting Hardware	5/16" Stainless Steel (Standard Size)
Overall Length (Retracted)	11-3/8"
Connector	6' Lead with Deutsch Plug
Material	Reinforced Glass-Filled Nylon

In the Box: 15055-001

(1) 101XD 12V Actuator: With 6-foot lead.
(1) Upper Mounting Bracket: Reinforced XD design.
(1) Lower Mounting Bracket: XD-compatible.
(1) Hardware Pack: 5/16" stainless steel mounting bolts and gland seals.

Pro-Tip for Upgrade:

"If you currently have standard Lenco 101 actuators and find that they struggle to hold position or fail prematurely due to high-speed running, the 15055-001 is your best upgrade path. Since it uses the same 5/16" hardware, you can swap it out in minutes without having to drill new holes in your transom."

🔧 Key Benefits

Extreme duty performance for high-load trim applications
Instant electric response—no hydraulics, pumps, or fluid
Improves control, stability, and ride comfort
Quiet, smooth operation with minimal maintenance
Built to withstand harsh marine environments

⚙️ Features

12V DC operation—designed for standard boat electrical systems
2¼" (2.25") stroke length for effective trim tab travel
5/16" mounting hardware for secure installation
Heavy-duty actuator construction with reinforced housing
Corrosion-resistant components for long-lasting marine performance
Waterproof electrical connectors and durable cable
Sealed design with enhanced internal seals for protection
Manufactured by Lenco Marine, a trusted leader in electric trim tab actuators

📊 Specifications

Model Number: 15055-001
Actuator Type: Extreme Duty Electric Actuator
Voltage: 12V DC
Stroke Length: 2¼" (2.25")
Mounting Hardware Size: 5/16"
Recommended Use: Heavy-duty trim tab systems
Construction: Marine-grade, corrosion-resistant materials

🚤 Ideal Applications

The Lenco 101XD Extreme Duty Actuator – 12V (15055-001) is ideal for:

Center console and bay boats
Offshore fishing vessels and cruisers
Boats with frequent trim tab usage
Heavy-load trim tab installations
Replacement or performance upgrade installations

🛠 Why Choose Lenco

Lenco electric actuators are widely trusted for instant response, rugged durability, and low-maintenance operation. Compared to hydraulic systems, Lenco’s direct-drive electric design eliminates pumps, hoses, and fluid, reducing potential failure points while offering superior trim control. Built with marine-grade materials and engineered for performance, the 101XD Extreme Duty actuator delivers confidence and control in demanding boating conditions.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer : Lenco Marine
Manufacturer Part No : 15055-001
UPC : 874847003209
