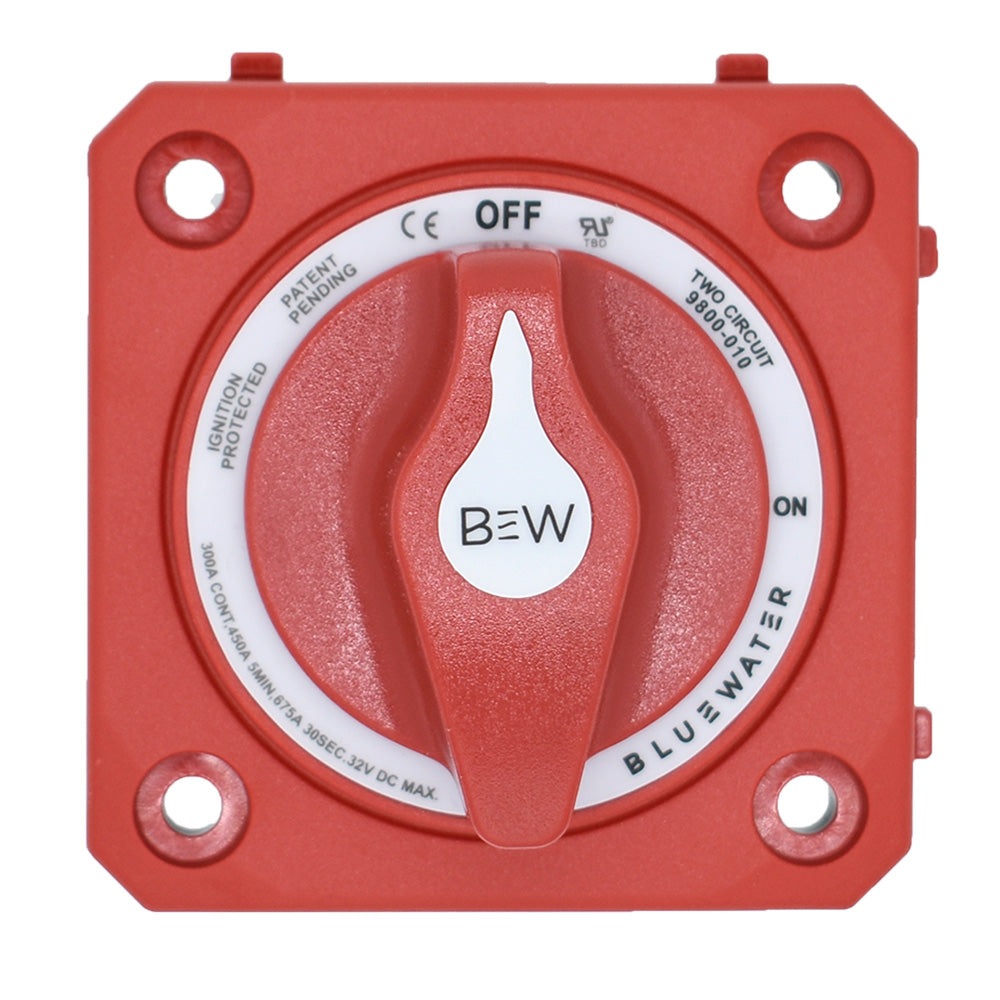

Bluewater Part 9800-010-10 On/Off 4 Post Dual Circuit Battery Switch for Marine and RV Systems - 9800-010-10

Bluewater Part 9800-010-10 On/Off 4 Post Dual Circuit Battery Switch for Marine and RV Systems

The Bluewater Part 9800-010-10 dual circuit battery switch offers precise and independent control of two separate electrical circuits using a single toggle. Engineered specifically for marine vessels, RVs, and other vehicle power systems, it allows seamless switching between batteries or isolation of circuits without the risk of cross-connection, ensuring safe and efficient power management.

• Continuous current rating: 300 amps DC
• Intermittent current rating: 450 amps for 5 minutes
• Cranking current rating: 675 amps for 30 seconds
• Maximum voltage: 32VDC
• Accommodates cable sizes up to 4/0 AWG

This switch features a versatile panel-mount design that supports surface, front, or rear panel installation, making it adaptable to various setups. Three 3/8-16 tin-plated copper studs provide high conductivity alongside corrosion resistance, accepting both 3/8-inch and M10 ring terminals. The 7/8-inch stud length ensures secure connections for multiple cables, enhancing wiring reliability.

Compared to industry standards, the Bluewater 9800-010-10 outperforms many conventional battery switches by combining robust marine-grade metals with a reinforced polycarbonate housing. This build quality fosters durability in harsh environments while the tactile, textured knob allows operators to identify switch positions by feel. Clear international ON/OFF legends and ICON labels further aid in safe and intuitive circuit identification.

Key Technical Advantages: Technology and Performance
The Bluewater 9800-010-10 battery switch boasts marine-grade, corrosion-resistant metals that ensure long-lasting performance even under demanding conditions. Its dual circuit control facilitates independent management of two circuits from one toggle, minimizing space and complexity on the control panel. High current handling capabilities—including a continuous rating of 300 amps DC and cranking rating of 675 amps—make this switch ideal for high-current applications in marine and RV systems where dependable power control is critical.

With its strong emphasis on safety, reliability, and user-friendly design, this Bluewater dual circuit battery switch is a top-tier solution for efficient power distribution and circuit isolation in recreational and marine vehicles.
