Xantrex Xanbus System Control Panel (SCP) f/Freedom SW2012/3012 - 809-0921

Xantrex Xanbus System Control Panel (SCP) – 809-0921

The Xantrex Xanbus System Control Panel (SCP) is a dedicated remote monitoring and control interface for the Freedom SW2012 and SW3012 inverter/chargers. Designed for marine, RV, and mobile power applications, the SCP provides full system visibility and control at a convenient location away from the main inverter/charger.

Through the Xanbus communication network, the SCP displays critical system information including AC input/output status, battery voltage, charging current, inverter status, and fault conditions. Its intuitive interface allows users to monitor and manage multiple Freedom SW inverter/chargers from a single panel, providing operational control without accessing the inverter directly.

The SCP enhances system convenience, safety, and efficiency, making it an essential accessory for complex inverter installations in boats, RVs, and off-grid power systems.

🔧 Technical Specifications

General

• Product Type: Remote control and monitoring panel

• Compatibility: Xantrex Freedom SW2012 and SW3012 inverter/chargers

• Connection: Xanbus network interface

• Display Type: Digital LCD with status indicators

• Mounting: Panel mount

Functions

• Displays AC input/output status

• Shows battery voltage and charging current

• Monitors inverter operating mode and fault conditions

• Provides control of inverter functions remotely

• Multi-unit monitoring via Xanbus network

Environmental

• Operating Temperature: 32°F to 122°F (0°C to 50°C)

• Humidity: Up to 95% non-condensing

Physical

• Dimensions (H × W × D): Approx. 5.0″ × 3.5″ × 1.5″

• Weight: Approx. 1.0 lb (0.45 kg)

• Color: Black

Certifications

• Compatible with UL-listed Freedom SW series inverter/chargers

Warranty

• 1-Year Manufacturer Warranty

⭐ Key Features

• Remote monitoring and control for Freedom SW2012/3012 inverter/chargers

• Xanbus network connectivity for full system integration

• Displays AC input/output, battery voltage, charging current, and inverter status

• Multi-unit monitoring for complex systems

• Compact panel mount design

• Ideal for marine, RV, and off-grid mobile power applications

• Enhances operational convenience and system safety

Freedom SW Xanbus System Control Panel (SCP)
809-0921

Specifically designed to operate with the NEW Generation Freedom SW Inverter/Chargers (part# 815-2012 & 815-3012).

Product Description
Use the System Control Panel for quick and comprehensive control of the Freedom SW Inverter/Charger.

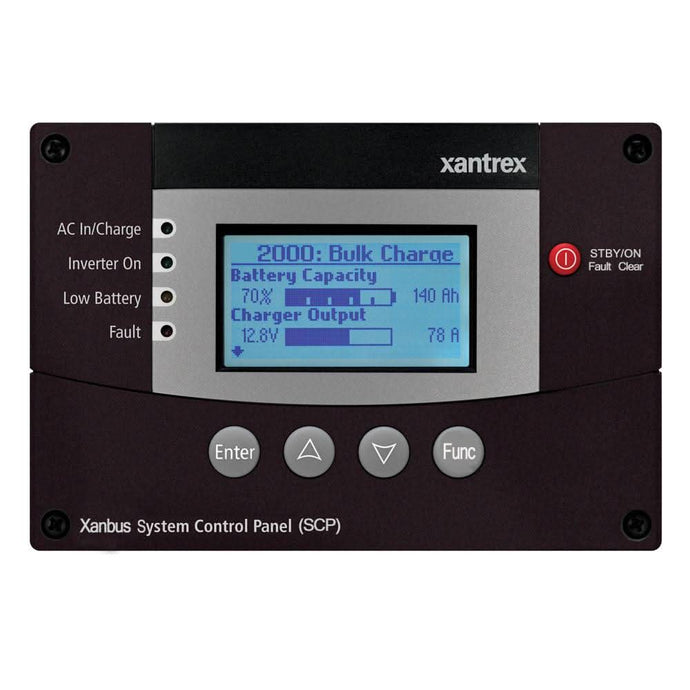

The Xanbus System Control Panel (SCP) features a graphical, backlit LCD screen that displays system configuration and diagnostic information in one central location. Large keypad buttons, an intuitive onscreen menu system, and plain text status messages make it easy to configure and operate. By providing basic controls for other devices connected to the network, the SCP reduces the complexity of separate control panels for each device.

The SCP is Xanbus Enabled and easily connects to Freedom SW Inverter/Charger and other devices with off-the-shelf network cables, making installation quick and easy. Built-in flash memory makes the SCP's software upgradeable to take advantage of new features and system enhancements.

Product Features

• Graphical 128x64 pixel LCD display

• Large, tactile keys

• Meets UL458 regulatory standards

• Control and display of multiple networked devices

• Xanbus Enabled

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer : Xantrex
Manufacturer Part No : 809-0921
UPC : 715535009212
