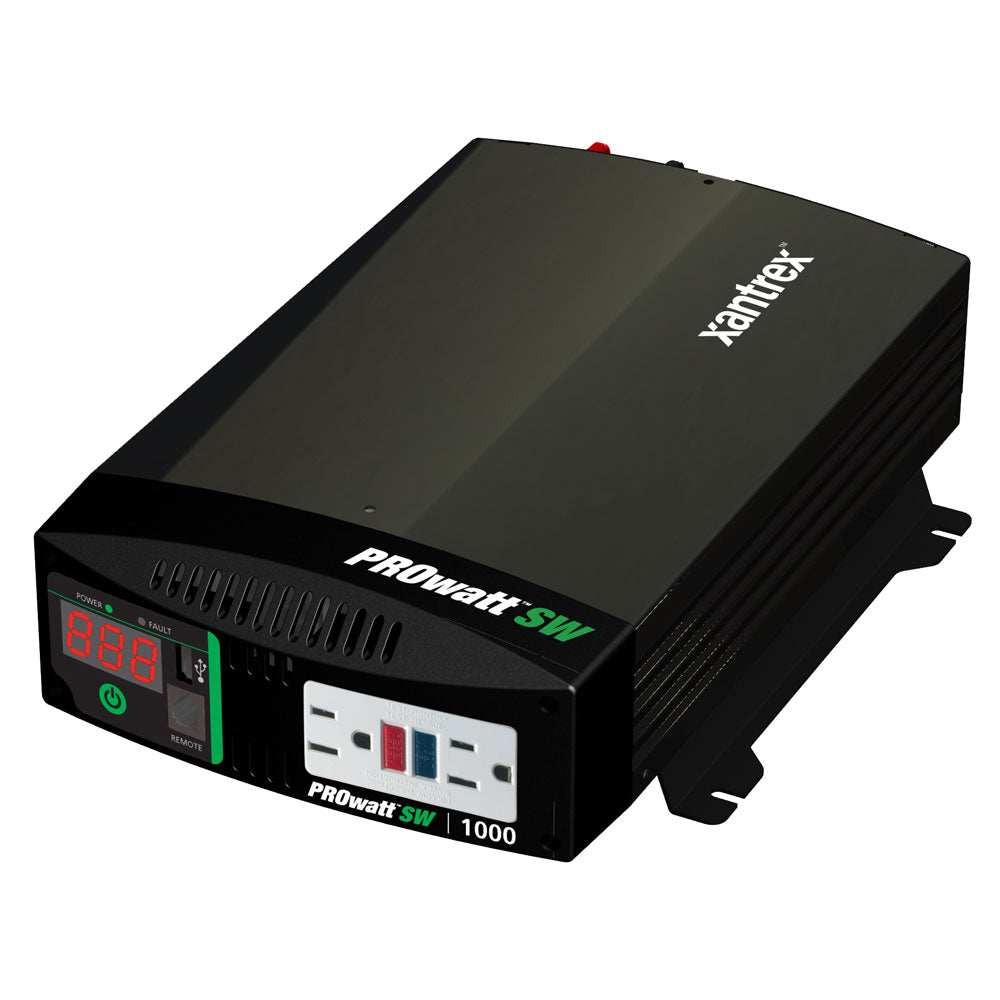

Xantrex PROwatt SW1000 - True Sine Wave Inverter - 806-1210

Xantrex PROwatt SW1000 True Sine Wave Inverter – 1000W (806-1210)

The Xantrex PROwatt SW1000 is a 1000-watt true sine wave inverter designed to deliver clean, reliable AC power from a 12V DC battery system. Ideal for marine, RV, truck, van, and off-grid applications, the SW1000 provides utility-grade electricity for sensitive electronics, appliances, and power tools.

Featuring true sine wave output, the PROwatt SW1000 ensures safe operation for laptops, TVs, medical devices, and other sensitive equipment. With a high surge capacity, it can start motors and compressors with ease. Its compact, lightweight design allows flexible installation in tight spaces, while built-in safety protections keep both the inverter and connected devices safe.

The Xantrex PROwatt SW1000 combines durability, efficiency, and reliability, making it a trusted solution for mobile and off-grid AC power needs.

🔧 Technical Specifications

Electrical

• Inverter Type: True Sine Wave

• Continuous Power Output: 1,000 watts

• Surge Power: 2,000 watts

• DC Input Voltage: 12 VDC

• AC Output Voltage: 120 VAC ±5%

• Output Frequency: 60 Hz ±0.05%

• Maximum AC Output Current: 8.3 amps

• Peak Efficiency: Up to 90%

• No-Load Power Draw: < 1.5 amps DC

Input & Output

• AC Receptacles: Dual 120V AC outlets

• Hardwire Capability: Yes

• DC Connection: Battery terminals

• Remote On/Off: Optional PROwatt SW remote

Protection & Safety

• Overload protection

• Short-circuit protection

• Over-temperature shutdown

• Low battery alarm and shutdown

• Reverse polarity protection

Environmental

• Operating Temperature Range: 32°F to 104°F (0°C to 40°C)

• Cooling: Variable-speed temperature-controlled fan

Physical

• Dimensions (L × W × H): Approx. 13.0″ × 7.0″ × 3.5″

• Weight: Approx. 9 lb (4.1 kg)

• Mounting: Horizontal or vertical

Certifications

• UL 458

• Marine ignition protection compliant

• FCC Class B

Warranty

• 1-Year Manufacturer Warranty

⭐ Key Features

• 1,000W continuous true sine wave AC power output

• High surge capacity for motor-driven appliances

• Safe for sensitive electronics

• Dual AC outlets for flexible power use

• Compact, lightweight, and rugged design

• Multiple built-in safety protections

• Optional remote on/off control

Features:

• 900W Continuous, 2000W Surge Capability

• Built-in digital display for DC volts and output power

• Built-in USB port

• Dual GFCI AC receptacles for safe operation

• Heavy duty terminals for trouble-free battery connection

• Available ON/OFF remote switch (with ignition lockout)

• Two year warranty

Protection Features:

• Low voltage shutdown (10.5 Vdc)

• Low voltage alarm (11.0 Vdc)

• Over voltage protection (15.5 Vdc)

• Over load shutdown

• Over temperature shutdown

• GFCI protection

Electrical Specifications:

• Continuous Power:900W

• Surge Capacity (Peak): 2000W

• DC Input: 12 Vdc (nominal)

• AC Output Frequency: 60 ± 0.5 Hz

• AC Output Voltage Range: 104 - 127 Vac

• USB Output: 5 V / 500 mA

• Output Waveform: True Sine Wave

• Optimum Efficiency: 90%

• No Load Current Draw: < 0.6 A

• Input Voltage Range: 10.5 - 15.5 Vdc

General Specifications:

• Operating Temperature Range: 32°F - 104°F (0°C - 40°C)

• AC Receptacle: Dual GFCI

• USB Receptacle: Single Port (Type A)

• DC Connection: Hardwire

• Recommended DC Fuse: 150 A

• Digital Display: DC voltage, AC output power & error codes

• Dimensions (H x W x L): 3.5" x 8.7" x 13.1" (89 x 220 x 339mm)

• Weight: 7.2lb (3.3kg)

• Warranty: Two year

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer : Xantrex
Manufacturer Part No : 806-1210
UPC : 715535894146
