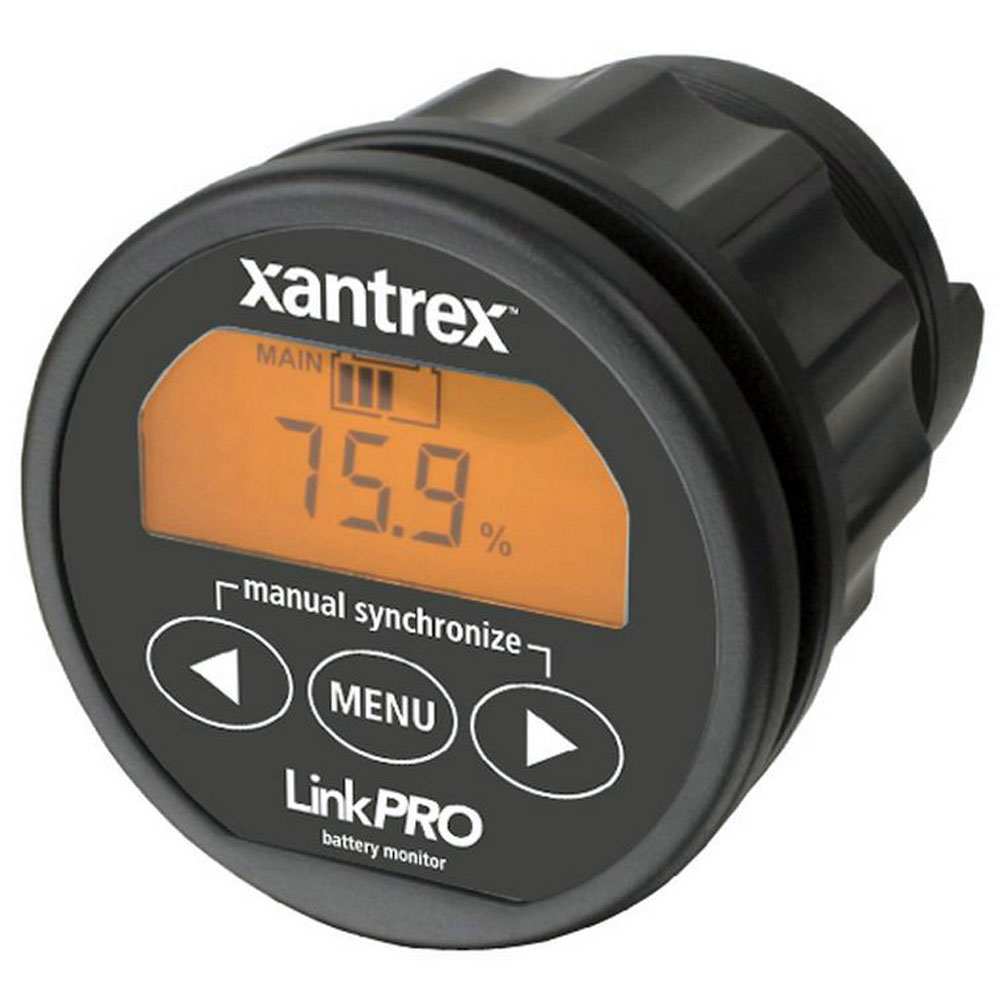

Xantrex LinkPRO Battery Monitor - 84-2031-00

Xantrex LinkPRO Battery Monitor – 84-2031-00

The Xantrex LinkPRO Battery Monitor is a high-precision battery monitoring system designed for marine, RV, and off-grid applications. It provides real-time monitoring of battery voltage, current, and state of charge, allowing users to optimize battery performance, extend battery life, and ensure reliable power management.

With an intuitive digital display, the LinkPRO shows critical system information including cumulative amp-hours, power consumption, and remaining battery capacity. Designed for compatibility with multiple battery types, it’s an essential tool for managing lead-acid, AGM, and gel batteries in standalone or complex power systems.

Ideal for off-grid solar, RV, marine, and mobile power setups, the Xantrex LinkPRO enables precise energy tracking, system diagnostics, and remote monitoring when paired with compatible accessories.

🔧 Technical Specifications

Electrical

• Monitor Type: Battery monitoring system

• Measured Parameters: Voltage, current, state of charge, amp-hours, power consumption

• Battery Compatibility: Flooded, AGM, Gel

• DC System Voltage: 12 / 24 VDC systems

Display

• Type: Digital LCD

• Information Displayed: Battery voltage, current draw, amp-hours used, state of charge, system warnings

Connectivity

• Shunt Included: Yes

• Remote Monitoring: Compatible with Xantrex LinkPRO accessories

• Communication Interface: Wired connection to battery system

Environmental

• Operating Temperature Range: 32°F to 122°F (0°C to 50°C)

• Humidity: Up to 95% non-condensing

Physical

• Dimensions (H × W × D): Approx. 4.5″ × 3.5″ × 2.0″

• Weight: Approx. 1.2 lb (0.55 kg)

• Mounting: Panel mount

• Color: Black

Certifications

• Designed for use with UL-listed Xantrex battery systems

Warranty

• 1-Year Manufacturer Warranty

⭐ Key Features

• Real-time monitoring of voltage, current, amp-hours, and state of charge

• Compatible with lead-acid, AGM, and gel batteries

• Digital LCD display for clear system readouts

• Includes shunt for accurate current measurement

• Ideal for marine, RV, and off-grid battery systems

• Helps extend battery life and optimize energy usage

• Optional remote monitoring with compatible accessories

Performance Features

• Read your battery bank like a fuel gauge

• Provides critical information about the status of your battery bank

• Displays voltage, current, consumed amp hours and remaining battery capacity

• Two battery inputs

• Auto sensing battery voltage inputs

• Large backlit LCD Display

• Quick nut mounting construction

• Programmable alarm relay

• Shunt selection capability enables flexible system integration

• Splash proof front panel

• 500 Amp shunt included

• CE and e-mark certified

• Displays time remaining

• Communication/expansion port

• Stores a wide range of history events in internal memory

• Advanced programmable alarm relay

• Battery temperature sensor input

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer : Xantrex
Manufacturer Part No : 84-2031-00
UPC : 687873687950
