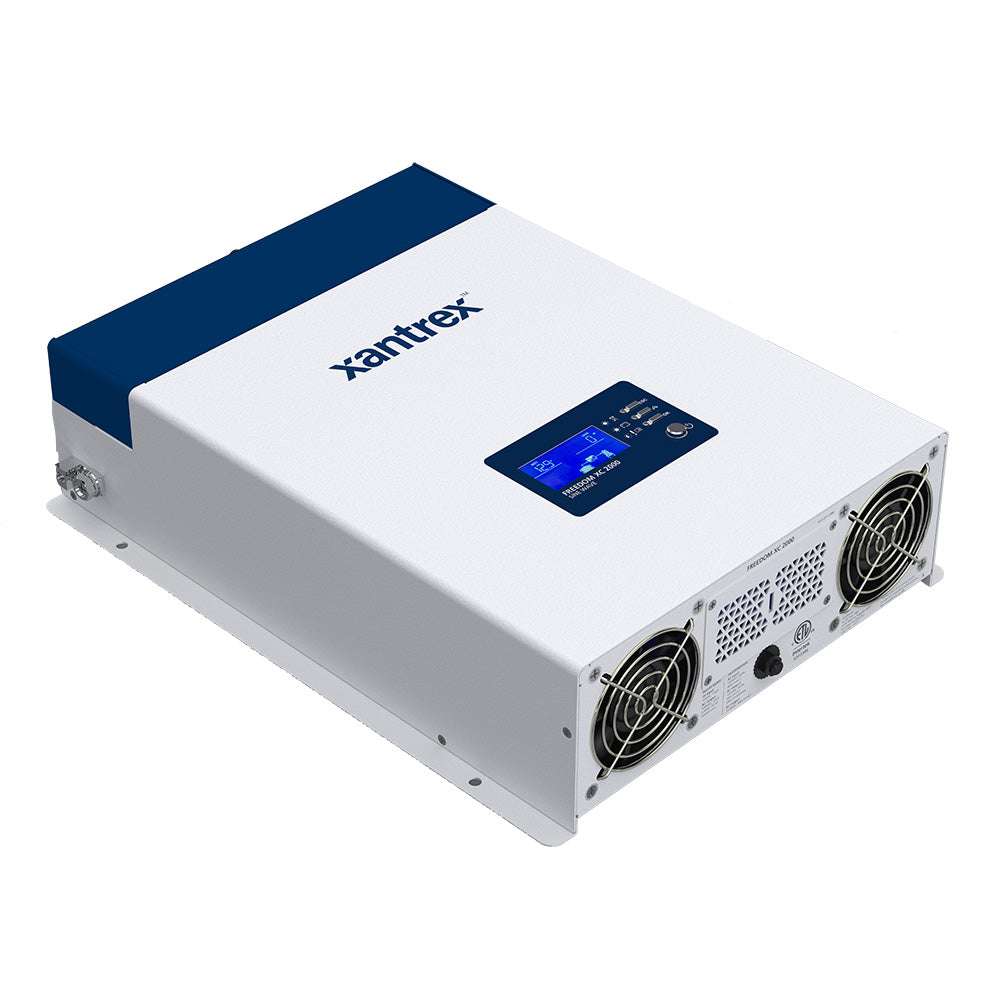

Xantrex Freedom XC 2000 True Sine Wave Inverter/Charger - 12VDC - 120VAC - 2000W/80A - 817-2080

Xantrex Freedom XC 2000 True Sine Wave Inverter/Charger – 12V – 2000W / 80A (817-2080)

The Xantrex Freedom XC 2000 True Sine Wave Inverter/Charger is a robust all-in-one power solution for marine, RV, off-grid, and mobile applications. Delivering 2,000 watts of continuous AC power with a high 80-amp multi-stage battery charger, this inverter/charger provides clean, utility-grade electricity for sensitive electronics while keeping your battery bank fully charged.

Equipped with true sine wave output, the Freedom XC 2000 is safe for laptops, medical equipment, TVs, and other sensitive devices. The integrated automatic transfer switch ensures seamless switching between inverter power and shore or generator AC input. Compact and durable, the unit is designed for easy installation in tight spaces and provides advanced battery management and protection.

Ideal for demanding mobile power needs, the Freedom XC 2000 combines efficiency, reliability, and peace of mind in one high-performance unit.

🔧 Technical Specifications

Inverter

• Inverter Type: True Sine Wave

• Continuous Power Output: 2,000 watts

• Surge Power: 4,000 watts

• DC Input Voltage: 12 VDC

• AC Output Voltage: 120 VAC ±5%

• Output Frequency: 60 Hz ±0.05%

• Maximum AC Output Current: 16.7 amps

• Peak Efficiency: Up to 90%

• No-Load Power Draw: Low idle consumption

Battery Charger

• Charging Output: 80 amps

• Charger Type: Multi-stage smart charger

• AC Input Voltage: 120 VAC, 60 Hz

• Battery Types Supported: Flooded, AGM, Gel (selectable)

• Power Factor Corrected: Yes

Transfer & Connectivity

• Automatic Transfer Switch: Yes

• Transfer Time: < 30 ms

• AC Connections: Hardwire terminals

• DC Connections: Battery terminals

• Remote Panel Support: Optional Freedom XC remote

Protection & Safety

• Overload and short-circuit protection

• Over-temperature shutdown

• High and low battery voltage protection

• Ground fault protection (GFCI compatible)

• Marine ignition protection compliant

Environmental

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Storage Temperature: -4°F to 140°F (-20°C to 60°C)

• Cooling: Variable-speed, temperature-controlled fan

Physical

• Dimensions (L × W × H): Approx. 15.0″ × 7.5″ × 4.0″

• Weight: Approx. 18 lb (8.2 kg)

• Mounting: Horizontal or vertical

Certifications

• UL 458

• Marine ignition protection compliant

• FCC Class B

Warranty

• 1-Year Manufacturer Warranty

Key Performance Features

• True Sine Wave Output: Clean power for sensitive electronics (laptops, CPAP machines) and motor loads.

• Extended Surge Power: Delivers 4000W for 2 seconds, providing the extra "kick" needed to start high-inertia loads like refrigerators or microwaves.

• 80A Smart Charger: A multi-stage, temperature-compensated charger that is fully programmable for Lithium (LFP), AGM, Gel, and Flooded batteries.

• Dead Battery Charging: Unique ability to initiate charging even if the battery bank has dropped to 0V DC.



• Ignition Control: Prevents battery drain by allowing the inverter to be switched on/off via the vehicle's ignition signal.

• 30A Transfer Relay: Automatically switches between shore power and inverter power in milliseconds.

Technical Specifications

In The Box

• 1 x Freedom XC 2000 Inverter/Charger

• AC Terminal Cover and hardware

• Quick Start Guide (Manuals usually available via QR/digital)

• Note: For marine installations, the Drip Shield (808-1050) is required for UL458 compliance and is typically sold separately.
