Xantrex TRUEcharge3 Remote Panel - 808-8040-10

Xantrex TrueCharge3 Remote Panel – 808-8040-10

The Xantrex TrueCharge3 Remote Panel provides convenient remote monitoring and control for TrueCharge3 multi-bank battery chargers in marine, RV, and off-grid applications. This panel allows users to view battery charging status, voltage, and current for up to three banks without accessing the charger directly.

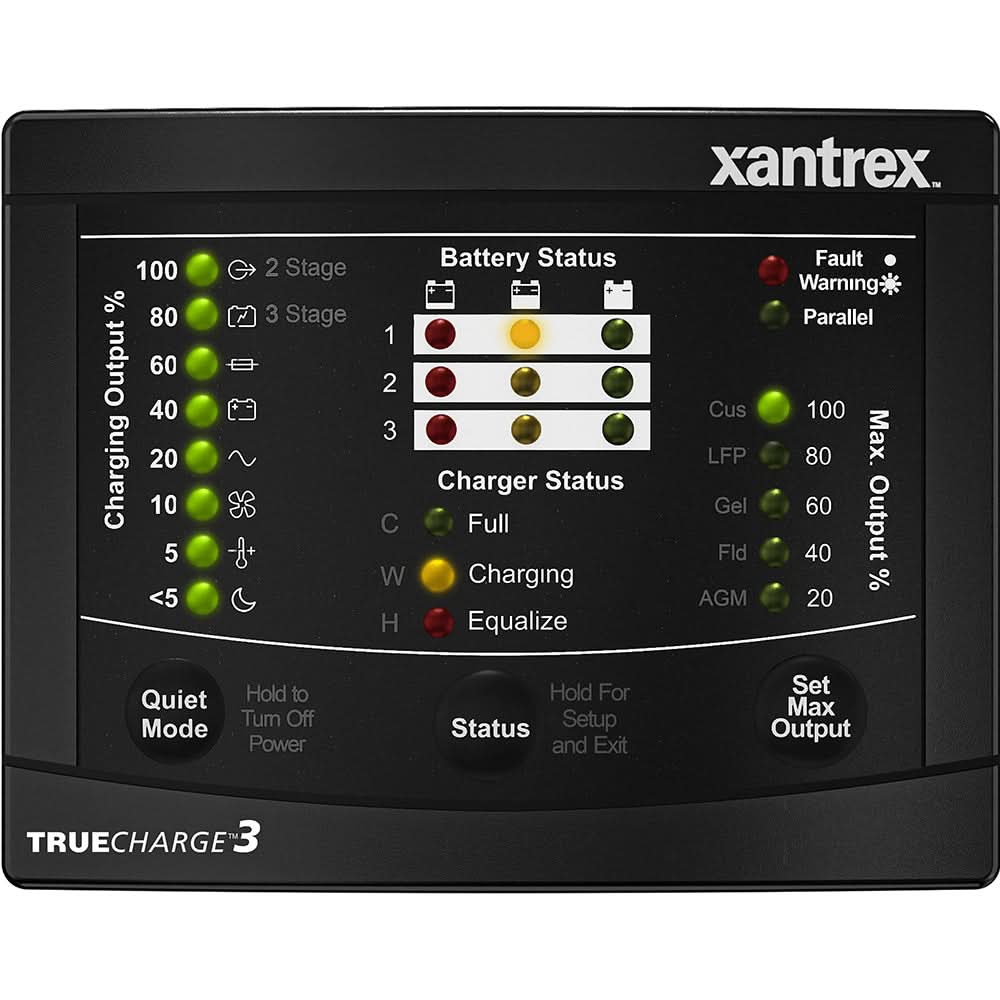

Equipped with a clear digital display, the TrueCharge3 Remote Panel shows charge level, battery condition, and LED indicators for each bank. It allows easy monitoring of multiple batteries and ensures users can optimize charging, maintain battery health, and prevent overcharging.

Compact, simple to install, and fully compatible with TrueCharge3 chargers, this remote panel enhances accessibility, convenience, and system control in mobile power setups.

🔧 Technical Specifications

General

• Product Type: Remote monitoring panel

• Compatibility: Xantrex TrueCharge3 series chargers

• Number of Banks Monitored: 3

• Display Type: Digital with LED indicators

• Mounting Type: Panel mount

Functions

• Monitors battery voltage and charging current

• Displays charging status for up to three battery banks

• LED indicators for each bank’s charge state

• Enhances accessibility to TrueCharge3 charger information

Environmental

• Operating Temperature Range: 32°F to 122°F (0°C to 50°C)

• Humidity: Up to 95% non-condensing

Physical

• Dimensions (H × W × D): Approx. 4.5″ × 3.5″ × 1.5″

• Weight: Approx. 1.0 lb (0.45 kg)

• Color: Black

Certifications

• Compatible with UL-listed TrueCharge3 chargers

Warranty

• 1-Year Manufacturer Warranty

⭐ Key Features

• Remote monitoring for TrueCharge3 multi-bank battery chargers

• Displays battery voltage, charging current, and charge status

• Monitors up to 3 battery banks simultaneously

• LED indicators provide clear visual status

• Compact, panel-mount design for easy installation

• Ideal for marine, RV, and off-grid 12V or 24V battery systems

• Helps optimize charging and maintain battery health

Features:

• Full function compatibility with TRUEcharge3 battery chargers
• Provides additional features inaccessible via the charger’s onboard display
• Allows charger to be powered on or placed on standby while AC power is connected
• Adjust maximum charger output current
• Displays individual battery bank status
• Connects two TRUEcharge3 chargers in parallel for up to 2x the output current
• FCC Class B compliant

Manufacturer : Xantrex
Manufacturer Part No : 808-8040-10
