Xantrex TRUECHARGE3 10A 3 Bank Battery Charger - 24V - 804-2410-10
The Xantrex TRUECHARGE3 10A (804-2410-10) is a high-performance, 24-volt battery charger designed for marine and commercial use. It is a compact and efficient solution for charging up to three independent battery banks simultaneously, making it a popular choice for yachts and professional work vehicles.
Product Overview
The Xantrex TRUECHARGE3 24V 10A features a micro-processor controlled, multistage charging process that ensures your batteries are charged quickly and safely. It is built to operate in harsh environments and can handle global power standards thanks to its auto-ranging AC input (90-265 VAC).
-
Multi-Bank Charging: Features three isolated outputs, allowing you to charge three separate 24V battery banks at once without the need for an external battery isolator.
-
Smart Protection: Equipped with over-temperature protection and reverse polarity protection to prevent damage to the charger or your batteries.
-
Global Compatibility: The universal AC input allows the unit to work with shore power in almost any country (50/60Hz).
-

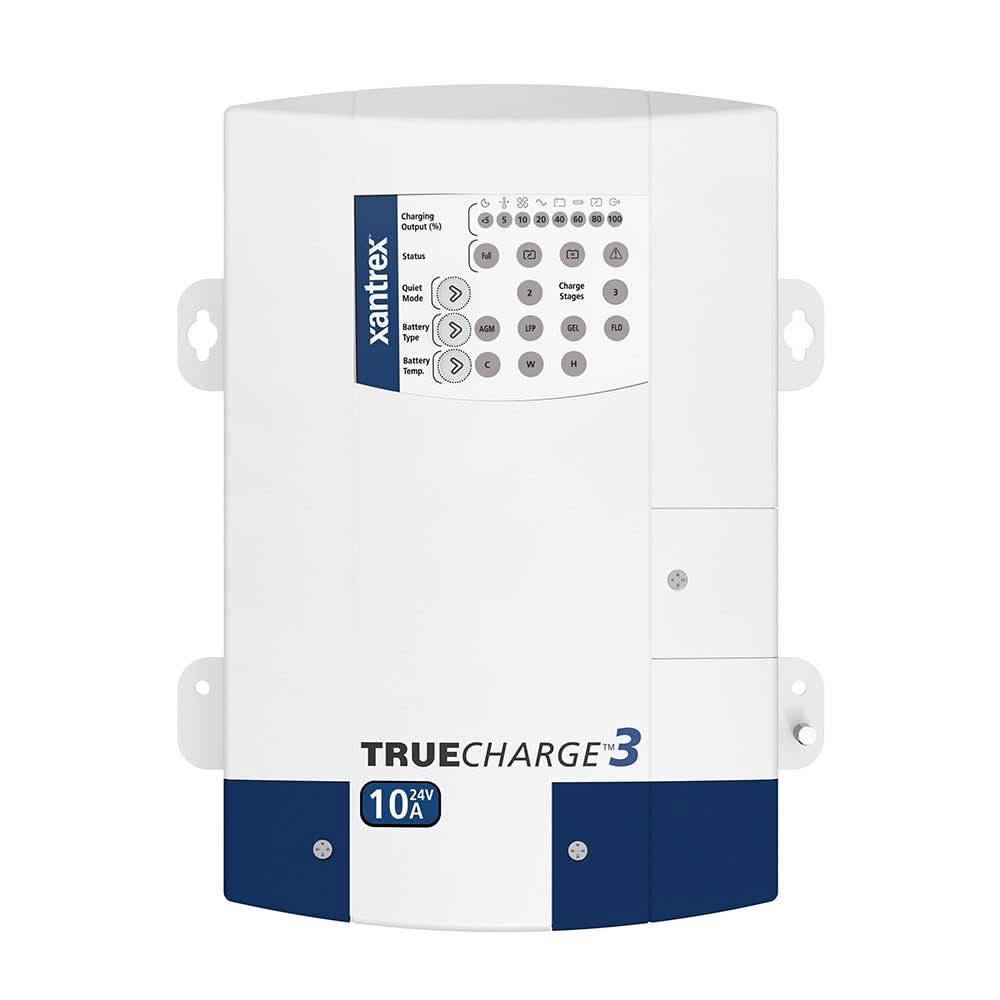

User Interface: Includes an easy-to-read LED display that shows the charging status and current battery level for each bank.
Technical Specifications
This charger is engineered for 24V systems and supports various battery chemistries, including Lithium-Ion (LFP), AGM, Gel, and Flooded batteries.
-
Output Current: 10 Amps DC
-
Output Voltage: 24 VDC (Nominal)
-
Number of Banks: 3
-
Efficiency: > 80%
-
Operating Temp: -4°F to 158°F (-20°C to 70°C)
-
Certifications: UL1564, UL1236 (including Marine Supplement), and CE marked.
-
Weight: 4.4 lbs (2.0 kg)
Features:
- Microprocessor-controlled, multistage charging algorithms
- Settings for two and three-stage charging
- Battery-equalization feature
- Settings for flooded, gel, AGM, or lithium-ion batteries
- Equipped with parallel stacking (remote panel required)
- Ability to charge batteries drained to extremely low voltage
- Added quiet mode
Protection Features:
- Reverse-battery polarity protection
- Drip-proof design
- DC over-voltage protection
- Over-temperature protection
- Circuit breaker protection
Three-Stage Charging
Multistage charging ensures batteries receive optimum charging, but with minimal wear and tear, regulating the voltage and current delivered to the batteries in three automatic stages:
- Bulk: Replaces 70–80% of the battery’s state-of-charge at the fastest possible rate
- Absorption: Replenishes the remaining 20–30% of charge, bringing the battery to a full charge at a slow, safe rate
- Float: Voltage is reduced and held constant to prevent damage and maintain batteries at a full charge for the remaining 20–30% of charge, bringing the battery to a full charge at a slow, safe rate
Power Factor Corrected (PFC) Charging
Less shore power is required for charging batteries, freeing up more usable AC power for running electrical devices and appliances and reducing the likelihood of tripping shore power breakers.
Electrical Specifications (@ 25 degrees C unless otherwise noted):
- Output Current (nominal): 10 A
- Output Voltage (nominal, depending on settings): Charge 28.4–31.0 Vdc; Float 26.8–27.6 Vdc; 32 Vdc
- DC Output Connections: Three
- AC Input Voltage: 90–265 Vac; 47–63 Hz 120 Vac, 230 Vac, 240 Vac nominal
- Temperature Compensation: Three settings
- Charger Efficiency: > 80%
- Battery Type: Gel, Flooded, AGM, LiFePO4
- Minimum Recommended Battery Bank Size: 20 Ah
General Specifications:
- Operating Temperature Range: 0–60°C (32–140°F)
- Storage Temperature -40–80°C (-40–176°F)

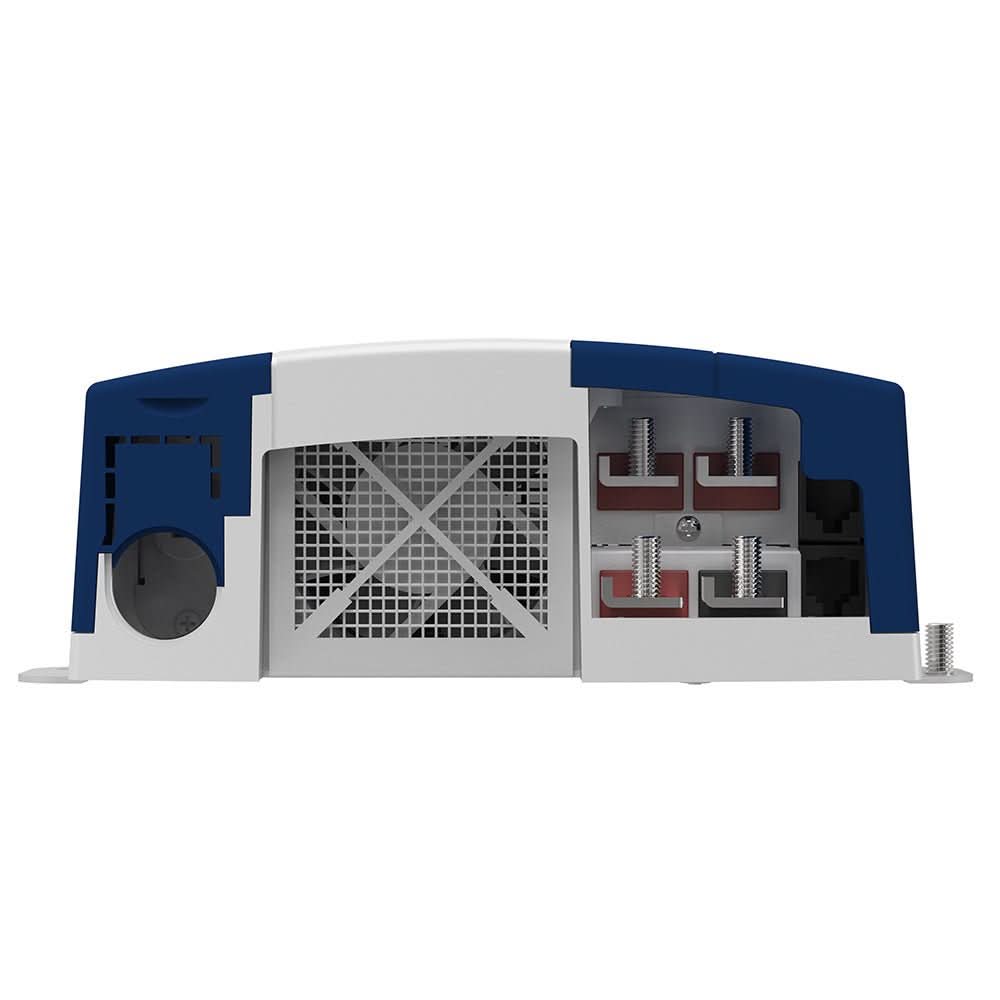

- Battery Connection: Three positive terminals and one negative terminal
- Dimensions (H x W x L): 70 x 170 x 250 mm (2.8 x 6.7 x 9.8”)
- Weight 2.2 kg (4.8 lb)
Regulatory Approvals
Meets CSA 60335-2-29, UL1564, IEC 60335-2-29, IP32 per EN.IEC 60529, FCC Part 158, Canada ICES-003 Class B emissions limits, ABYC A-31, and DOE/CEC energy efficiency compliant.
