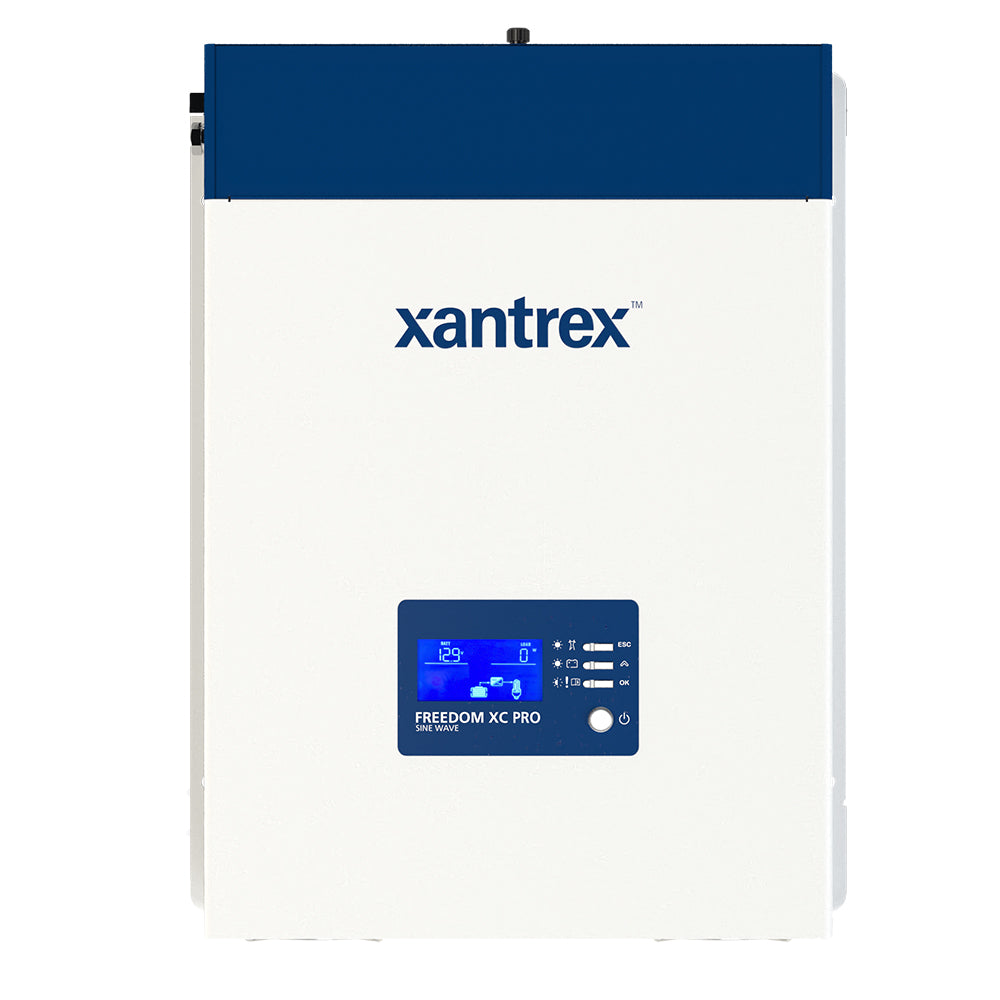

Xantrex Freedom XC PRO Marine 3000W Inverter/Charger - 12V - 818-3015

Xantrex Freedom XC PRO Marine 3000W Inverter/Charger – 12V – 818-3015

The Xantrex Freedom XC PRO Marine 3000W Inverter/Charger delivers high-capacity, true sine wave AC power and intelligent battery charging in a marine-rated package engineered for boats, yachts, and demanding mobile power systems. With 3,000 watts of continuous output and advanced multi-stage charging, it powers sensitive electronics, appliances, and tools while managing battery health with precision.

Built for marine environments, the Freedom XC PRO features corrosion-resistant and ignition-protected construction, making it ideal for saltwater use and harsh conditions. The all-in-one design simplifies installation, and compatibility with optional remote panels allows easy monitoring and control from the helm or cabin.

Whether you’re running entertainment systems, navigation gear, air conditioning, or onboard appliances, the Freedom XC PRO Marine 3000 provides reliable, clean power and robust charging performance in one premium solution.

🔧 Technical Specifications

Inverter

• Inverter Type: True Sine Wave

• Continuous Output Power: 3,000 watts (12V DC → 120V AC)

• Surge Capacity: High surge capability for motor and compressor loads

• Output Frequency: 60 Hz

• Output Voltage: 120 VAC

Battery Charger

• Charger Type: Multi-stage smart charger

• Battery Compatibility: Flooded, AGM, Gel

• Charging Stages: Bulk, Absorption, Float

• Power Factor Corrected: Yes

System & Connectivity

• AC Input: 120 VAC, 60 Hz

• Built-in Automatic Transfer Switch: Yes

• Power Sharing / Load Support: Yes

• Remote Panel Compatible: Optional Freedom XC remote panel

Marine & Environmental

• Marine Rated: Yes

• Ignition Protection: Yes

• Operating Temperature Range: 32°F to 122°F (0°C to 50°C)

• Corrosion-Resistant Construction: Yes

Physical

• Mounting: Bulkhead mount

• Color: Black

Certifications

• UL Listed

• ABYC/Marine ignition protection

Warranty

• 1-Year Manufacturer Warranty

⭐ Key Features

• 3,000W continuous true sine wave AC output for sensitive electronics

• Integrated multi-stage smart battery charger

• Marine-rated, corrosion-resistant, ignition-protected design

• Built-in automatic transfer switch for seamless AC source switching

• Supports high surge loads for compressors and motor-driven equipment

• Compatible with optional remote monitoring/control panel

• Ideal for boats, yachts, and marine electrical systems

Features:

• Extended Surge Rating: Surges to 2X continuous power for 5 seconds for motor loads
• True Sine Wave AC Power: For the operation of sensitive and motor loads
• Ignition Control: Feature to turn the inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
• Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
• Programmable AC Under-Voltage (85-110VAC) Shutdown: Feature ideal to operate under weak shore power or generator input
• Built-in 50A AC Transfer Relay (3KW model): Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power

Built-In Charger Features:

• Power Factor Corrected Multi-Stage Charging: Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances and reduces the likelihood of tripping shorepower breakers
• Programmable: Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V
• Battery Equalization: Maximizes flooded battery life
• Dead Battery Charging Down to 0 Vdc
• Power Share: Prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting
• Easily configurable settings to charge any lithium-ion battery

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Manufacturer : Xantrex
Manufacturer Part No : 818-3015
