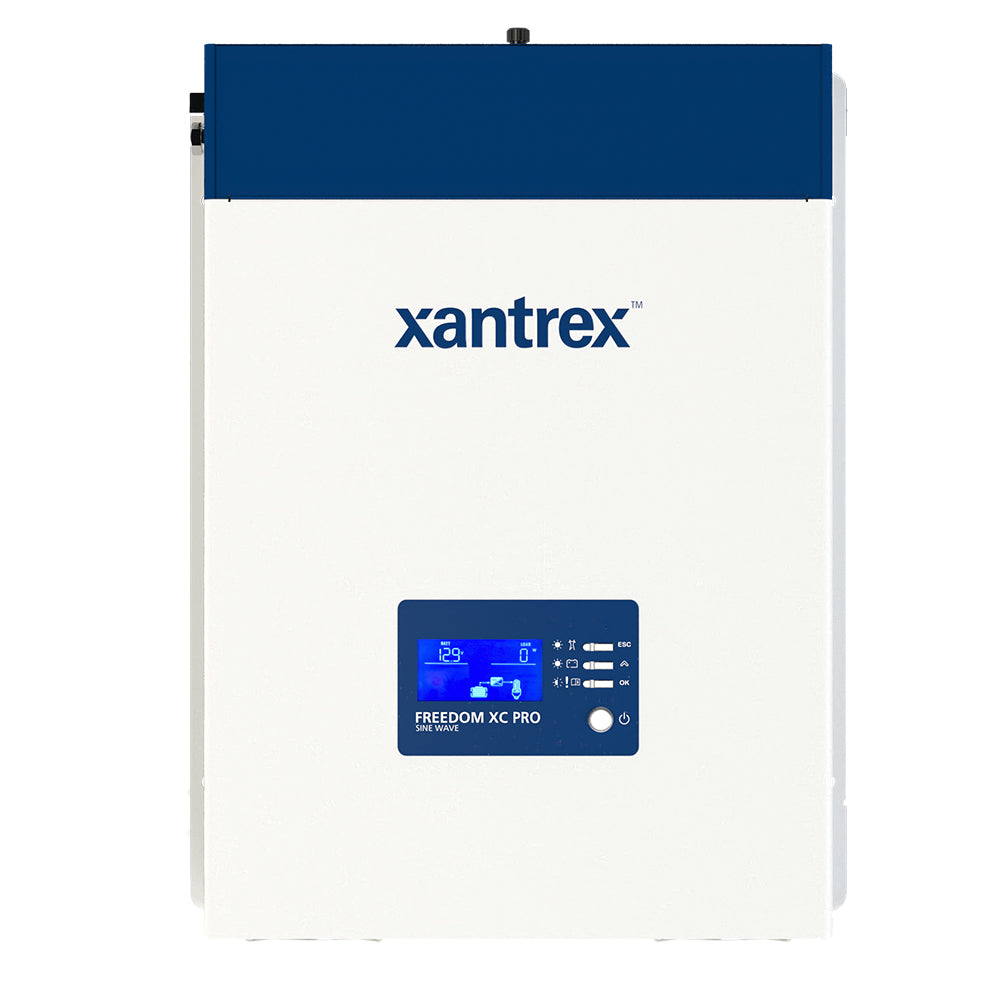

Xantrex Freedom XC PRO Marine 2000W Inverter/Charger - 12V - 818-2015

Xantrex Freedom XC PRO Marine 2000W Inverter/Charger – 12V – 818-2015

The Xantrex Freedom XC PRO Marine 2000W Inverter/Charger is a premium, marine-rated power solution engineered for reliable onboard AC power and fast battery charging. Delivering 2000 watts of pure sine wave output, it safely powers sensitive electronics while providing high-performance battery charging for demanding marine environments.

Built specifically for marine applications, the Freedom XC PRO features corrosion-resistant construction, marine ignition protection, and advanced power management. Its integrated inverter/charger design reduces installation complexity while delivering dependable power for boats, yachts, and commercial marine vessels.

With intelligent multi-stage charging, power sharing, and remote monitoring capability, the Freedom XC PRO Marine 2000W is ideal for users who demand clean power, durability, and efficiency on the water.

🔧 Technical Specifications

Inverter

• Inverter Type: True sine wave

• Continuous Output Power: 2000 watts

• DC Input Voltage: 12 VDC

• AC Output Voltage: 120 VAC

• Output Frequency: 60 Hz

• Surge Capacity: High surge capability for motor loads

Charger

• Charger Type: Multi-stage smart battery charger

• Battery Compatibility: Flooded, AGM, Gel

• Charging Stages: Bulk, absorption, float

• Power Factor Corrected: Yes

Electrical / System

• AC Input: 120 VAC, 60 Hz

• Transfer Switch: Built-in

• Power Sharing: Yes

• Remote Panel Compatibility: Optional Freedom XC remote

Environmental

• Marine Rated: Yes

• Ignition Protected: Yes

• Operating Temperature: 32°F to 122°F (0°C to 50°C)

Physical

• Mounting: Bulkhead

• Construction: Corrosion-resistant marine-grade materials

• Color: Black

Certifications

• UL listed

• ABYC compliant

• Marine ignition protection

Warranty

• 1-Year Manufacturer Warranty

⭐ Key Features

• 2000W true sine wave inverter/charger for marine use

• Clean AC power for sensitive electronics

• Integrated inverter and charger in one compact unit

• Marine-rated, ignition-protected construction

• Multi-stage smart battery charging

• Built-in transfer switch and power sharing

• Compatible with optional Freedom XC remote panel

• Ideal for boats, yachts, and marine power systems

Features:

• Extended Surge Rating: Surges to 2X continuous power for 5 seconds for motor loads
• True Sine Wave AC Power: For the operation of sensitive and motor loads
• Ignition Control: Feature to turn the inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
• Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
• Programmable AC Under-Voltage (85-110VAC) Shutdown: Feature ideal to operate under weak shore power or generator input
• Built-in 50A AC Transfer Relay (3KW model): Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power

Built-In Charger Features:

• Power Factor Corrected Multi-Stage Charging: Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances and reduces the likelihood of tripping shorepower breakers
• Programmable: Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V
• Battery Equalization: Maximizes flooded battery life
• Dead Battery Charging Down to 0 Vdc
• Power Share: Prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting
• Easily configurable settings to charge any lithium-ion battery

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.


Manufacturer : Xantrex
Manufacturer Part No : 818-2015
UPC : 715535912673
