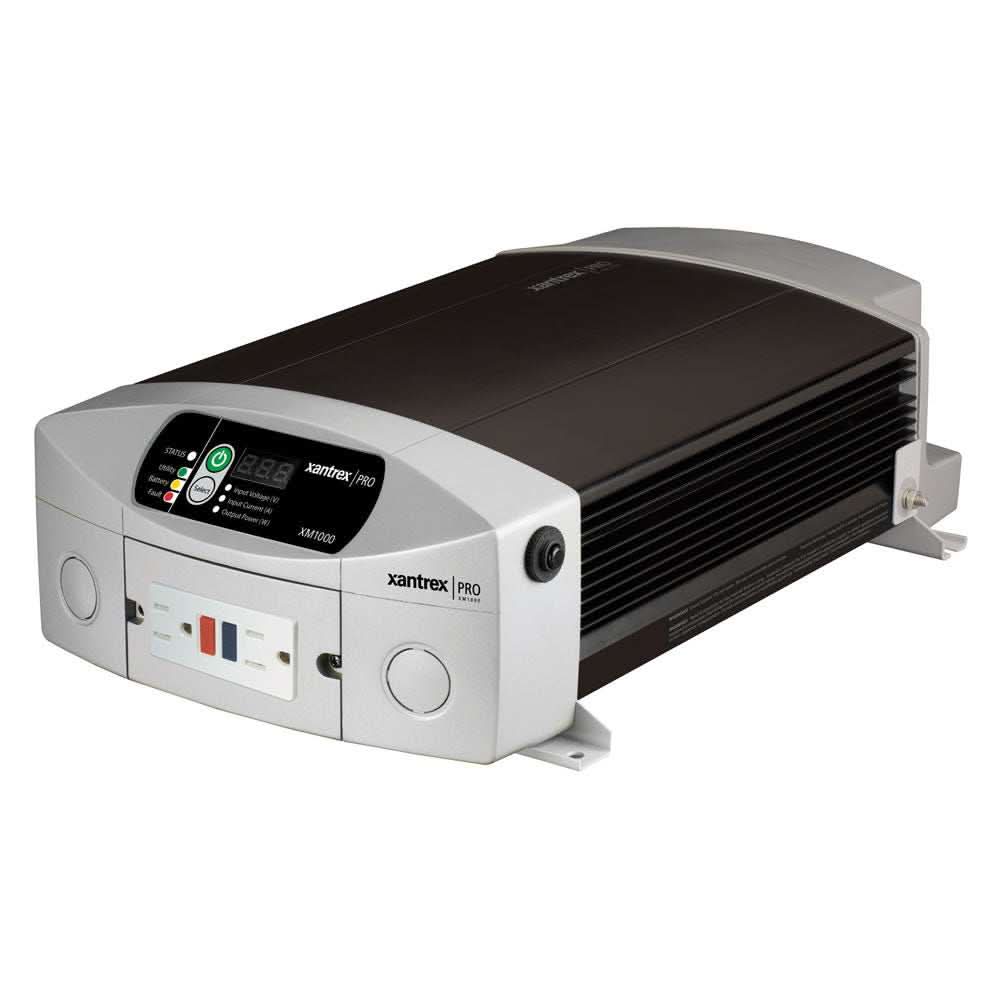

Xantrex XM1000 Pro Series Inverter - 806-1010

Xantrex XM1000 Pro Series Power Inverter – 1000W – 806-1010

The Xantrex XM1000 Pro Series Inverter (806-1010) delivers dependable mobile AC power from a 12-volt DC battery system, making it ideal for marine, RV, truck, van, and worksite applications. With 1,000 watts of continuous power and a strong surge capability, the XM1000 easily powers tools, appliances, and everyday electronics while on the move or off the grid.

Designed for durability and ease of use, this inverter features modified sine wave output, dual AC outlets, and a rugged housing built to withstand demanding environments. Integrated safety protections help safeguard both the inverter and connected devices, while its compact footprint allows for flexible installation in tight spaces.

Reliable, efficient, and cost-effective, the Xantrex XM1000 Pro Series inverter is a trusted solution for anyone needing portable or onboard AC power.

🔧 Technical Specifications

Electrical

• Inverter Type: Modified Sine Wave

• Continuous Power Output: 1,000 watts

• Surge Power: 2,000 watts

• DC Input Voltage: 12 VDC

• AC Output Voltage: 120 VAC ±5%

• Output Frequency: 60 Hz

• Maximum AC Output Current: 8.3 amps

• Peak Efficiency: Up to 90%

• No-Load Power Draw: Low idle consumption

Input & Output

• AC Receptacles: Dual 120V AC outlets

• DC Connection: Battery cables

• Remote On/Off: Optional remote switch compatible

Protection & Safety

• Overload protection

• Short-circuit protection

• Over-temperature shutdown

• Low battery voltage alarm and shutdown

• Reverse polarity protection

Environmental

• Operating Temperature Range: 32°F to 104°F (0°C to 40°C)

• Cooling: Temperature-controlled fan

Physical

• Dimensions (L × W × H): Approx. 13.0″ × 7.0″ × 3.5″

• Weight: Approx. 6.5 lb (3.0 kg)

• Mounting: Horizontal or vertical

Certifications

• UL Listed

• CSA Certified

• FCC Class B

Warranty

• 1-Year Manufacturer Warranty

⭐ Key Features

• 1,000W continuous power inverter for mobile applications

• Modified sine wave output for tools and appliances

• High surge capacity for motor-driven loads

• Compact, rugged Pro Series design

• Dual AC outlets for flexible power distribution

• Multiple built-in safety protections

Performance inverters designed for RVs and boats

Designed for RV and marine electrical systems that already have a battery charger or generator installed, Xantrex PRO Inverters deliver modified sine wave power for small appliances, TVs, and other onboard electronics from a battery bank.

Description

The Xantrex PRO Series Inverters are the perfect complement to generators when shore power is unavailable, to quietly and efficiently provide household power when needed. The PRO Series design is both user friendly and versatile. These inverters feature a detachable, digital remote control to display precise inverter, AC source and battery status information from one convenient location. A built-in transfer switch automatically detects when generator or shore power status changes to ensure power is always available.

The 1000W is designed for demanding RV and marine conditions. They meet FCC Class B regulations to eliminate interference potential with other electronics, while UL 458 certification means they meet strict RV and marine safety standards. Versatile enough to be mounted either horizontally or vertically, these inverters can be easily installed to fit into any compartment. Conformal coated boards also minimize the chance of problems from moist operating conditions.

Performance Features

• Inverter easily powers TVs, small appliances, and other electronics

• Built-in 15A circuit breaker to protect GFCI connected loads

• Up to 25A pass through for hardwired loads

• Digital remote control displays power output, AC source and battery voltage

• Detachable remote control can be mounted wherever convenient

• Conformal coated electronics provide moisture resistance

• Designed to be hard-wired using a terminal strip or by connecting AC through a GFCI receptacle (included)

Protection Features

• Battery over-voltage and under-voltage protection

• Over temperature shutdown

• Automatic overload protection

• Short-circuit protection

• Ground fault protection

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer : Xantrex
Manufacturer Part No : 806-1010
UPC : 715535113520
