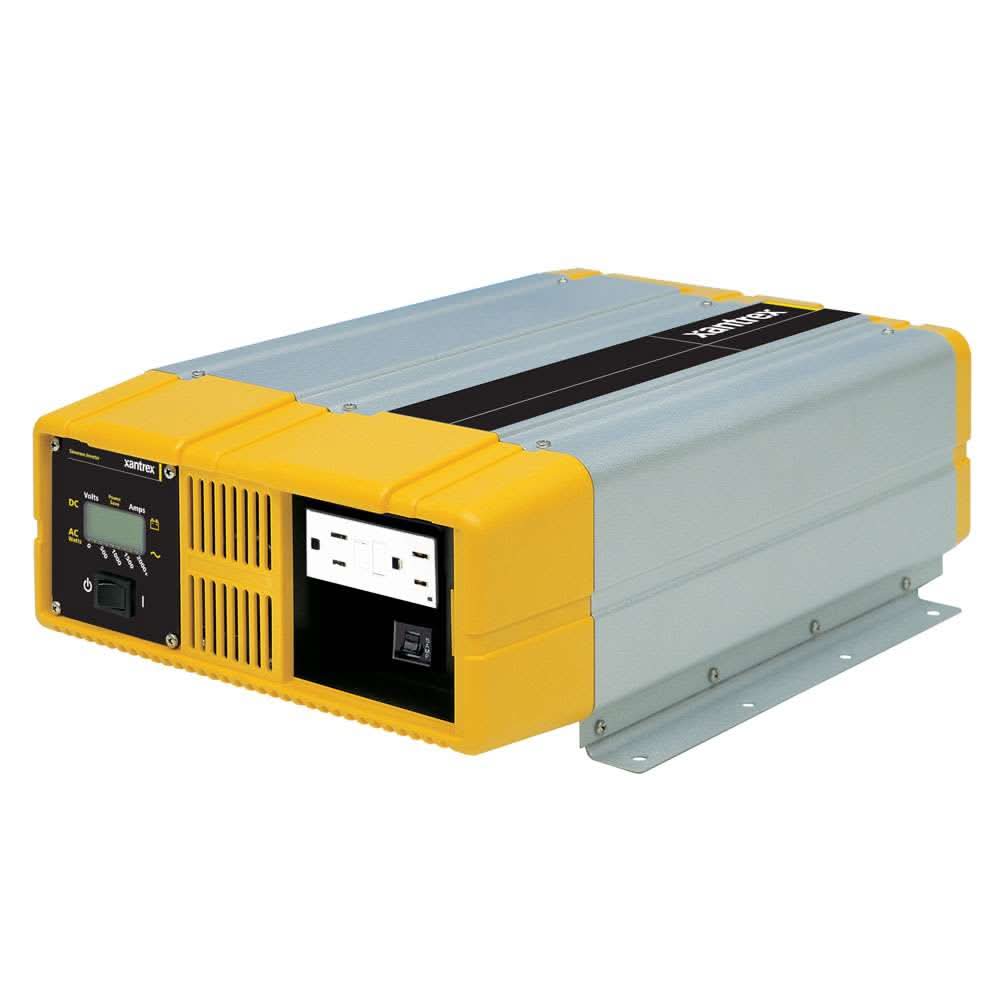

Xantrex Statpower Prosine 1800 GFCI - 24v - 806-1850
The Xantrex Prosine 1800 (Part #806-1850) is a high-performance, 24-volt pure sine wave inverter designed for heavy-duty marine and industrial applications. This specific model features a built-in GFCI (Ground Fault Circuit Interrupter) outlet, making it ideal for environments where moisture is present and safety is a priority.
Product Overview
The Xantrex Prosine 1800 GFCI - 24V delivers 1800 watts of continuous power, providing a "clean" electrical signal identical to the power from your home outlets. This ensures that sensitive electronics—such as laptops, medical equipment, and high-end audio systems—operate without interference or damage.
-
Ultra-Clean Power: Pure sine wave output with less than 3% total harmonic distortion, protecting your most sensitive gear.
-
High Surge Capability: Offers a 2900-watt surge rating, allowing it to start difficult motorized loads like small refrigerators or power tools.
-
Built-in Safety: The integrated GFCI AC outlet provides essential protection against electrical shock in wet environments.
-
Power Saving Mode: Draws only 1.5 watts when in power save mode, preserving your battery bank when no loads are detected.
Technical Specifications
This 24V unit is engineered for efficiency and durability in professional-grade mobile power systems.
-
Continuous Power: 1800 Watts
-
Surge Rating (5 seconds): 2900 Watts
-
Input Voltage: 24 VDC (20 – 32 VDC range)
-
Output Voltage: 120 VAC / 60 Hz
-
Peak Efficiency: 90%
-
Output Waveform: Pure Sine Wave
-
Display: Removable LCD panel for remote monitoring and control
-
Protection: Over-voltage, under-voltage, over-temperature, and short circuit protection
-
Operating Temperature: 32°F to 140°F (0°C to 60°C)
Provides 1800 watts of sine wave AC power from a DC source
Offering superior quality true sine wave output, the Prosine 1800 stand-alone inverter is ideally suited for electrical systems that already have a quality multistage battery charger. Designed for recreational and industrial applications, their 120-volt, 60 Hz AC power output is capable of handling both heavy duty and smaller, multiple AC loads. Prosine inverters include a backlit LCD display panel, which can be mounted remotely.
Product Features
- 1800 watt inverters (2900 watt surge capability)
- True sine wave AC output (crystal controlled)
- Removable LCD display can be mounted remotely for control and monitoring
- Unique DC terminals offer 180-degree connections for easy installation in tight places
- Powersave mode draws only 1.5 watts under no load
- Two year warranty
Protection Features
- Over temperature shutdown and automatic overload protection
- Over voltage and under voltage protection
- Short circuit and AC backfeed protection
With less than 3% total harmonic distortion, Prosine 1000 and 1800 inverters deliver true sine wave output that is identical to AC power supplied by your utility. This clean output makes Prosine inverters ideal for handling sensitive loads and improves AC equipment performance. Expect trouble-free true sine wave electricity for televisions, audio systems, variable speed tools, and more.
Light and compact
Prosine inverters are lighter and more compact than other inverters with similar power ratings because they use high-frequency switching technology in the power conversion process.
WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer : Xantrex
Manufacturer Part No : 806-1850
UPC : 715535618506
