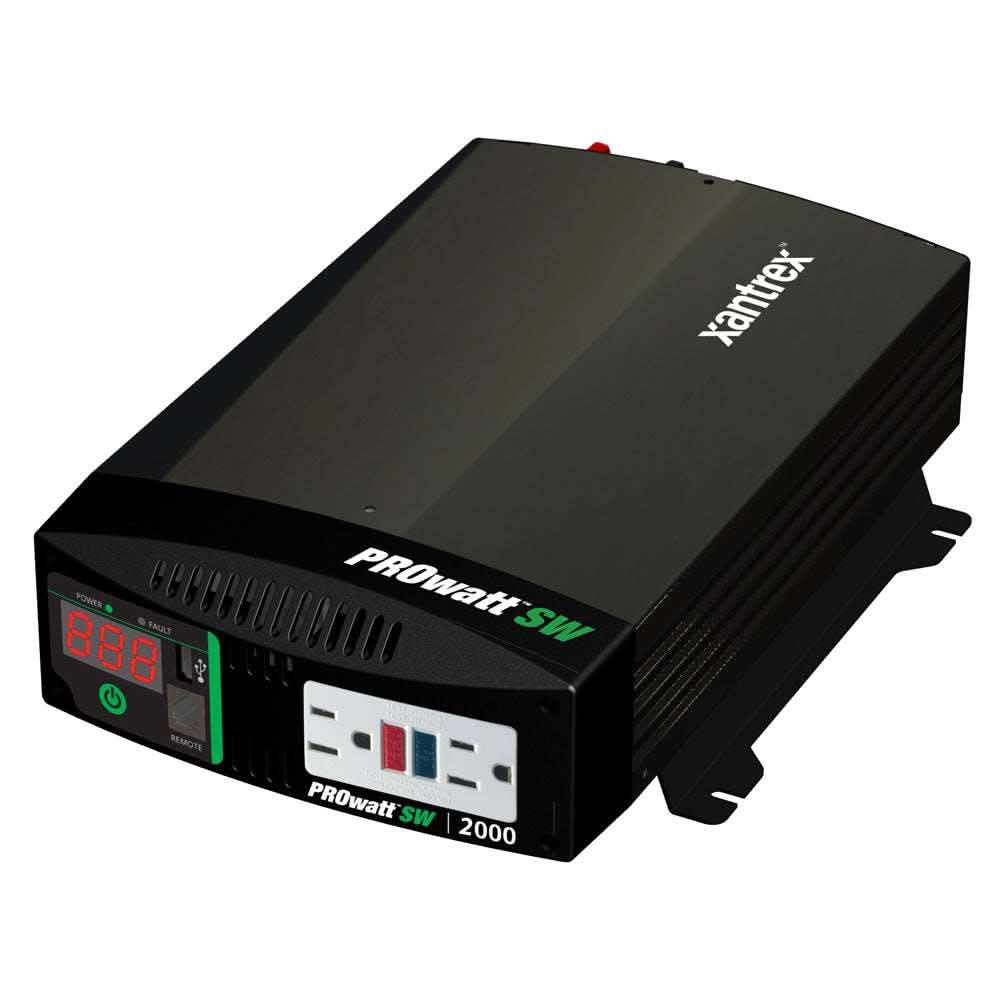

Xantrex Prowatt SW2000 2000W True Sinewave Inverter - 806-1220

The Xantrex PROwatt SW2000 (806-1220) is a high-performance, 12V pure sine wave inverter designed to provide reliable AC power in mobile environments. It is a popular choice for RV, marine, and commercial truck applications because it provides "utility-grade" power that is safe for sensitive electronics.

Product Description

The Xantrex PROwatt SW2000 is engineered to deliver 1800W of continuous power with a 3000W surge capacity. This high surge rating is critical for starting motor-driven appliances like microwaves, refrigerators, and variable-speed power tools. Its pure sine wave output ensures that clocks run accurately and audio/video equipment operates without the "buzzing" common in cheaper modified sine wave inverters.

• Pristine Power Quality: True sine wave output with less than 5% total harmonic distortion (THD) protects your most sensitive digital gear.

• Integrated Monitoring: A built-in digital display provides real-time data on battery voltage, AC output power, and diagnostic error codes.

• Enhanced Safety: Equipped with dual GFCI AC outlets and meeting stringent UL458 regulatory standards (including the marine supplement).

• Convenience Features: Includes a built-in USB port (5V/500mA) for charging mobile devices and a remote port for an optional on/off switch.

Technical Specifications

• Continuous Power: 1800 Watts

• Surge Power (Peak): 3000 Watts

• Input Voltage: 12 VDC (10.5 – 15.5 VDC range)

• Output Voltage: 120 VAC / 60 Hz

• Peak Efficiency: 90%

• Idle Draw: < 0.8 Amps (no-load current)

• Protection: Low voltage alarm/shutdown, over-voltage, overload, and over-temperature protection.

• Dimensions: 3.9" H x 11.8" W x 13.7" L

• Weight: 10.7 lbs (4.9 kg)

Key Considerations

• Installation: This unit requires hardwire DC connections. For a safe 2000W-class installation, it is recommended to use a 250A DC fuse.

• Ignition Lockout: When used with the PROwatt SW Remote Panel, you can enable an ignition lockout feature that automatically shuts down the inverter when the vehicle is turned off to prevent battery drain.

PURE POWER. TRUE VALUE.

The PROwatt SW offers affordable, quality pure sine wave inverter solution for both recreational andcommercial applications. PROwatt SW provides the necessary current to startup demanding electrical loads. In addition to dual GFCI AC receptacles, the PROwatt SW Series include an innovative USB connection for providing power to most USB chargeable devices. The PROwatt SW Series offers many safety features not found in similar inverters. When equipped with a remote control, the PROwatt SW Series has the ability to provide automatic ignition lockout shutting down the inverter's output when the vehicle's ignition is not engaged.

The compact, easy-to-use and easy-to-install design of the PROwatt SW Series makes it ideal for use in commercial truck, RV and marine applications. With True Sine-Wave output, the PROwatt SW Series can provide power for all types of electrical loads including, variable speed power tools, advanced electrical appliances, microwaves and much more. The PROwatt SW provides household AC power anywhere.
