What are the main benefits of choosing the Xantrex PROsine 1800/24/120 Hardwired Inverter for my application?

The Xantrex PROsine 1800/24/120 offers 1800 watts of continuous pure sine wave power, ideal for sensitive electronics. Its high efficiency, compact design, and hardwire connectivity make it perfect for industrial and marine setups where reliable, clean power is critical.

How does the hardwire connection of the Xantrex PROsine 1800 improve installation and safety?

The hardwire AC terminal strip provides a secure, permanent connection directly to your electrical panel, minimizing loose connections and enhancing safety. This setup is ideal for permanent installations in vehicles and boats that already use transfer switches or distribution centers.

Can the Xantrex PROsine 1800 handle starting surges for appliances like microwaves or air conditioners?

Yes, the inverter has a surge rating of 2900 watts for 5 seconds, making it capable of handling motor-heavy appliances such as microwaves and small air conditioners, ensuring reliable operation during startup surges.

Popular right now
Lots of people have looked at this recently

Xantrex PROsine 1800/24/120 Hard Wired Inverter - 806-1851

Name: Xantrex PROsine 1800/24/120 Hard Wired Inverter - 806-1851
Brand: Xantrex
SKU: 44791
Price: 1634.99 USD
Availability: InStock

$1,634.99 ~~$2,558.12~~

SKU: 44791

Manufacturer Part #: 806-1851

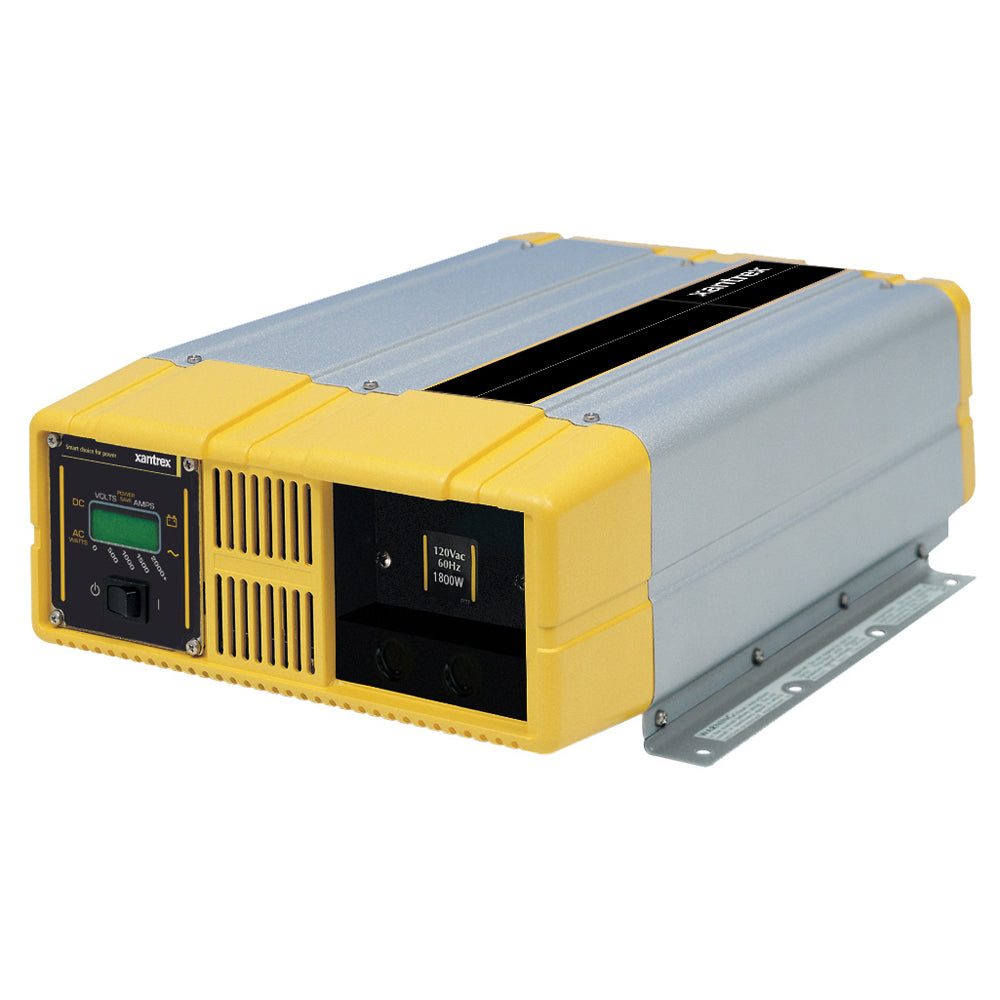

Xantrex PROsine 1800/24/120 Hard Wired Inverter - 806-1851

The Xantrex PROsine 1800 (Part #806-1851) is a high-performance, 24-volt DC to 120-volt AC power inverter designed for heavy-duty industrial and marine applications. This specific "Hardwire" version is built for permanent installation into a vehicle or vessel's electrical system that already features a dedicated transfer switch or power distribution center.

Product Overview

The Xantrex PROsine 1800/24 Hardwire provides 1800 watts of continuous power with an ultra-clean True Sine Wave output. With less than 3% Total Harmonic Distortion (THD), it delivers power identical to what you get from a home utility outlet, making it safe for sensitive electronics like medical devices, high-end audio equipment, and variable-speed power tools.

Hardwire Connectivity: Unlike the GFCI outlet models, the 806-1851 features an AC hardwire terminal strip, allowing for a secure, permanent connection to your AC breaker panel.
High Efficiency: Utilizes high-frequency switching technology to achieve 90% peak efficiency, resulting in a lighter and more compact design compared to traditional transformer-based inverters.
Removable LCD Display: The backlit digital panel can be detached and remote-mounted (requires an interface kit) to monitor battery voltage, DC amperage, and AC output power from a dashboard.
Powersave Mode: Intelligent power management allows the unit to draw only 1.5 watts while in search mode, preserving your battery bank when no AC loads are active.

Technical Specifications

This 24V model is engineered to handle massive startup surges for motor-heavy appliances like microwaves or small air conditioners.

Continuous Power: 1800 Watts
Surge Rating (5 seconds): 2900 Watts
Input Voltage Range: 20 – 32 VDC
Output Voltage: 120 VAC / 60 Hz (Crystal controlled)
Dimensions: 4.5" H x 11.0" W x 15.4" L
Weight: 16.5 lbs (7.5 kg)
Certifications: CSA/NRTL certified to UL 458 (Marine Supplement) and KKK-A-1822D (Ambulance Standard).

System Integration Note

The 806-1851 model does not include an internal transfer relay. If you need a unit that automatically switches between shore power and inverter power, you would need the PROsine 1800/24 with Transfer Switch (Part #806-1852).

Power Inverters
PROsine 1800

PROsine Inverters deliver true sine wave output that is identical to AC power supplied by your utility. This clean output makes PROsine Inverters ideal for handling sensitive loads, while also improving AC equipment performance. Designed for recreational and industrial applications, expect the best performances from televisions, audio systems, speed tools, and any other electronics where you want nothing but the most optimal performance.

Product Description
Providing 1800 watts of sine wave AC power from a DC source

Offering superior quality true sine wave output, the Prosine 1800 stand-alone power inverters are ideally suited for electrical systems that already have a quality multistage battery charger. Designed for recreational and industrial applications, their 120-volt, 60 Hz AC power output is capable of handling both heavy duty and smaller, multiple AC loads. Prosine inverters include a backlit LCD display panel, which can be mounted remotely.

Product Features:
1800W inverter (2900 watt surge capability)
True sine wave AC output (crystal controlled)
Removable LCD display can be mounted remotely for control and monitoring
Unique DC terminals offer 180-degree connections for easy installation in tight places
Powersave mode draws only 1.5 watts under no load
Two year warranty

Protection Features:
Over temperature shutdown and automatic overload protection
Over voltage and under voltage protection
Short circuit and AC backfeed protection

Options:
Available in 24 volt model
Models available with GFCI AC outlet or AC hardwire terminal strip for permanent installation into an electrical system (optional 15 A transfer switch available with hardwire option)
Remote interface kit for remote mounting of display module
Ultra-clean true sine wave power

With less than 3% total harmonic distortion, Prosine 1800 inverters deliver true sine wave output that is identical to AC power supplied by your utility. This clean output makes Prosine inverters ideal for handling sensitive loads and improves AC equipment performance. Expect trouble-free true sine wave electricity for televisions, audio systems, variable speed tools, and more.

Light and Compact

PROsine power inverters are lighter and more compact than other power inverters with similar power ratings because they use high-frequency switching technology in the power conversion process.
