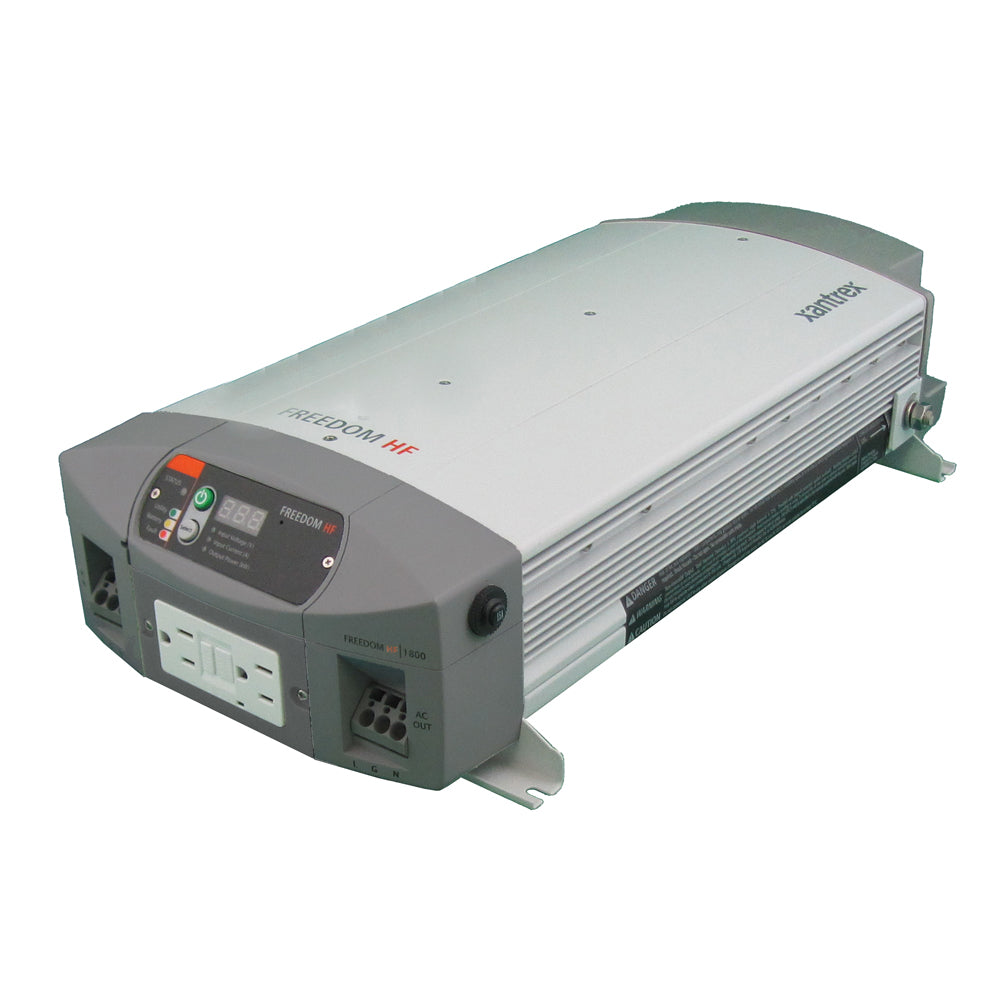

Xantrex Freedom HF 1000 Inverter/Charger 1st Generation - 806-1020

The Xantrex Freedom HF 1000 (Part #806-1020) is a classic "all-in-one" power system that combines a 1000-watt inverter, a 20-amp battery charger, and an automatic transfer switch. Often referred to as a "mobile power system in a box," it is a popular choice for factory installations in RVs and boats due to its reliability and compact footprint.

Product Overview

The Xantrex Freedom HF 1000 utilizes modified sine wave technology, making it a cost-effective solution for running standard household appliances like microwaves, coffee makers, and entertainment systems. Its integrated 3-stage 20A charger ensures your batteries are topped up efficiently whenever shore power is connected.

• Integrated Transfer Switch: Features a 30-amp automatic relay that seamlessly transitions between battery power and shore power, ensuring your devices stay powered without manual switching.

• Easy Installation: Designed with quick-connect AC terminals on both the input and output sides, which simplifies wiring and eliminates the need for messy strain relief clamps.

• Ignition Lockout: A dedicated safety feature that disables the inverter when the vehicle's ignition is turned off, preventing accidental battery drainage while parked.

• Remote Monitoring: Comes with a detachable digital display and a 25-foot cable, allowing you to monitor battery voltage and system status from your dashboard or cabin.

Technical Specifications

This 12V model is built for durability in mobile environments and is ETL certified to UL458 standards.

• Continuous Power: 1000 Watts

• Surge Power: 2000 Watts (Peak)

• Charging Current: 20 Amps DC

• Output Waveform: Modified Sine Wave

• AC Output: Dual GFCI outlets or Hardwire capability

• Battery Compatibility: Settings for Flooded, Gel, and AGM batteries

• Dimensions: 4.2" H x 9.5" W x 15.5" L

• Weight: 10 lbs (4.5 kg)

Modern Alternatives (True Sine Wave)

If you are running sensitive electronics like high-end laptops or medical equipment, you may want to consider the Freedom X or HFS series. These newer models offer True Sine Wave power, which is cleaner and safer for advanced digital devices.

• The Freedom HFS 1000 is a direct upgrade path that provides the same 1000W output but with a cleaner sine wave signal.

• The Freedom X 1000 offers advanced features like Bluetooth monitoring and an extended surge rating for difficult motor loads.
