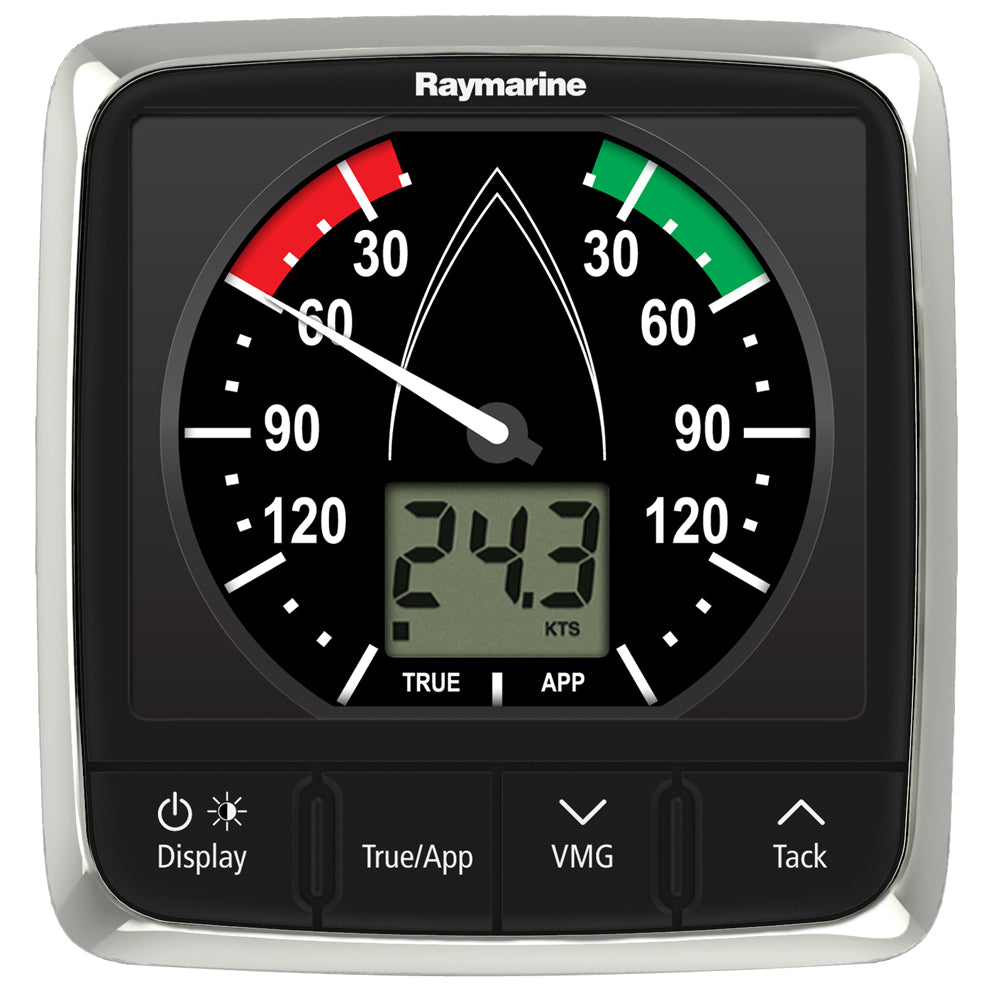

Raymarine i60 Wind Display System - E70061

Raymarine i60 Wind Display System – E70061

The Raymarine i60 Wind Display System (E70061) is a dedicated marine instrument designed to present accurate wind data at a glance. Whether you’re cruising, racing, or navigating coastal waters, the i60 Wind delivers key wind metrics including apparent wind speed and angle, true wind speed and angle, and configurable alarms for headings and wind speed thresholds.

Featuring a high-contrast monochrome LCD with red backlighting, the i60 Wind ensures excellent visibility in all lighting conditions, day or night. With native SeaTalkng compatibility and optional adapter support for NMEA 2000® networks, this system integrates easily into your Raymarine instrument suite or can serve as a standalone display. Designed to match the footprint of legacy ST60 instruments, the Raymarine i60 Wind Display System is a reliable and intuitive solution for real-time wind monitoring on sailboats and powerboats alike.

🌊 Key Features

• Displays apparent and true wind speed and angle

• High-contrast display with red backlighting for day and night readability

• Seamless integration with SeaTalkng and compatible with NMEA 2000 networks

• Configurable wind angle and speed alarms

• Designed to match the footprint of legacy ST60 wind instruments for easy upgrades

• Compact and energy-efficient design for helm installation

📊 Technical Specifications — Raymarine i60 Wind Display System (E70061)

📟 Display & Wind Metrics

• Instrument Type: Dedicated wind display

• Displayed Data:

  • Apparent Wind Speed (AWS)

  • Apparent Wind Angle (AWA)

  • True Wind Speed (TWS) (when connected to compatible directional sensors)

  • True Wind Angle (TWA)

  • Wind alarms and threshold alerts

• Display Format: High-contrast monochrome LCD with oversized digits

• Backlighting: Red backlight for enhanced visibility in sunlight and low light

⚡ Power & Electrical

• Supply Voltage: 12 V DC (marine electrical standard)

• Operating Voltage Range: 10 V to 16 V DC

• Current Draw: ~45–65 mA (display only)

• Maximum Consumption: Up to ~200 mA (with sensors)

• Power Consumption: < 1 W typical

🌐 Networking & Connectivity

• Native Protocol: SeaTalkng network compatibility

• NMEA Compatibility: Adapter support for NMEA 2000®

• Network Ports: 2 × SeaTalkng ports for daisy-chain networking

• Transducer Support: Designed to receive wind data from compatible wind transducers (sensory input)

📏 Physical & Environmental

• Display Dimensions: Approx. 110 mm × 115 mm × 44 mm (4.33″ × 4.53″ × 1.73″)

• Mount Style: Surface mount with included gasket and hardware

• Waterproof Rating: IPx6 marine seal rating for splash and spray resistance

• Operating Temperature: –20 °C to +55 °C (–4 °F to +131 °F)

• Storage Temperature: –30 °C to +70 °C (–22 °F to +158 °F)

• Relative Humidity: Up to 93 %

⚓ Installation

• Mounting: Surface mount installation

• Footprint Compatibility: Designed to match the footprint of older ST60 wind instruments for easy replacement

📦 In the Box

• i60 Wind instrument display

• SeaTalkng spur cable

• Surface mount gasket and hardware

• Blanking plug and documentation
