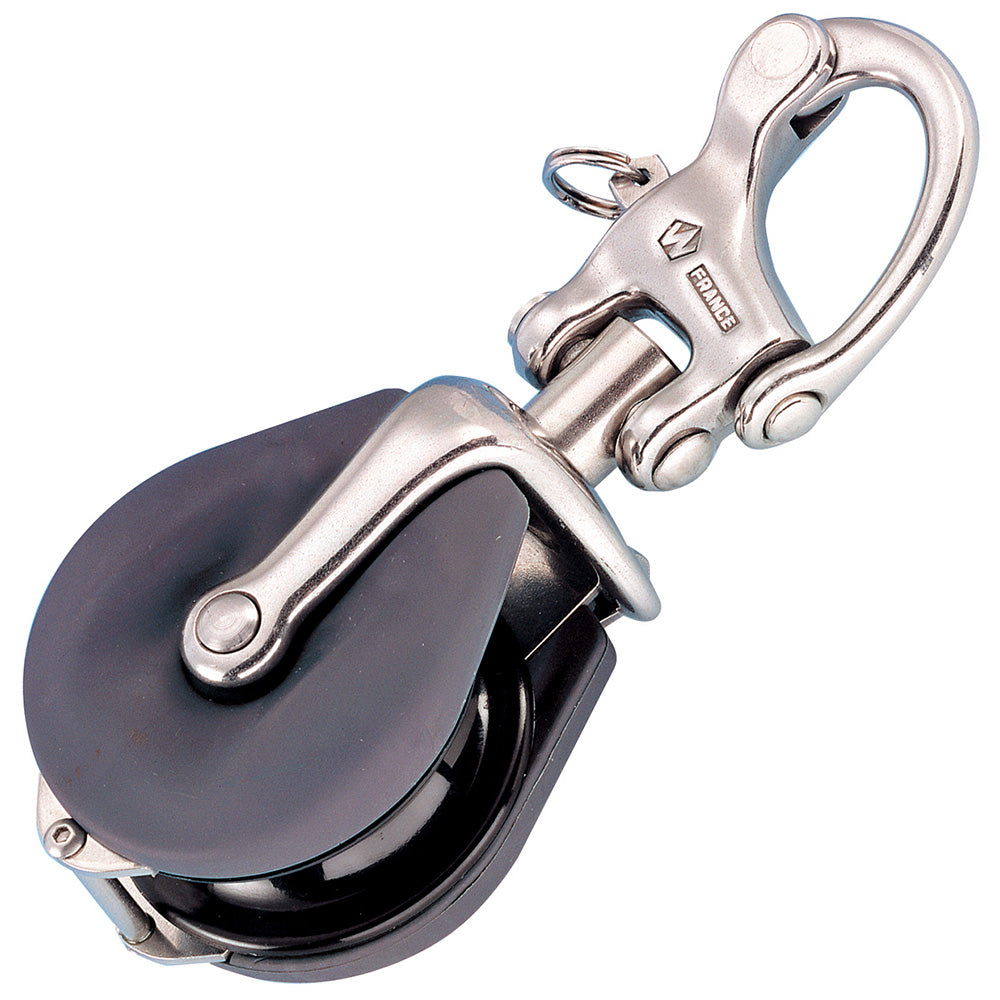

Wichard Snatch Block w/Snap Shackle - Max Rope Size 12mm (15/32") - 34500

Wichard Snatch Block w/Snap Shackle - Max Rope Size 12mm (15/32") -

Snatch Block with Snap Shackle - Max Rope Size 12mm (15/32")

Features:

• Free rotation thanks to snap shackle
• Very strong closing system
• Easy opening by simply pulling on the plunger pin
• Shock and scratch-resistant thanks to the elastomer molded cheeks

Applications:

• Changing sheets
• Spinnaker sheet deflector blocks

Materials:

• HR 17.4 PH forged stainless steel arm
• Elastomer molded cheeks
• Composite sheave

Specifications:

• Rope size: (inch) 15/32" / (mm) 12
• Length: (inch) 5 45/64" / (mm) 145
• Width: (inch) 2 21/64" / (mm) 59
• Thickness: (inch) 1 11/16" / (mm) 43
• Working Load: (lb) 1580 / (kg) 720
• Breaking Load: (lb) 2860 / (kg) 1300
• Weight: (lb) 0.56 / (g) 254

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Product : WICHARD SNATCH BLOCK SINGLE SWIVEL HEAD
Manufacturer : Wichard Marine
Manufacturer Part No : 34500
Product : WICHARD SNATCH BLOCK SINGLE SWIVEL HEAD
