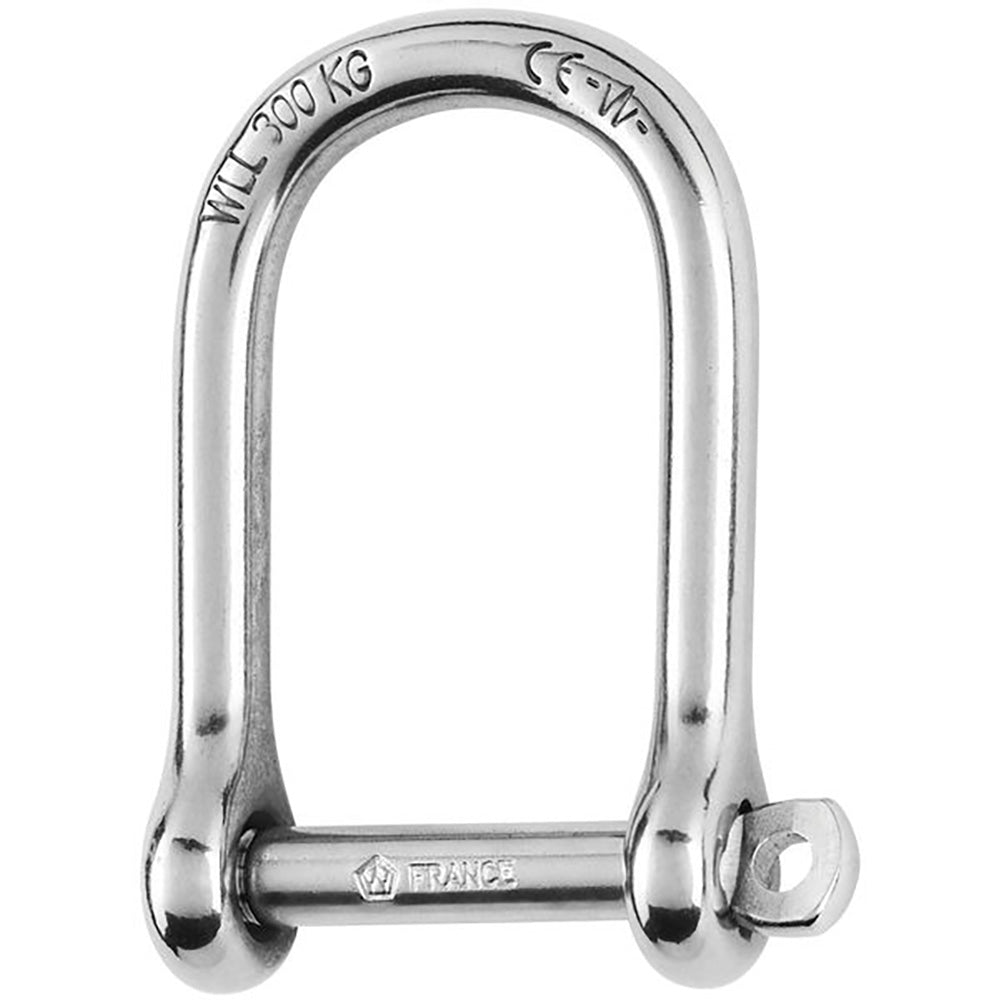

Self-Locking Large Opening Shackle - 10mm Diameter - 13/32"

Features:

• Self-locking large shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e…)
• CE marking

Applications:

• For applications where a large opening shackle is required

Specifications:

• Materials: 316 stainless steel grade
• Working load: (lb) 2820 / (kg) 1280
• WLL: (lb) 1760 / (kg) 800
• Breaking load: (lb) 8810 / (kg) 4000
• Weight: (lb) 0.28 / (kg) 4000

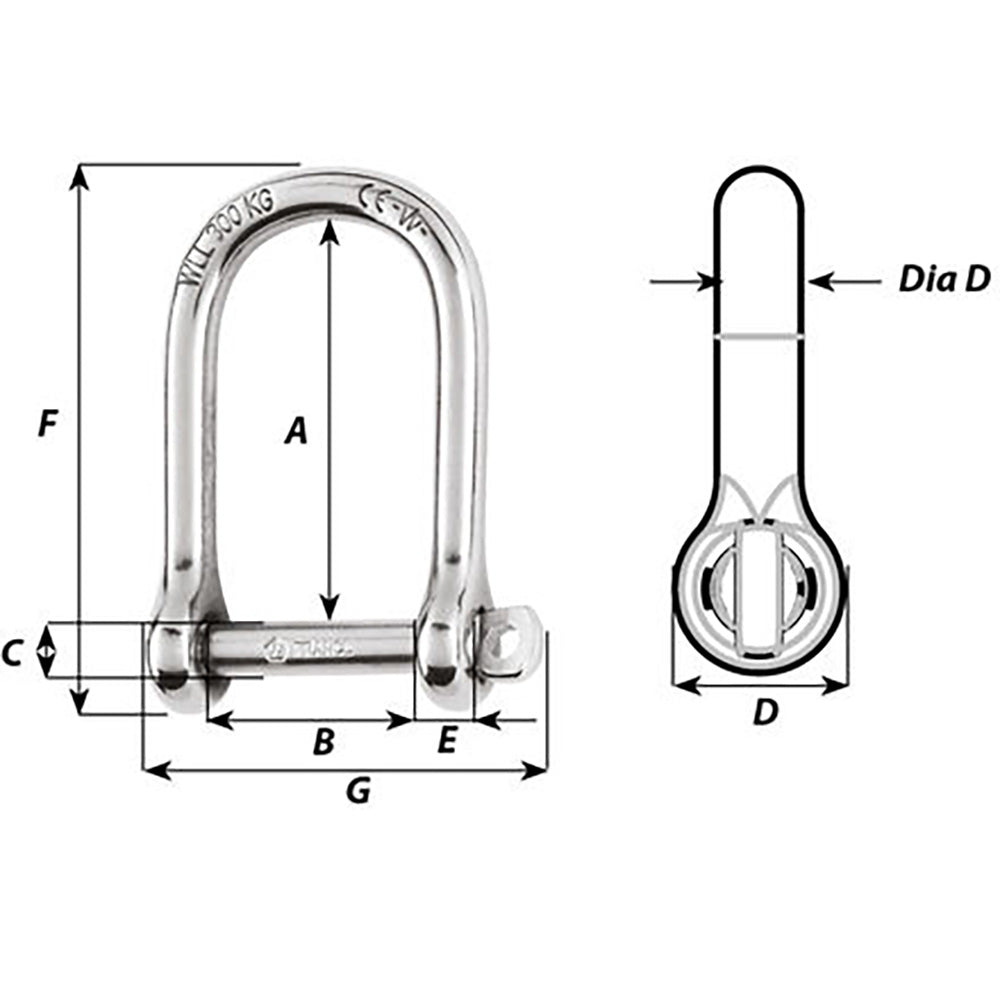

Dimensions:

• A: (inch) 2 53/64" / (mm) 72
• B: (inch) 1 37/64" / (mm) 40
• C; (inch) 25/64" / (mm) 10
• D: (inch) 53/64" / (mm) 21
• D diameter: (inch) 25/64" / (mm) 10
• E: (inch) 25/64" / (mm) 10
• G: (inch) 2 51/64" / (mm) 71

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
  WLL = Breaking load / 5

*Sold as an Individual

Product : WICHARD 13/32 SELF LOCKING LARGE OPENING SHACKLE
Manufacturer : Wichard Marine
Manufacturer Part No : 01265
