Wichard FRX15 Friction Ring - 15mm (19/32") - FRX15 / 21510

Wichard FRX15 Friction Ring - 15mm (19/32") -

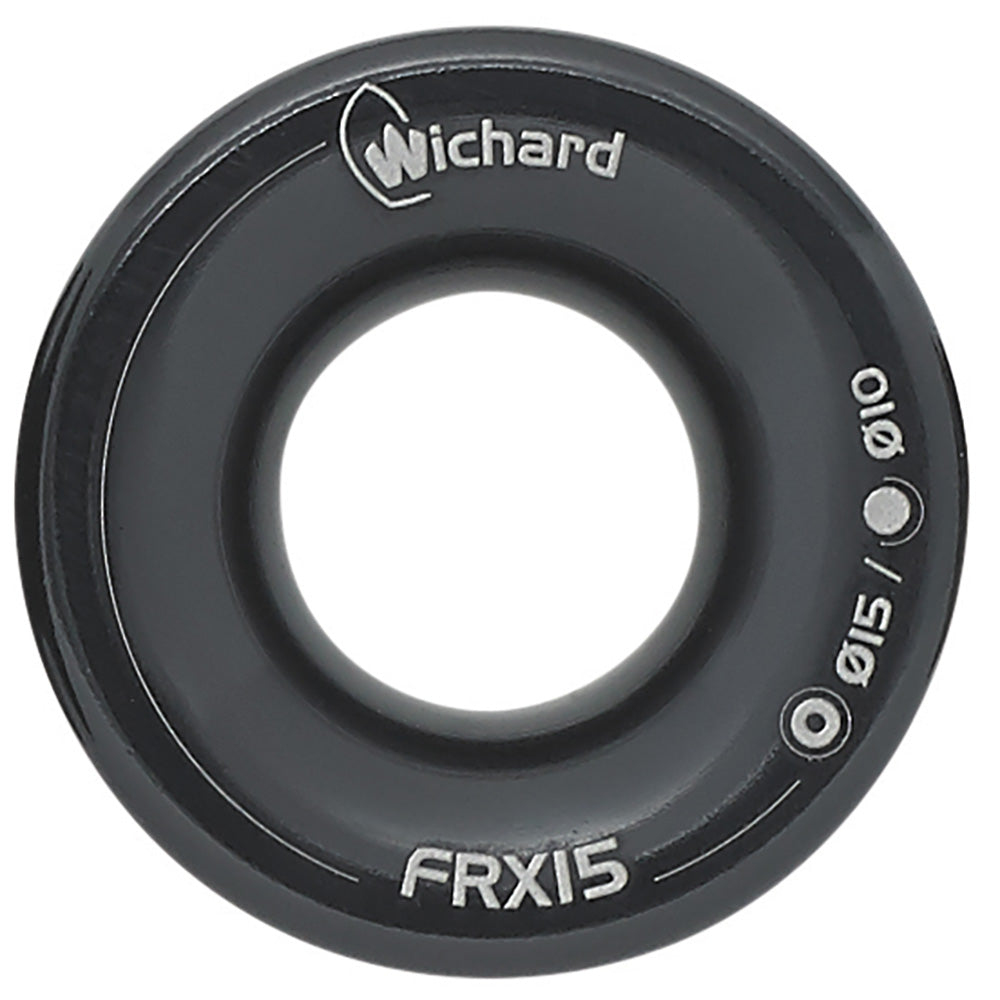

FRX15 Friction Ring - 15mm (19/32")

Features:

• Efficient and light
• FRX Wichard thimbles are efficient, light, and reliable
• Very strong and can be used for heavy loads and semi-static lines
• FRX thimbles are designed to make your lines run smoothly with minimum wear
• They are hard anodized (50 microns) for a longer lifespan

Applications:

• Mast-foot block, barber-hauler, inhauler, loop, thimble, lazy jack, running backstay, tackle, and more

Specifications:

• Materials: Anodized aluminium
• Working load: (lb) 3520 / (kg) 1600
• Weight: (lb) 0.026 / (g) 12

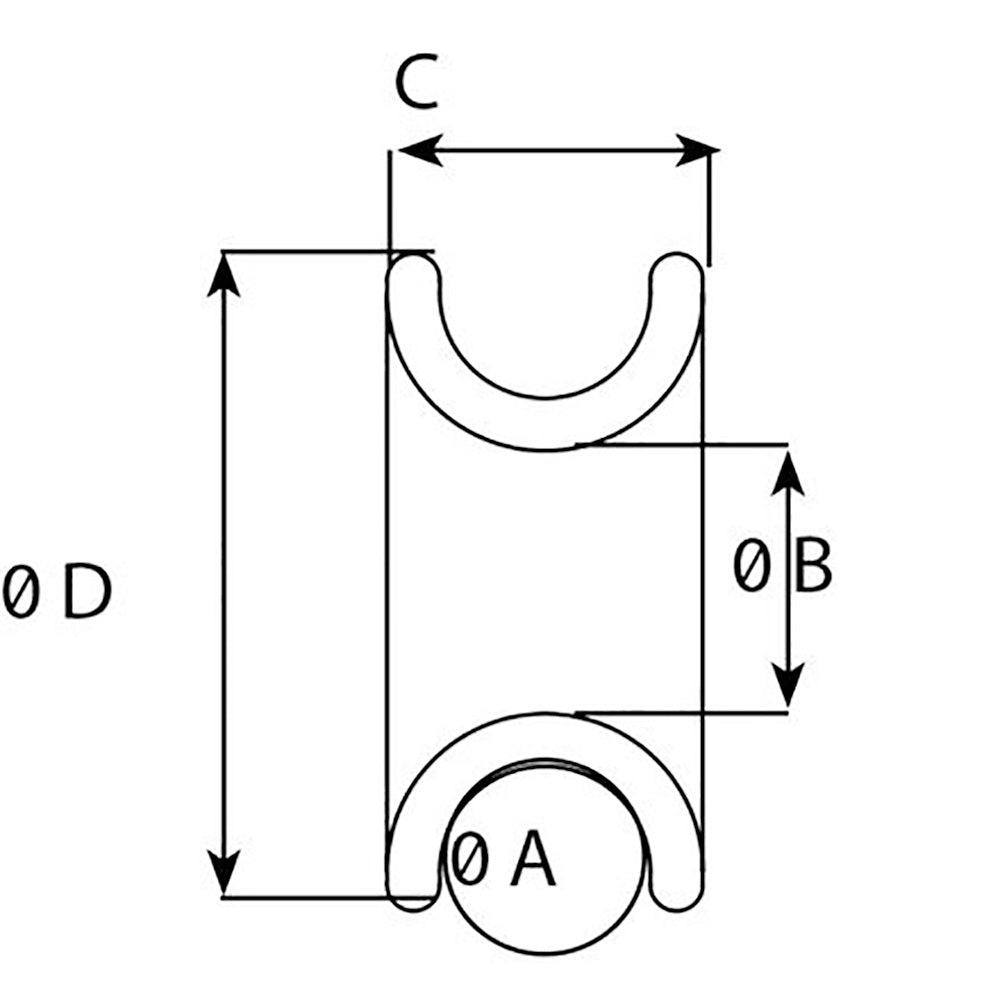

• A: (inch) 25/64" / (mm) 10
• B: (inch) 19/32" / (mm) 15
• C: (inch) 19/32" / (mm) 15
• D diameter: (inch) 1 3/8" / (mm) 35

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Product : WICHARD 15MM FRICTION RING
Manufacturer : Wichard Marine
Manufacturer Part No : FRX15 / 21510
