Wichard Folding Pad Eye - Diameter 25/64" - 6606

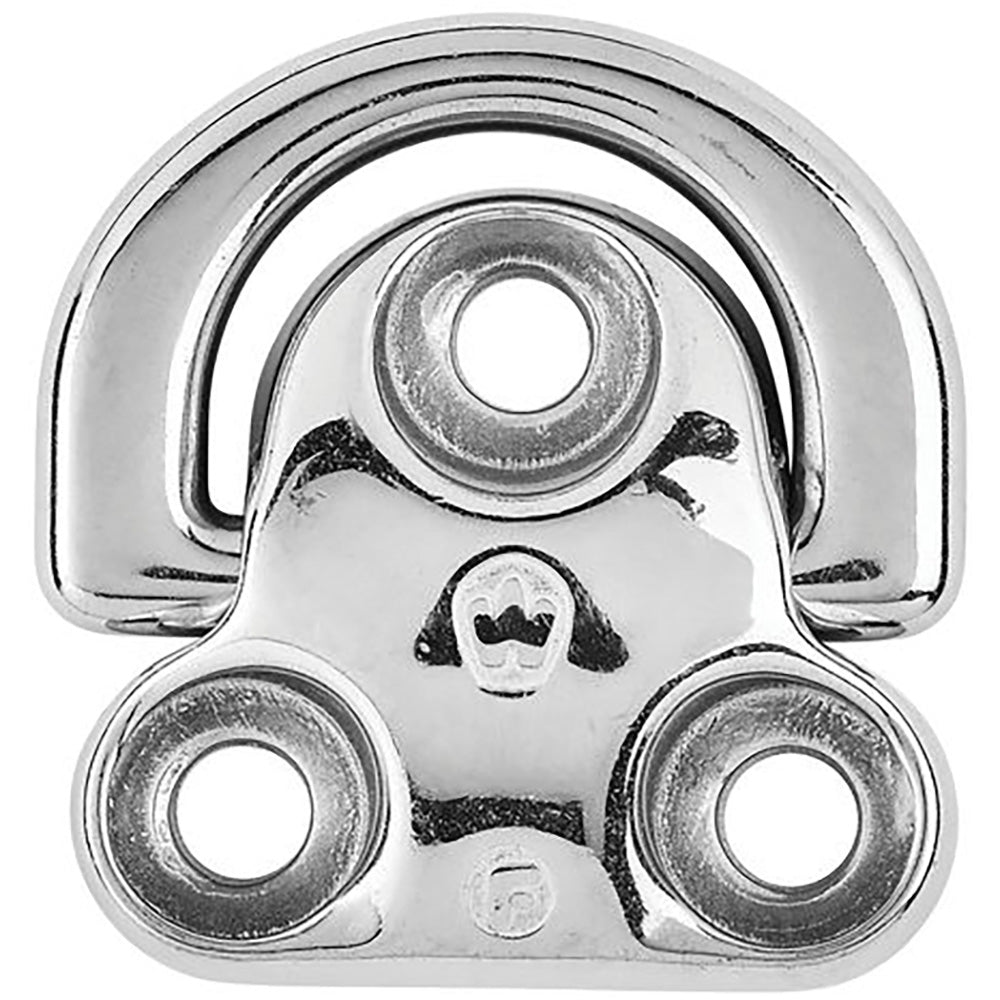

Folding Pad Eye - Diameter 25/64"

Features:

• Perfect solution for fastening applications (stay, blocks, jib tack point, lifeline, tether, etc...)
• Fully drop-forged product with outstanding working and breaking loads regardless of the angle of the load
• Modern and optimized design to suit the aesthetics of modern boats
• They can be folded down to minimize the risk of injuries
• The silicon pad eliminates noise and unpleasant vibrations
• Modern design

Applications:

• For any fastening/attachment application: shroud, stay, blocks, lifeline, jib tack point, etc…)

Specifications:

• Materials 17.4 pH stainless steel/316L stainless steel grade
• Working load (lb) 8990
• Breaking load (lb) 19840
• Weight (lb) 0.783

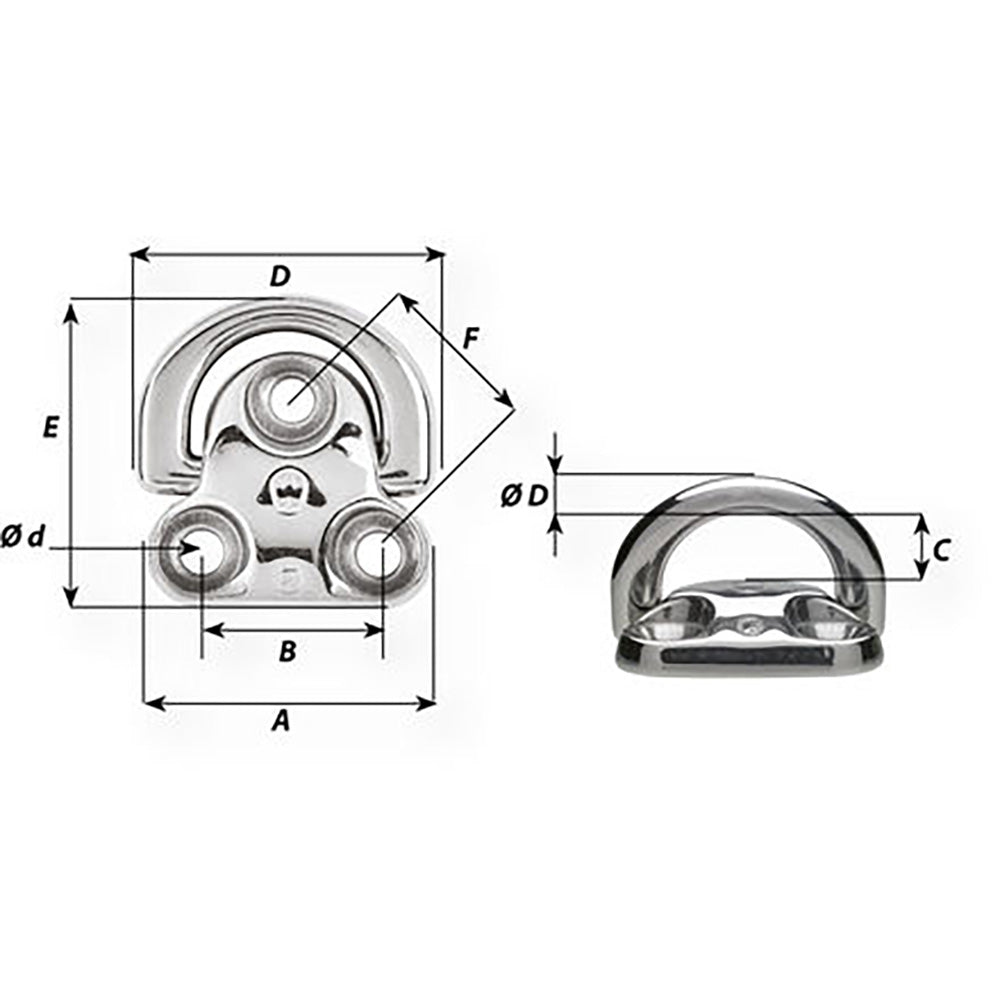

• A (inch) 2 61/64"
• B (inch) 1 49/64"
• C (inch) 63/64"
• D (inch) 3 5/32"
• d diameter (inch) 25/64"
• D diameter (inch) 25/64"
• E (inch) 2 43/64"
• F (inch) 1 49/64"
