Wichard Folding Pad Eye – Diameter 15/64" – 6604

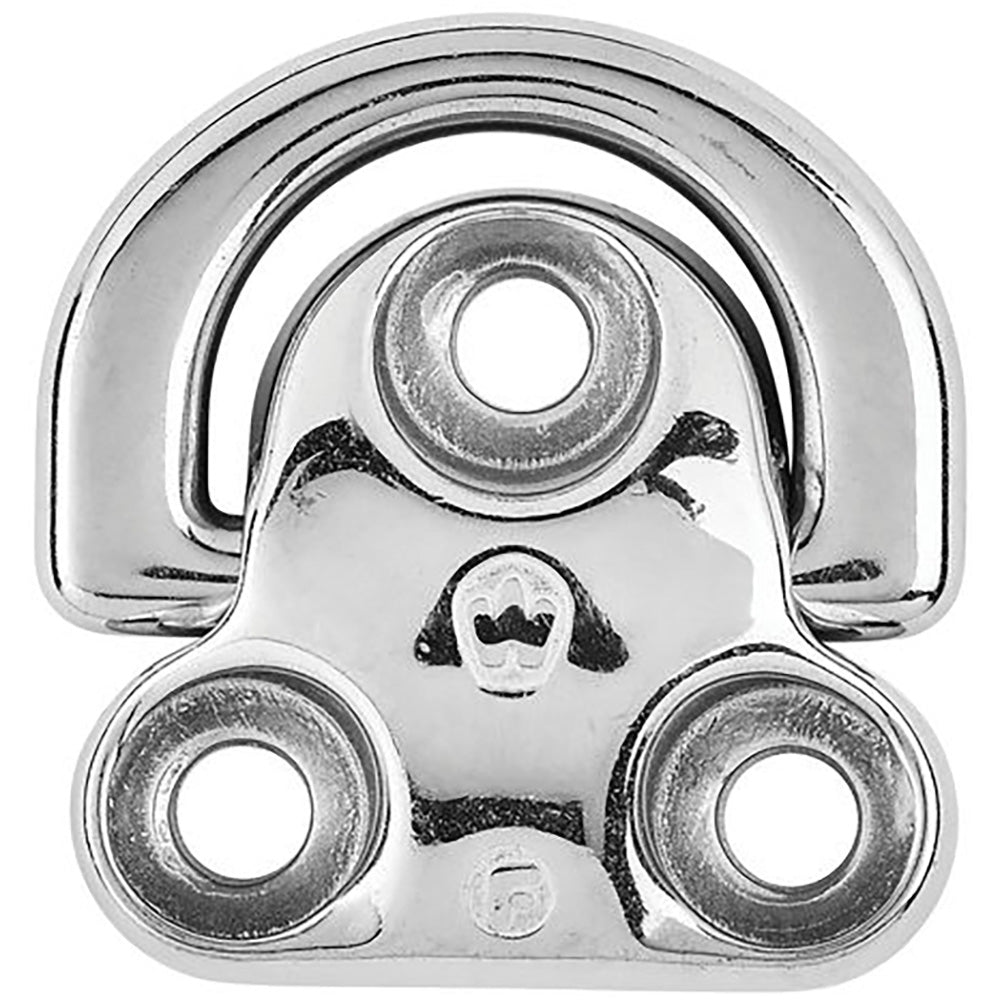

The Wichard Folding Pad Eye (6604) is a premium marine-grade stainless steel attachment point designed for strength, safety, and a clean deck profile. Featuring a folding design, this pad eye lies flat when not in use, reducing trip hazards and preventing line snags on deck.
Manufactured from high-quality 316L stainless steel, this Wichard pad eye offers excellent resistance to corrosion in harsh marine environments. With a 15/64-inch diameter, it provides a strong and reliable tie-down point for lifelines, jacklines, tethers, and deck hardware on sailboats and powerboats.
Ideal for high-load marine applications, Wichard folding pad eyes are trusted by professionals and performance-oriented boaters worldwide.
Key Features
-
Exceptional Strength: Offers a massive 2,510 lb working load and 6,610 lb breaking load, ensuring safety for critical applications like lifelines or harness points.
-
Dual Material Construction: The base is crafted from 316L stainless steel for superior corrosion resistance, while the bail is made from 17.4 pH stainless steel for maximum mechanical strength.
-
Noise Reduction: The silicon underlay protects the deck surface and prevents unpleasant metal-on-metal noise during heavy seas.
-
ISO 15085 Compliant: This model is certified for use as a man-overboard prevention and recovery hooking point on small craft.

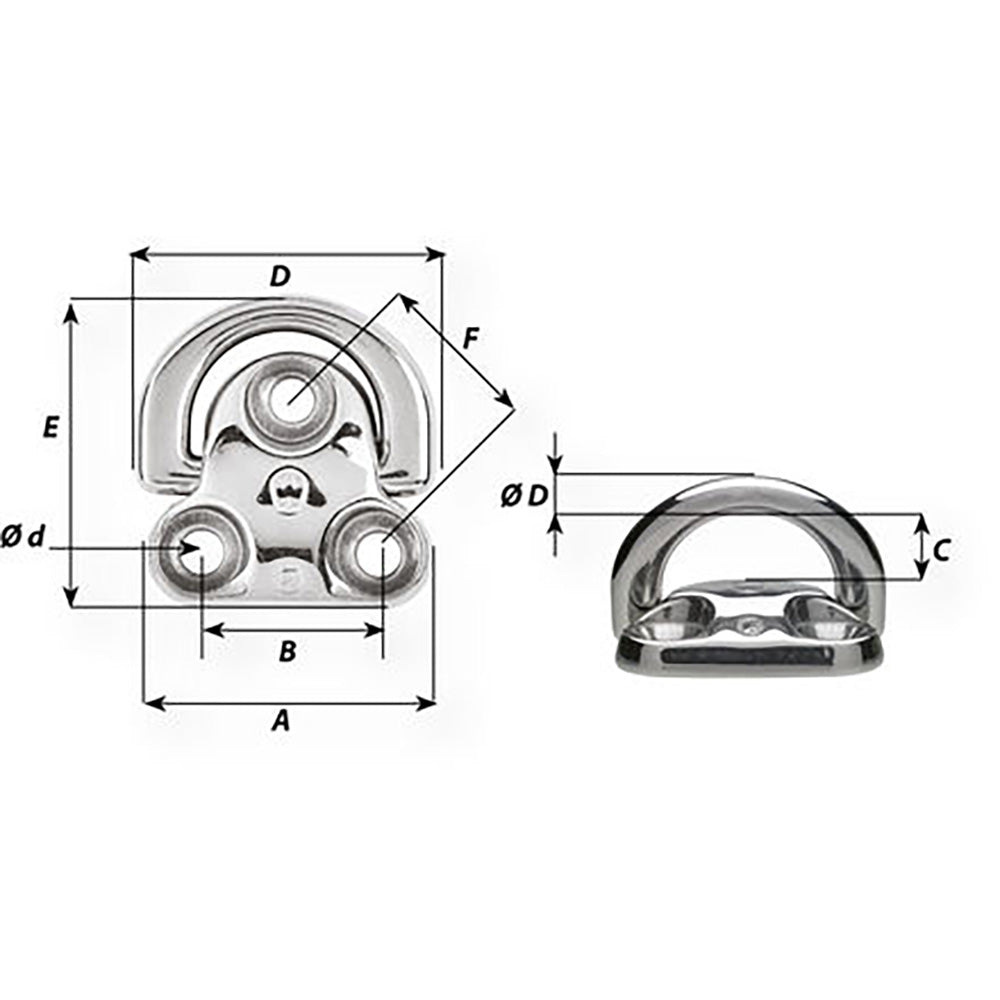

Technical Dimensions
| Feature | Metric | Imperial (Approx.) |
| Bail Diameter (d) | 6 mm | 15/64 in |
| Base Length (A) | 45 mm | 1-49/64 in |
| Base Width (B) | 27 mm | 1-1/16 in |
| Eye Height (C) | 15 mm | 19/32 in |
| Fastener Spacing (E) | 41 mm | 1-39/64 in |
In The Box
-
1 x 6 mm Folding Pad Eye (Assembled with Silicon Pad).
-
Note: Fasteners (screws/bolts) are typically not included. This model requires 1/4" (6 mm) countersunk fasteners for installation.
Installation & Safety
-
Fastener Choice: Always use high-quality stainless steel bolts with backing plates (like the Wichard SP6504) for structural loads to prevent the hardware from pulling through the deck.
-
Sealing: Even with the silicon pad, it is best practice to use a marine-grade sealant (like 3M 5200 or 4000UV) around the bolt holes to ensure a 100% watertight seal.
Ideal For
-
Lifelines and jacklines
-
Safety tethers and tie-downs
-
Deck hardware and rigging applications
-
Sailboats and powerboats
Manufacturer : Wichard Marine
Manufacturer Part No : 06604
