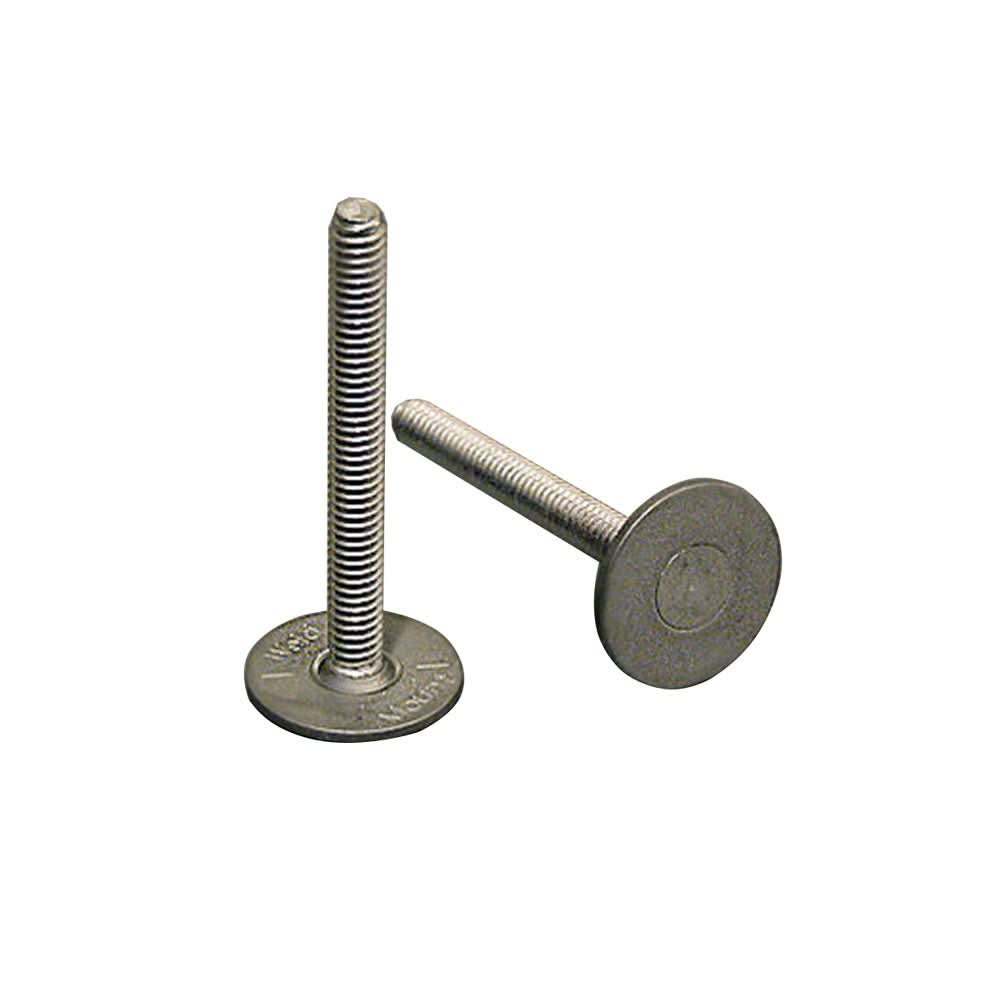

Weld Mount 1.25" Tall Stainless Panel Stud with 0.62" Base & #8 x 32 Thread - Qty. 15 - 83220

1.25" Tall Stainless Stud w/#8 x 32 Thread

Our Small Stainless Steel Panel Studs have a wide range of uses. Originally they were used for mounting on the backside of dash panels for mounting to the console. Now they are used for securing a wide range of wire clamps and other small components to composite surfaces. The base plate is 0.62" in diameter with a 1.25" tall stud. Tensile strength is 300 lbs. and shear strength is 375 lbs. Maximum torque load is 45 inch/lbs.
