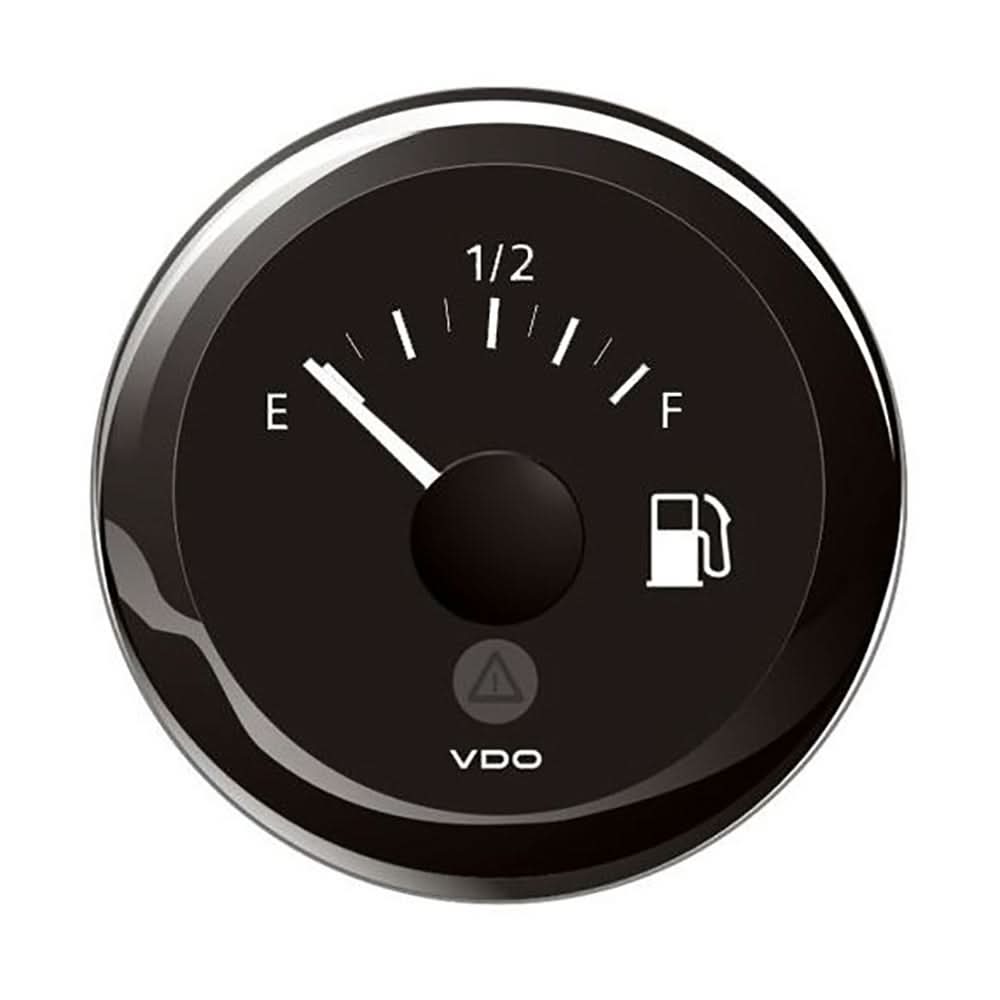

Veratron 52MM (2-1/16") ViewLine Tank Level Gauge E/F - 3-180 Ohm - Black Dial & Bezel - A2C59514091

Veratron 52MM (2-1/16") ViewLine Tank Level Gauge E/F – 3-180 Ohm – Black Dial & Bezel (A2C59514091)

The Veratron ViewLine 52MM Tank Level Gauge (A2C59514091) is a high-quality marine instrument designed for accurate monitoring of fuel, water, or waste tank levels. With a 3–180 ohm resistance range, it provides precise readings from empty to full, making it compatible with a wide range of marine sending units.

Part of the modern ViewLine series, this gauge features a clean black dial and matching bezel, delivering a sleek, professional look that complements any helm. Its compact 52mm (2-1/16") standard size ensures easy installation in most dashboards and panels.

Engineered for reliability, the gauge offers clear readability and dependable performance, helping boaters monitor tank levels with confidence for safe operation during both coastal and offshore trips.

Designed for versatility, it can be used across various marine applications and integrates seamlessly with other ViewLine instruments for a cohesive dashboard setup.

Technical Specifications

• Model Number: A2C59514091

• Series: ViewLine Housing Family

• Diameter: 52mm (2-1/16")

• Input Range: 3–180 Ohms (Standard European sender range)

• Scale: E (Empty) to F (Full)

• Dial Color: Black

• Bezel Color: Black (Interchangeable)

• Operating Voltage: 12V / 24V (Integrated multi-voltage support)

• Current Consumption: < 150 mA (including warning LED)

• Protection Rating: IP67 (Front), IP66 (Rear)

Key Features

• Integrated Warning LED: Includes a built-in red LED that can be wired to trigger when the tank reaches a critical low level (requires a sender with a warning contact or a separate logic switch).

• Anti-Fog Technology: The dual-lens system is designed to prevent condensation and fogging in humid marine environments.

• High Precision: Features a 240° pointer deflection for clear, easy-to-read measurements even in rough sea conditions.

• Durability: Built with flame-retardant materials and a scratch-resistant lens to ensure a long service life on dashboards and fly-bridges.

• Plug-and-Play Wiring: Uses the standard Veratron/VDO 8-pin Tyco/Hirschmann connector for secure and easy installation.

Installation & Compatibility

• Sender Compatibility: This gauge is designed to work with 3–180 Ohm senders. It will not read correctly if paired with American standard 240–33 Ohm senders.

• Panel Mounting: Fits into a standard 52mm cutout. It can be mounted flush or with the included spin-lock nut.

• Illumination: Features adjustable amber LED backlighting for excellent nighttime visibility.

Keep track of your vessel’s tank levels with confidence using the Veratron ViewLine Tank Level Gauge, delivering precision, durability, and a clean, modern look for any marine dashboard.

Manufacturer : Veratron
Manufacturer Part No : A2C59514091
