Uflex UC81-OBF Front Mount Outboard Cylinder - UC81-OBF
Manufacturer Part #: UC81-OBF
Couldn't load pickup availability

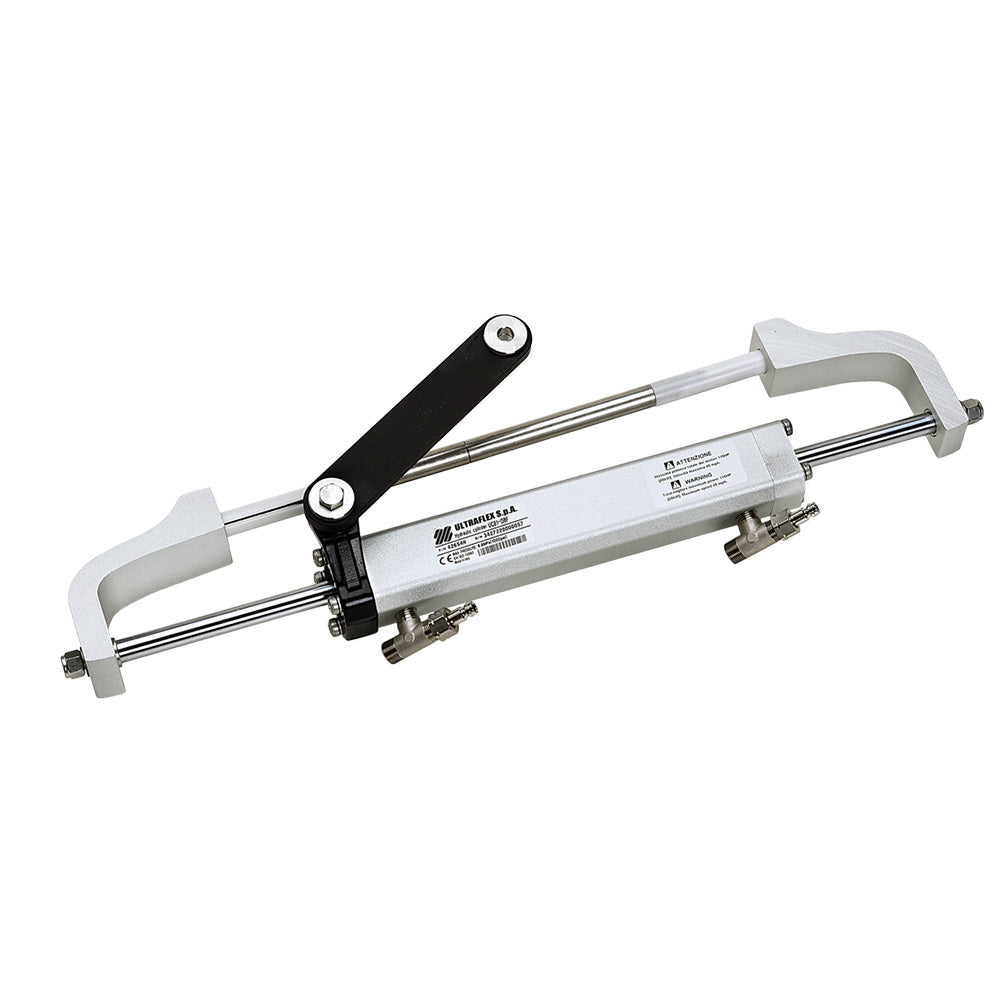

Uflex UC81-OBF Front Mount Outboard Hydraulic Steering Cylinder
The Uflex UC81-OBF Front Mount Outboard Cylinder is a high-performance hydraulic steering cylinder engineered to deliver smooth, precise, and reliable steering control for modern outboard-powered boats. Designed for front-mount outboard applications, the UC81-OBF provides efficient steering response, reduced helm effort, and exceptional durability in demanding marine environments.
Built from marine-grade, corrosion-resistant materials, the UC81-OBF is designed to withstand harsh saltwater conditions while maintaining consistent hydraulic performance. Its compact, front-mount configuration allows for clean installation on a wide range of outboard engines, making it an ideal solution for center consoles, bay boats, fishing boats, and recreational powerboats.
The UC81-OBF cylinder integrates seamlessly with Uflex hydraulic steering helms, ensuring balanced pressure, smooth tracking, and responsive control at both low speeds and high cruising speeds. Whether you’re upgrading from mechanical steering or replacing an existing hydraulic cylinder, the UC81-OBF delivers dependable performance trusted by boaters and marine professionals worldwide.
Key Performance Features
-
Balanced Steering: As a balanced cylinder, it provides an equal number of turns lock-to-lock (typically 4.5 turns) in both directions, offering consistent handling and predictability.
-
Split Tilt Tube Rod: Features an industry-exclusive design that allows you to install the cylinder without removing the engine, saving significant time and labor during setup or retrofitting.
-
High-Pressure Reliability: Built with a 304 stainless steel main rod and machined aluminum bullhorns for enhanced durability in saltwater environments.
-
Versatile Mounting: Can be installed on either the port or starboard side depending on your boat's rigging and cowling clearance requirements.
-
Easy Maintenance: Equipped with replaceable end caps, which simplify long-term servicing and extend the overall life of the unit.
Technical Specifications
-
Volume: 81 cc (4.9 cu. in.)
-
Output Force: 489 lbs (222 kg)
-
Stroke Length: 7.3" (186 mm)
-
Max Engine Power: 115 HP
-
Hose Fittings: 3/8" high-pressure flex hose
-
Bleed Fittings: DN5 quick connect for easy air purging
Benefits
-
Improved handling and control at all speeds
-
Consistent hydraulic response with minimal effort
-
Long service life in harsh marine conditions
-
Ideal replacement or upgrade for outboard steering systems
-
Trusted Uflex quality and engineering
Ideal Applications
-
Outboard-powered boats
-
Center consoles
-
Bay boats and flats boats
-
Fishing and recreational powerboats
-
Boats upgrading from mechanical to hydraulic steering
The Uflex UC81-OBF Front Mount Outboard Cylinder is the perfect choice for boaters seeking reliable hydraulic steering performance, durability, and precision control. Designed to meet the demands of modern outboards, it delivers confidence-inspiring steering for everyday cruising or aggressive offshore use.
Summary for the User
The UC81-OBF is the most affordable hydraulic solution for small-to-midsize boats, especially those with high-torque applications like pontoons. It is intended for single-engine boats that do not exceed 45 mph. While rugged and reliable for standard use, it is not recommended for racing applications.
Installation Tip: Always use high-pressure hydraulic oil (like Uflex Olioflex) and ensure the system is thoroughly bled using the quick-connect fittings to maintain that "zero-play" steering feel.
BRAND: Uflex USA
Manufacturer Part Number: UC81-OBF
Uflex UC81-OBF Front Mount Outboard Cylinder - UC81-OBF is backordered and will ship as soon as it is back in stock.
