Uflex TM87 17' Rack & Pinion Steering System - TM87OX17
Manufacturer Part #: TM87OX17
Couldn't load pickup availability

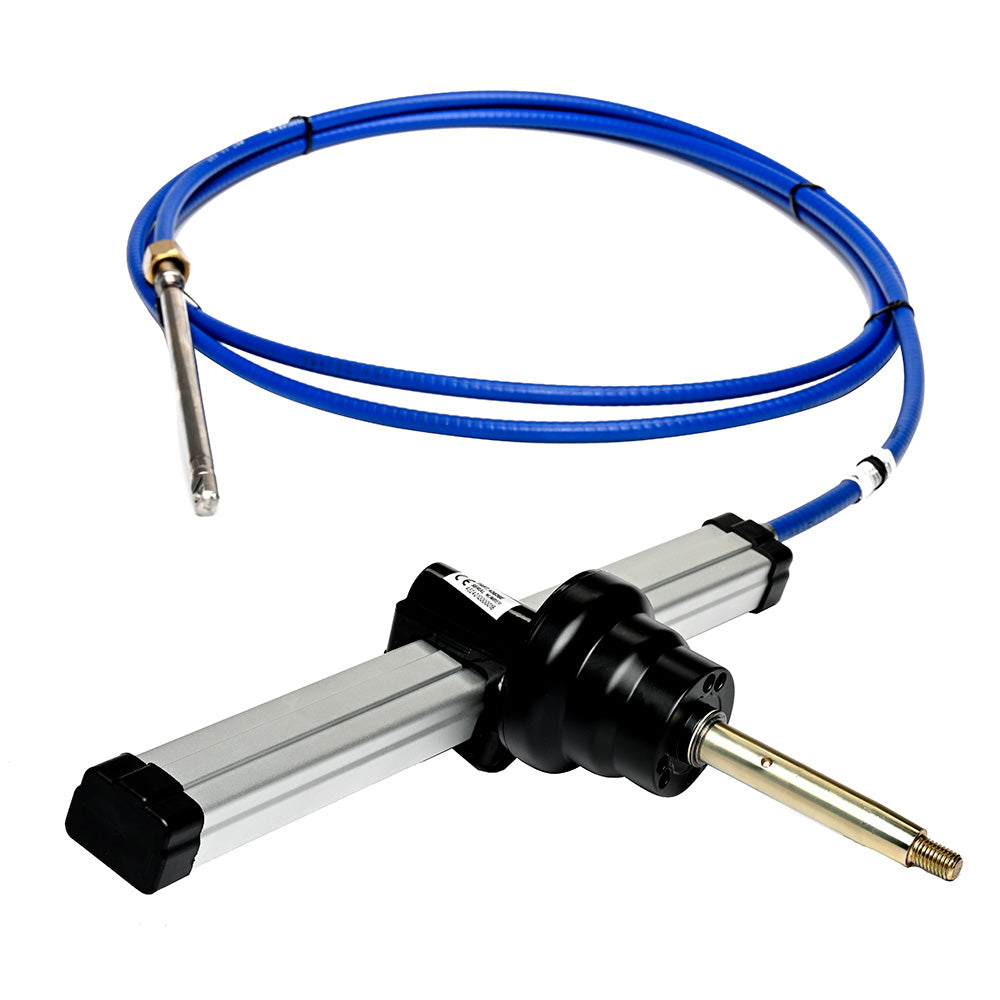

Uflex TM87 17' Rack & Pinion Steering System – TM87OX17
The Uflex TM87 17' Rack & Pinion Steering System (TM87OX17) is a high-efficiency mechanical steering solution designed to provide smooth, precise, and dependable helm control for small to mid-size powerboats. Utilizing Uflex’s proven rack-and-pinion technology, this system delivers direct steering response with minimal play, offering improved handling and confidence at all speeds.
Equipped with a 17-foot high-efficiency steering cable, the TM87OX17 is ideal for boats requiring a slightly longer steering run while maintaining crisp, predictable performance. The rack-style helm converts wheel movement directly into steering action, ensuring accurate feedback whether docking, cruising, or running on plane.
Built from marine-grade, corrosion-resistant materials with stainless steel cable ends, the TM87 system is engineered for long-term durability in both freshwater and saltwater environments. The included mounting bezel allows for straightforward installation and easy retrofitting into many standard dash configurations.
Whether replacing worn mechanical steering or upgrading from rotary systems, the Uflex TM87 17' Rack & Pinion Steering System provides reliable performance, improved steering precision, and trusted Uflex quality.
Key Performance Features
-
High-Efficiency Operation: Delivers smooth steering with approximately 3.3 turns lock-to-lock, allowing for precise maneuverability and responsive control.
-
Corrosion Resistance: Built for the marine environment with all stainless steel cable output ends and corrosion-resistant materials throughout the helm and cable.
-
Universal Dashboard Fit: The included X34 mounting bezel typically fits the same bolt pattern as many existing helms, which may eliminate the need to drill new holes in your dash.
-
Standard Compatibility: Features a 3/4" tapered shaft that is compatible with most standard marine steering wheels up to 16 inches in diameter.
-
Safety Certified: This system exceeds both ISO 8848 and ABYC P17 safety standards for mechanical steering.
Technical Specifications
-
Cable Length: 17 Feet (5.2 Meters)
-
Cable Stroke: 3.7" (94 mm)
-
Minimum Bend Radius: 7.9" (200 mm)
-
Cross-Compatibility: Directly compatible with competing cables like the SSC134, SSC135, and SSC154.
What's Included in the Kit
The TM87OX17 is a preassembled package containing the core components for installation:
-
G87 Front Mount Helm: The primary mechanical gear housing.
-
TM87XLL High-Efficiency Cable: The 17-foot armored steering cable.
-
X34 Mounting Bezel: A black 90° bracket for secure mounting.
Benefits
-
Improved handling and steering accuracy
-
Reduced operator fatigue
-
Reliable mechanical steering without hydraulics
-
Excellent retrofit replacement for rotary steering systems
-
Proven Uflex durability and performance
Ideal Applications
-
Outboard-powered boats
-
Small to mid-size powerboats
-
Center consoles and runabouts
-
Boats requiring a 17' steering cable
Installation & Usage Notes
-
Horsepower Limits: This steering system should not be used on boats with engines that exceed the vessel's maximum rated horsepower.
-
Steering Wheel: Please note that a steering wheel is not included; however, you can easily reuse your current wheel or choose a new style.
-
Tight Clearance: The compact design and 7.9" bend radius make this system an excellent choice for boats with limited space behind the dashboard.
BRAND: Uflex USA
Manufacturer Part Number: TM87OX17
