Uflex TM87 15' Rack & Pinion Steering System - TM87OX15
Manufacturer Part #: TM87OX15
Couldn't load pickup availability
Uflex TM87 15' Rack & Pinion Steering System – TM87OX15
The Uflex TM87 15' Rack & Pinion Steering System (TM87OX15) is a high-efficiency mechanical steering solution designed to deliver smooth, accurate, and dependable helm control for small to mid-size powerboats. Built on Uflex’s proven rack-and-pinion technology, this system provides direct steering response with minimal backlash, offering noticeably improved handling compared to traditional rotary steering systems.
Featuring a 15-foot high-efficiency steering cable, the TM87OX15 is ideal for boats requiring a mid-length steering run while maintaining crisp, predictable steering performance. The rack-style helm converts wheel input directly into steering motion, giving the operator better feedback and confidence whether docking, cruising, or running at speed.
Constructed with marine-grade, corrosion-resistant materials and stainless-steel cable ends, the TM87 system is engineered for durability in both freshwater and saltwater environments. The included mounting bezel allows for easy installation and straightforward retrofitting into many standard dashboard layouts.
Whether you’re replacing worn steering components or upgrading from an older mechanical system, the Uflex TM87 15' Rack & Pinion Steering System delivers reliable performance, reduced steering effort, and trusted Uflex quality.
Key Performance Features
-
High-Efficiency Design: Provides smooth operation with approximately 3.3 turns lock-to-lock, allowing for precise maneuverability and responsive handling.
-
Corrosion Resistance: Engineered for the marine environment with all stainless steel cable output ends and corrosion-resistant materials used throughout the helm and cable components.
-
Universal Dash Fit: The included X34 mounting bezel is designed to fit the same bolt pattern as many existing helms, typically eliminating the need to drill new holes in your dashboard.
-
Standard Shaft Fitting: Features a 3/4" tapered shaft, making it compatible with most standard steering wheels up to 16 inches in diameter.
-
Safety Certified: Exceeds both ISO 8848 and ABYC P17 safety standards for mechanical steering systems.
Technical Specifications
-
Cable Length: 15 Feet (4.5 Meters)
-
Cable Stroke: 3.7" (94 mm)
-
Minimum Bend Radius: 7.9" (200 mm)
-
Cable Compatibility: Compatible with competing cables like the SSC134, SSC135, and SSC154.

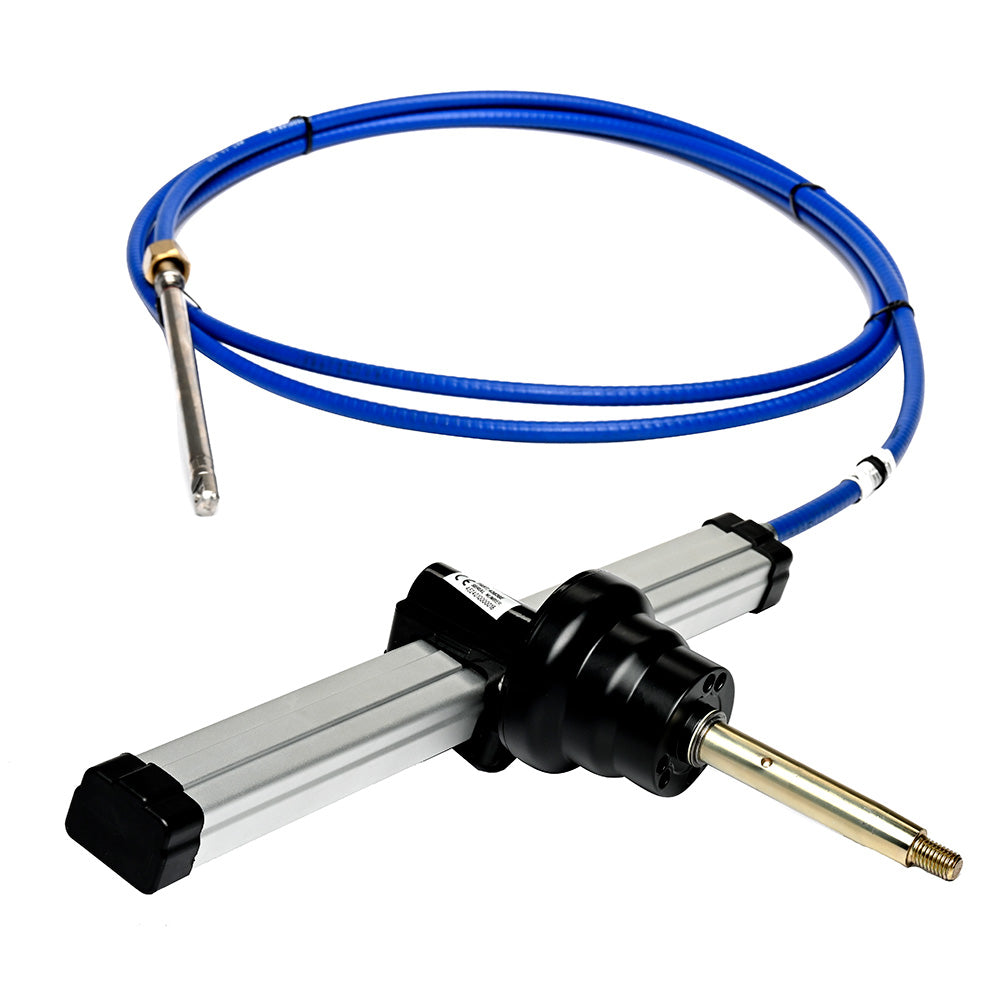

What's Included in the Kit
The TM87OX15 comes as a preassembled package to simplify installation:
-
G87 Front Mount Helm: The core mechanical gear housing for the rack and pinion system.
-
TM87XLL High-Efficiency Cable: The 15-foot armored steering cable with a stainless steel core.
-
X34 Mounting Bezel: A black 90° mounting bracket for secure dash installation.
Benefits
-
Improved steering precision and handling
-
Reduced operator fatigue
-
Reliable mechanical steering without hydraulics
-
Ideal retrofit replacement for rotary steering systems
-
Proven Uflex durability and engineering
Ideal Applications
-
Outboard-powered boats
-
Small to mid-size powerboats
-
Center consoles and runabouts
-
Boats requiring a 15' steering cable
Installation & Usage Notes
-
Horsepower Limits: This steering system is not intended for use on boats equipped with engines that exceed the vessel's maximum horsepower rating.
-
Steering Wheel: Please note that a steering wheel is not included in this kit; however, the universal shaft allows you to easily reuse your existing one or choose a new style.
-
Tight Clearance: The compact design and 7.9" bend radius make this system an excellent choice for boats with limited space behind the dashboard.
BRAND: Uflex USA
Manufacturer Part Number: TM87OX15
