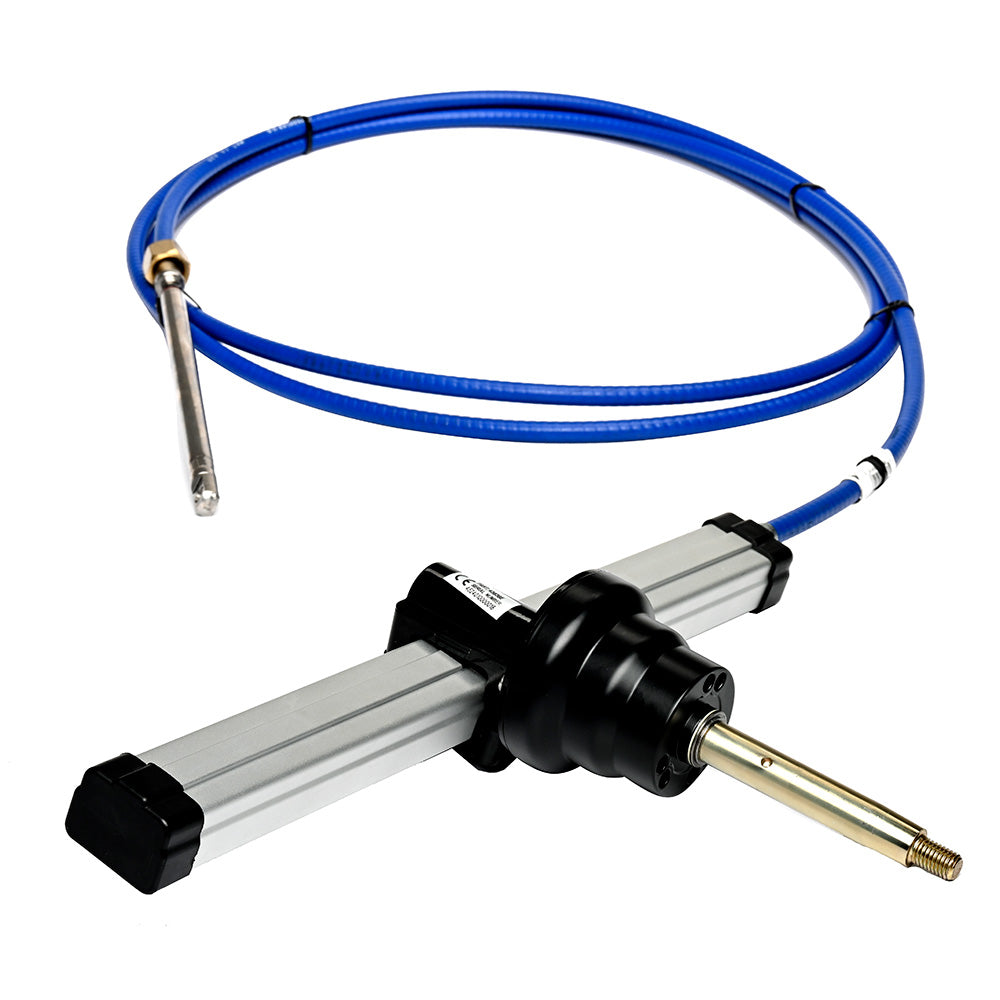

Uflex TM87 10' Rack & Pinion Steering System – TM87OX10
The Uflex TM87 10' Rack & Pinion Steering System (TM87OX10) is a premium marine steering solution engineered to deliver smooth, precise helm control and responsive handling for a wide range of vessels. Ideal for powerboats, center consoles, sportboats, pontoons, and RIBs, this 10-foot rack and pinion system provides enhanced steering performance that improves control, confidence, and comfort on the water.
Featuring Uflex’s advanced rack and pinion design, the TM87 delivers direct, low-play steering response, translating helm input into accurate boat movement with minimal slop. This responsive steering helps captains make confident course adjustments in tight quarters, rough conditions, and at higher speeds.
Constructed with marine-grade, corrosion-resistant materials and precision-machined components, the TM87OX10 is built to withstand the rigors of both freshwater and saltwater environments. The sealed internal gear assembly protects against contaminants and wear, ensuring long-lasting performance and reduced maintenance over time.
Key Performance Features
-
M86 Heavy-Duty Cable: Features a stainless steel core and output fittings for maximum corrosion resistance and longevity.
-
Compact Helm Design: The T87 helm is constructed from zinc alloy with a steel rack, providing a robust feel without the bulk.
-
Standard Wheel Fit: Features a standard 3/4" tapered shaft, making it compatible with almost all marine steering wheels.
-
Smooth Handling: Designed with roughly 3.5 turns lock-to-lock, offering a great balance between steering speed and effort.
-
Safety Certified: Exceeds EN 28848 and ABYC P17 safety standards for mechanical steering.
Technical Specifications
| Feature | Details |
| Model Number | TM87OX10 |
| Cable Length | 10 Feet (3.05 Meters) |
| Helm Model | T87 (Rack & Pinion) |
| Bezel Type | X34 (90-Degree Black) |
| Stroke | 8.8 Inches (224mm) |
| Max Wheel Size | 16 Inches (406mm) |
| Shaft Size | 3/4" Tapered |
In The Box
-
1 x T87 Steering Helm
-
1 x M86 Steering Cable (10ft)
-
1 x X34 Mounting Bezel
-
Mounting Hardware & Installation Guide
Important Installation Note: Measuring Cable Length
To ensure this 10-foot kit is correct for your boat, measure your existing cable from the threaded nut at the helm to the center of the engine connection, then add approximately 6 inches for the rack travel. If your old cable has a part number stamped on the plastic jacket (usually near the helm), it will typically end in "10" for a 10-foot cable.
Are you replacing an existing steering system?
If you are moving from a rotary system to this rack and pinion, you may need to check the width of your dashboard to ensure the rack has enough room to move side-to-side. Would you like me to find the clearance dimensions for the T87 helm?
The Uflex TM87 10' Rack & Pinion Steering System – TM87OX10 is an excellent upgrade for boat owners seeking a high-quality, reliable steering system that delivers precise control, durability, and confidence on the water.
