Ufelx TM87 14' Rack & Pinion Steering System - TM87OX14
Manufacturer Part #: TM87OX14
Couldn't load pickup availability

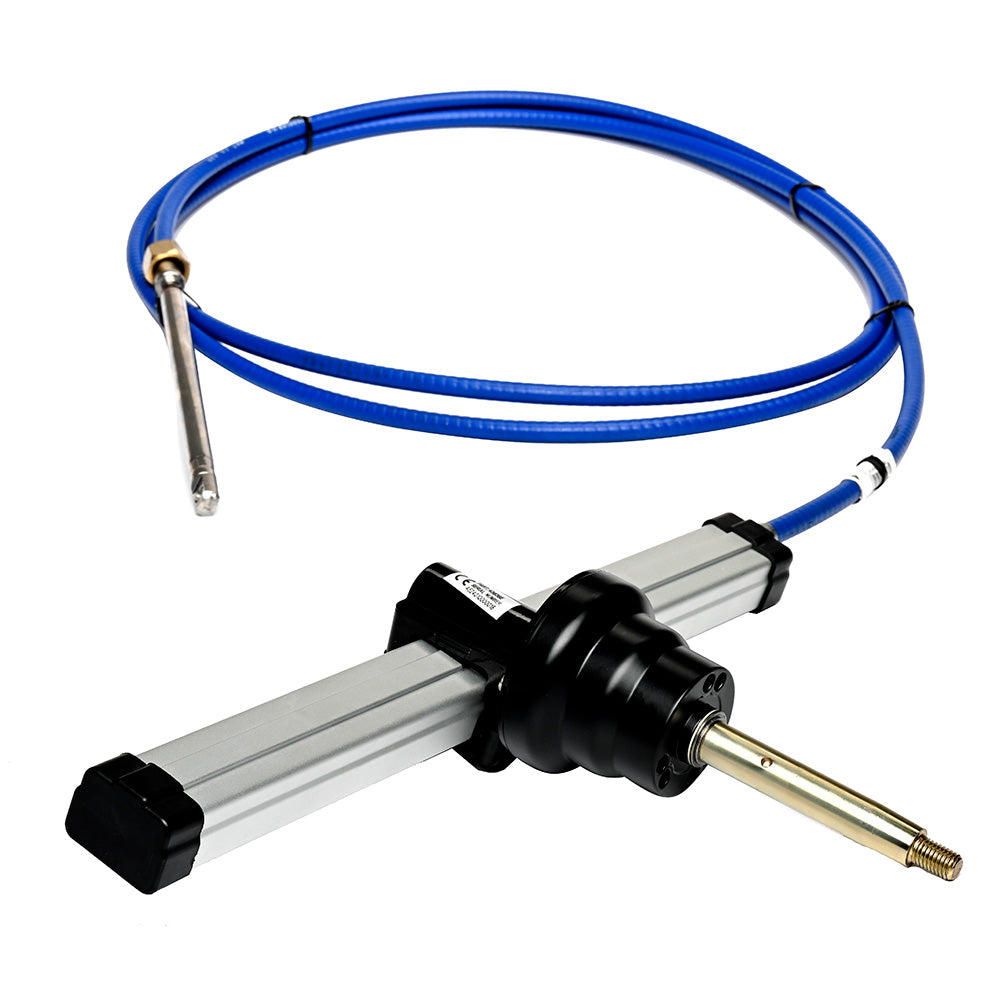

Uflex TM87 14' Rack & Pinion Steering System – TM87OX14
The Uflex TM87 14' Rack & Pinion Steering System (TM87OX14) is a high-efficiency mechanical steering solution designed to deliver smooth, precise helm control for small powerboats and compact outboard applications. Built around Uflex’s proven rack-and-pinion technology, this system offers direct, responsive steering with minimal play, making it an excellent upgrade from traditional rotary steering systems.
Equipped with a 14-foot high-efficiency steering cable, the TM87OX14 is ideal for boats with shorter steering runs while maintaining crisp, predictable handling. The rack-style helm translates wheel movement directly into steering action, providing improved feedback and confidence whether maneuvering at the dock or running on plane.
Manufactured using marine-grade, corrosion-resistant materials and stainless steel cable ends, the TM87 system is engineered for durability in both freshwater and saltwater environments. The included mounting bezel allows for easy installation and straightforward retrofitting into many standard dash layouts.
Whether you’re replacing worn steering components or upgrading for better handling and control, the Uflex TM87 14' Rack & Pinion Steering System delivers reliable mechanical performance backed by Uflex’s trusted marine engineering.
Key Performance Features
-
High-Efficiency Operation: Delivers smooth steering with approximately 3.3 turns lock-to-lock, providing precise maneuverability and responsive control for recreational vessels.
-
Built for the Marine Environment: Features all stainless steel cable output ends and is constructed from corrosion-resistant materials to ensure long-term durability in saltwater.
-
Universal Dashboard Fit: The included X34 mounting bezel is designed to fit the same bolt pattern as many existing helms, typically eliminating the need to drill new holes in your dash.
-
Standard Compatibility: Equipped with a 3/4" tapered shaft, making it compatible with most standard marine steering wheels up to 16 inches (406 mm) in diameter.
-
Safety Certified: Exceeds both ISO 8848 and ABYC P17 safety standards for mechanical steering systems.
Technical Specifications
-
Cable Length: 14 Feet (4.2 Meters)
-
Cable Stroke: 3.7" (94 mm)
-
Minimum Bend Radius: 7.9" (200 mm)
-
Cross-Compatibility: Directly compatible with competing cables like the SSC134, SSC135, and SSC154.
What's Included in the Kit
The TM87OX14 is a preassembled package containing the essential components for a complete installation:
-
G87 Front Mount Helm: The primary mechanical gear housing.
-
TM87XLL High-Efficiency Cable: The 14-foot armored steering cable.
-
X34 Mounting Bezel: A black 90° bracket for secure mounting.
Benefits
-
Improved steering precision and handling
-
Reduced operator fatigue
-
Reliable mechanical steering without hydraulics
-
Ideal retrofit replacement for rotary steering systems
-
Trusted Uflex quality and durability
Ideal Applications
-
Small outboard-powered boats
-
Runabouts and skiffs
-
Compact center consoles
-
Boats requiring a 14' steering cable
Important Installation Notes
-
Horsepower Limits: This system should not be used on boats with engines that exceed the vessel's maximum rated horsepower.
-
Steering Wheel: Please note that a steering wheel is not included; however, you can easily reuse your current wheel or choose a new one.
-
Tight Spaces: The compact design and 7.9" bend radius make it an excellent choice for hulls with limited cable routing space.
BRAND: Uflex USA
Manufacturer Part Number: TM87OX14
