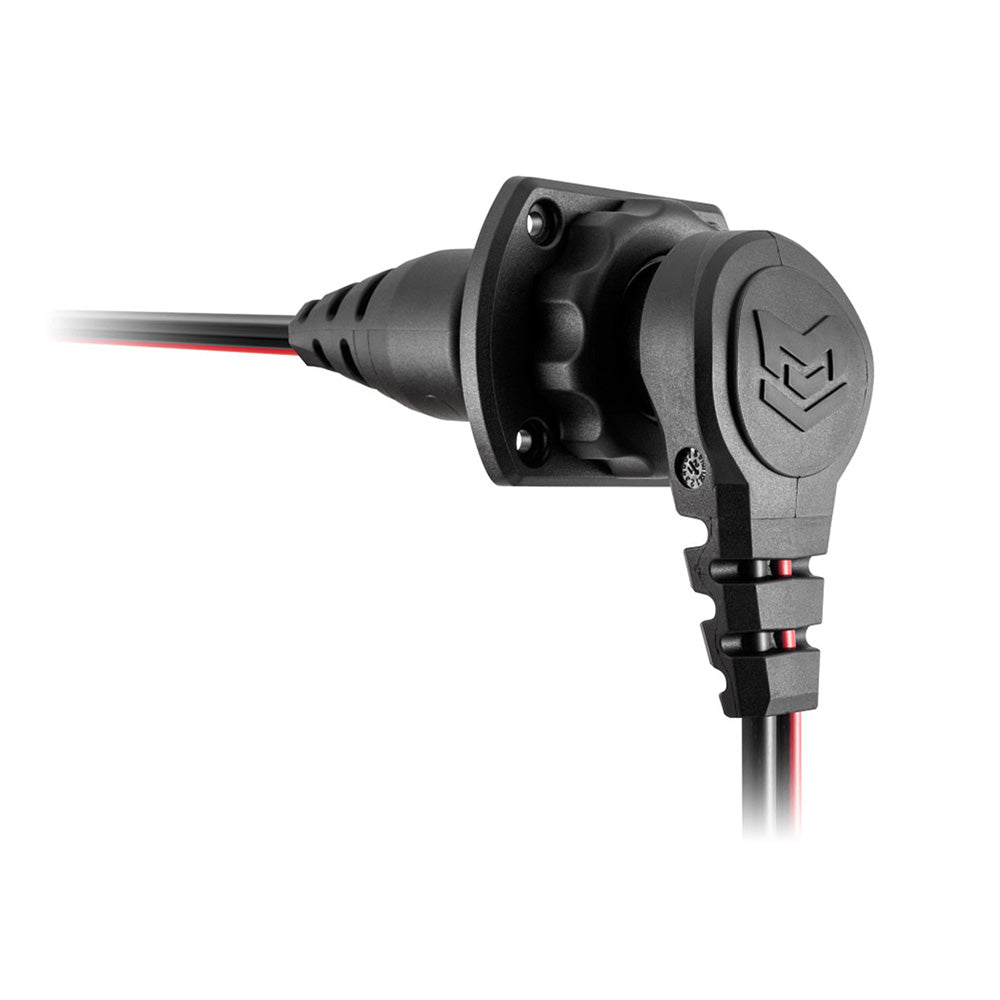

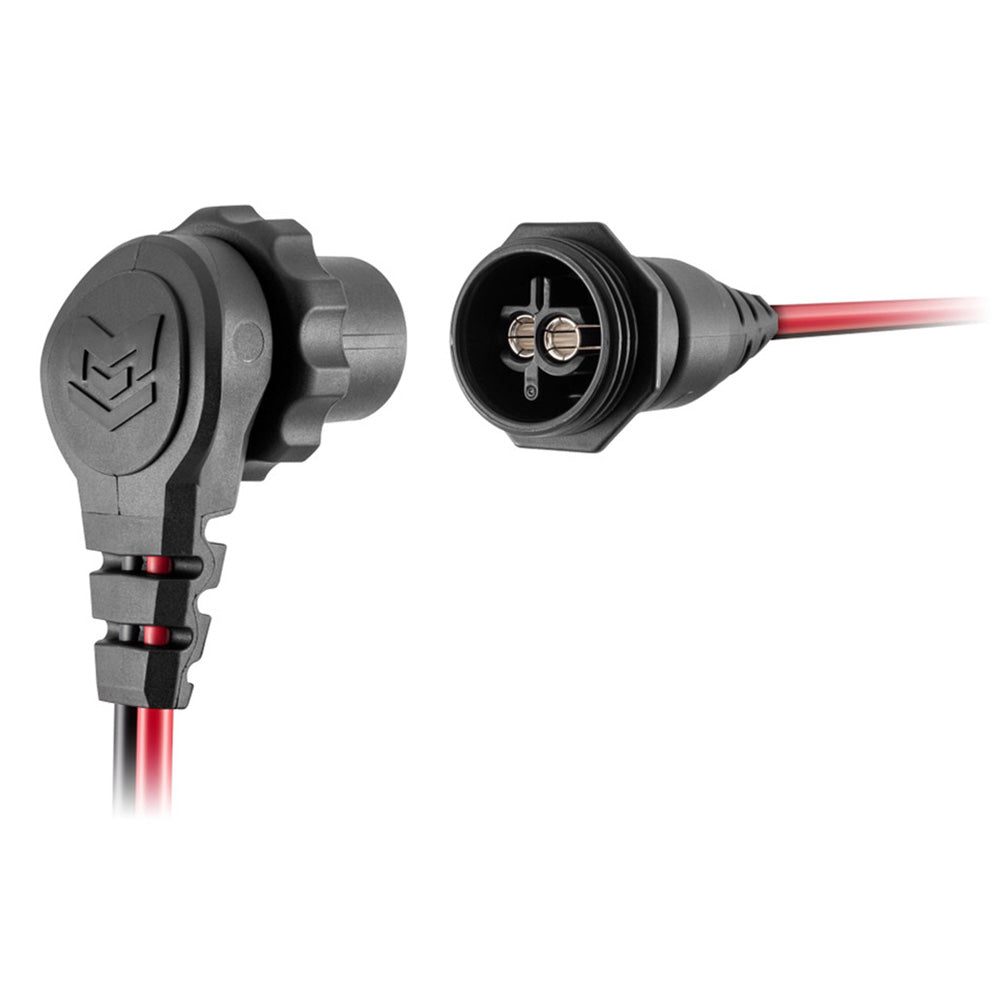

Minn Kota MKR-28 Trolling Motor Plug & Receptacle - 1865120

Key Performance Features

• High-Amp Rating: Rated for 60 Amps continuous duty, making it compatible with all 12V, 24V, and 36V trolling motor systems.

• Watertight Engineering: Features a threaded locking collar and multiple internal seals (IP68 rated) to keep out corrosion and water, even in rough, wet conditions at the bow.

• Universal Wire Compatibility: The oversized terminals can accept a wide range of wire gauges, from 10 AWG down to 6 AWG, allowing for heavy-duty battery leads.

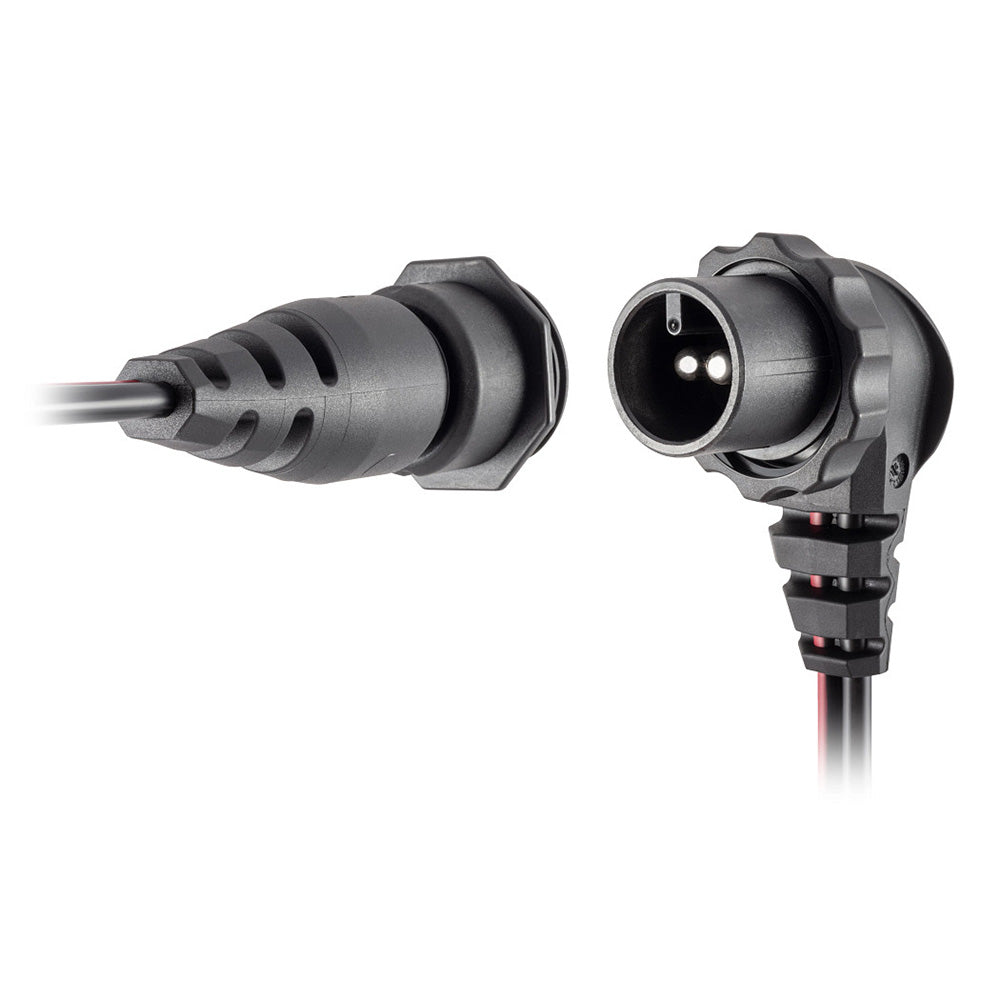

• Secure Locking: The "keyed" design ensures the plug can only be inserted one way, and the screw-on collar prevents the plug from vibrating loose while running in heavy chop or trailering.

• Gold/Silver Plating: The contacts are plated to resist the "green" copper corrosion common in saltwater and high-humidity environments.

Technical Specifications

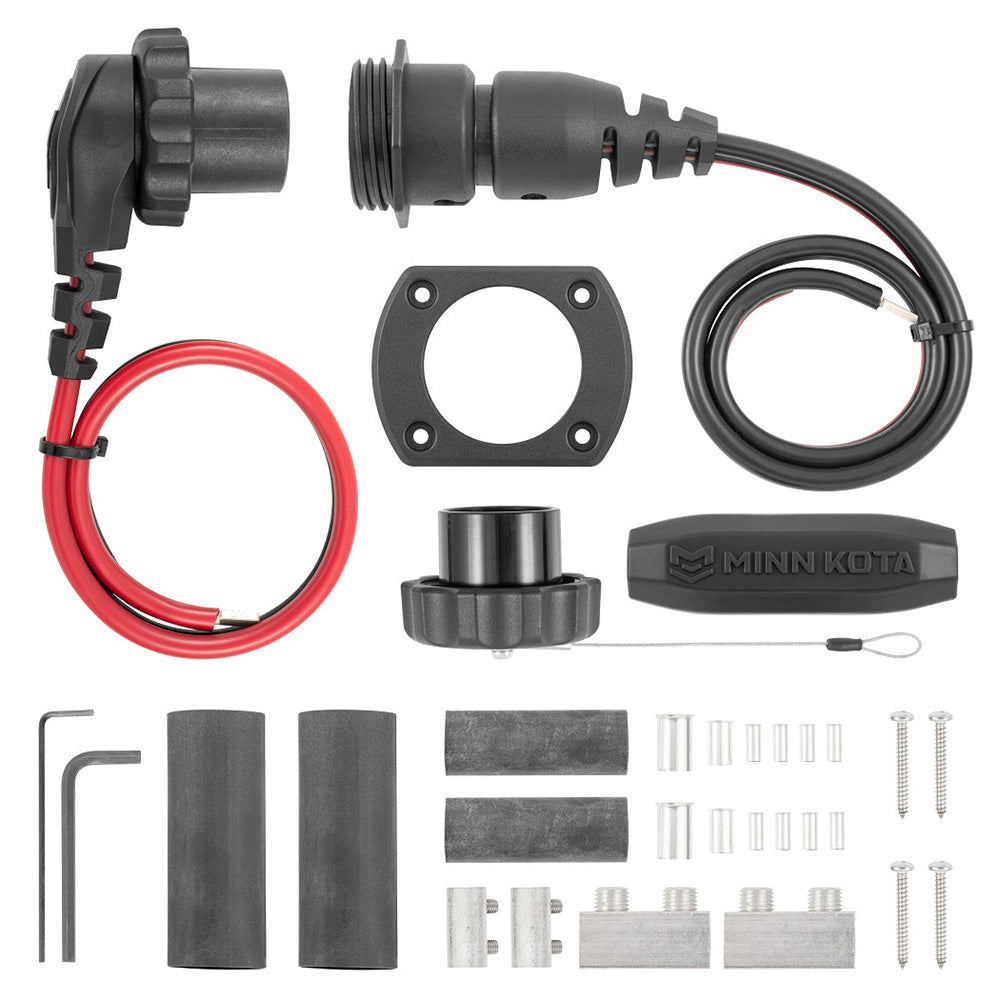

In The Box

• 1 x Trolling Motor Plug (Motor side)

• 1 x Receptacle (Boat side)

• 1 x Faceplate with Gasket

• Set of Terminal Adapters

• Installation Instructions

Installation Pro-Tips

• Stripping the Wire: Ensure you strip exactly the amount of insulation recommended in the manual. Because this plug handles high current, a loose or "frayed" wire inside the terminal can create a hot spot that could melt the housing.

• The "Drip Loop": When mounting the receptacle, try to leave a small loop in the wires behind the panel. This prevents any condensation or spray that gets behind the dash from running down the wires directly into the terminals.

• No Splicing: For the best performance, run your 6 AWG battery wires directly into the MKR-28 terminals. Avoid using butt-connectors or adapters between the battery and the plug if possible.
