Lenco LED Indicator Two-Piece Tactile Switch Kit with Pigtail for Single Actuator Systems - 15270-001
Manufacturer Part #: 15270-001
Couldn't load pickup availability
Lenco LED Indicator Two-Piece Tactile Switch Kit with Pigtail – Single Actuator Systems | Model 15270-001
The Lenco 15270-001 LED Indicator Two-Piece Tactile Switch Kit is a premium helm-mounted control solution designed specifically for single-actuator electric trim tab systems. This kit combines a responsive tactile switch with integrated LED indicator feedback, making it easy to monitor and adjust trim tab position for improved boat handling, stability, and ride comfort.
The two-piece design separates the indicator module from the control switch, allowing flexible installation options on dashboards and helm panels. The bright LED indicator lights provide real-time visual feedback of tab position—showing port and starboard movement—so you always know exactly how your trim tabs are set.
Built with marine-grade materials and a rugged tactile switch interface, this kit simplifies trim tab control while enhancing safety and visibility in any lighting condition. The included pigtail harness ensures straightforward wiring integration into 12V electric trim tab systems.
Advanced "Two-Piece" Design
Unlike older integrated switches, this system uses a separate Control Box and Keypad.
- Simplified Wiring: Only one thin cable runs from the dash to the transom area, reducing helm clutter.
-
Smart Logic: The control box handles all the heavy electrical lifting and includes built-in protection against overcurrent and short circuits.
-
Auto-Retract: A standard safety feature that automatically retracts the trim tabs to the fully "up" position when the boat's ignition is turned off, protecting the actuators during hauling or trailering.
Helm-Specific Features
-
Tactile Feedback: The buttons are designed with a crisp "click" feel, making it easy to make micro-adjustments even while wearing gloves or in rough seas.
-
Photoeye Dimming: The LEDs feature an ambient light sensor that automatically dims the display at night to preserve your night vision while remaining ultra-bright in direct sunlight.
-
Plug-and-Play: The "pigtail" design uses waterproof Deutsch connectors for a secure, corrosion-resistant connection to your actuator extension harnesses.
Technical Specifications
| Feature | Details |
| Model Number | 15270-001 |
| System Compatibility | Single Actuator (1 per tab) |
| Voltage | 12-Volt and 24-Volt Compatible |
| Display Type | High-Intensity LED Indicator |
| Bezel Size | 2.75" x 2.75" |
| Mounting Hole | 2-1/16" (Standard gauge size) |
| Safety Feature | Built-in Auto-Retract |

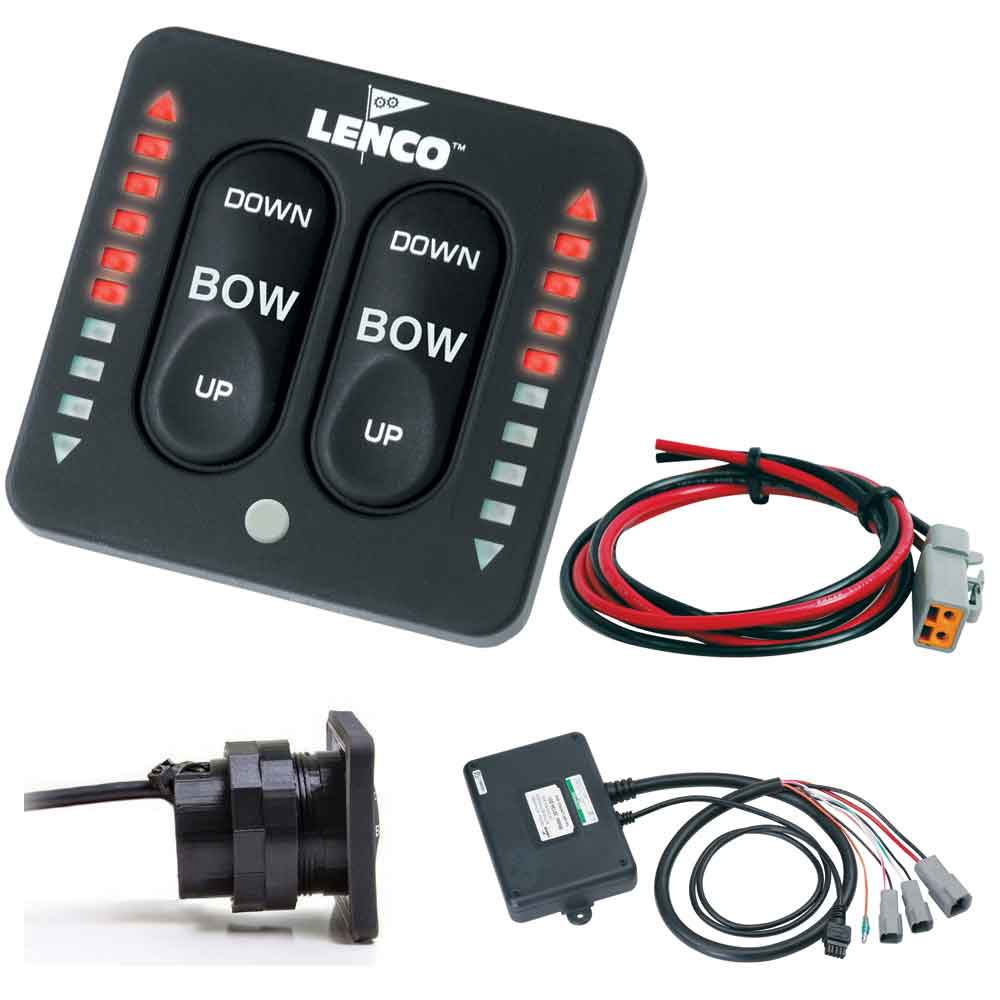

In the Box: 15270-001 Kit
-
(1) LED Indicator Keypad: With mounting hardware and gasket.
-
(1) Control Box (Brain): The central processing unit for the system.
-
(1) 36" Power Pigtail: For easy connection to the boat's power source.
-
(1) Installation Hardware Pack: Includes connectors and detailed wiring diagram.
Pro-Tip for Installation:
"When installing the 15270-001, ensure the control box is mounted in a dry, accessible location like behind the helm or in a storage locker. Although the connectors are waterproof, keeping the 'brain' of the system away from direct bilge moisture will significantly extend its service life."
Key Benefits
-
Designed for single-actuator systems—perfect for smaller boats or individual tab setups
-
LED indicator lights for real-time position feedback
-
Responsive tactile switch for confident helm control
-
Two-piece design for flexible mounting and clean helm installation
-
Pigtail harness included for easier wiring and integration
-
Marine-grade construction built to withstand saltwater environments
Features
-
Tactile control switch with positive detents for smooth operation
-
LED indicator module shows trim tab status at a glance
-
Two-piece design enables optimal placement on helm panels
-
Pigtail wiring harness for quick, straightforward installation
-
12V compatible for use with standard electric trim tab systems
-
Integrates with Lenco single-actuator trim tab setups
-
Manufactured by Lenco Marine, a trusted name in marine trim control
Specifications
-
Model Number: 15270-001
-
System Type: Two-Piece Tactile Switch Kit with LED Indicator
-
Compatibility: Designed for single-actuator electric trim tab systems
-
Voltage: 12V DC
-
Switch Type: Tactile push control with LED indicator lights
-
Mounting: Surface/flush install on helm panels
-
Harness: Included pigtail wiring harness
Ideal Applications
The Lenco 15270-001 LED Indicator Two-Piece Tactile Switch Kit is ideal for:
-
Small to mid-size boats with a single electric trim tab actuator
-
Center console vessels needing intuitive trim control
-
Boats requiring clear visual tab position feedback at the helm
-
Replacements or upgrades for worn or outdated switch kits
Upgrade your helm with the Lenco LED Indicator Two-Piece Tactile Switch Kit with Pigtail (15270-001) to enjoy precise trim tab control, real-time LED feedback, and dependable performance trusted by boaters worldwide.
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer : Lenco Marine
Manufacturer Part No : 15270-001
UPC : 874847007597
Lenco LED Indicator Two-Piece Tactile Switch Kit with Pigtail for Single Actuator Systems - 15270-001 is backordered and will ship as soon as it is back in stock.
