Boat Leveler 12vdc Universal Trim Tab Pump with Oil and Hose Fittings - 12700UNIV

Boat Leveler 12VDC Universal Trim Tab Pump with Oil and Hose Fittings – 12700UNIV

Upgrade your boat’s performance and handling with the Boat Leveler 12700UNIV 12VDC Universal Trim Tab Pump, a reliable hydraulic solution designed for smooth, precise trim tab operation. Built for durability and compatibility, this universal pump system helps you achieve better planing, improved fuel efficiency, and enhanced stability in varying water conditions.

This 12V DC trim tab pump comes pre-filled with hydraulic oil and includes essential hose fittings, making installation quick and hassle-free. Whether you're replacing an existing unit or upgrading your trim tab system, the 12700UNIV delivers consistent hydraulic pressure and dependable performance for recreational and commercial vessels alike.

Key Features

• Universal Compatibility: Includes an 18" wire harness with color-coded instructions for seamless integration with non-Insta-Trim systems.

• Reliable Performance: The pump features an adjustable pressure relief valve factory-set at 400 PSI and a built-in bypass that allows oil to circulate once tabs are fully extended, preventing motor stalls.

• Durable Solenoids: Equipped with custom-designed solenoids featuring epoxy-sealed coils to prevent humidity-induced shorting and a locking mechanism to eliminate tab drift.

• Thermal Protection: The high-torque motor includes built-in thermal overload protection to prevent damage from excessive amperage or heat buildup.

Benefits:

• Achieve faster planing and smoother rides

• Maintain better control in rough or uneven water

• Reduce engine strain and fuel consumption

• Reliable replacement for worn or failing trim tab pumps

Technical Specifications

• Voltage: 12V DC (also available in 24V and 32V).

• Max Current Draw: Never exceeds 16 Amps due to the bypass design.

• Construction: High-impact ABS plastic reservoir/housing with stainless steel hardware and aluminum pump components.

• Fittings: Includes 1/8" NPT brass barb fittings for secure, leak-proof hose connections.

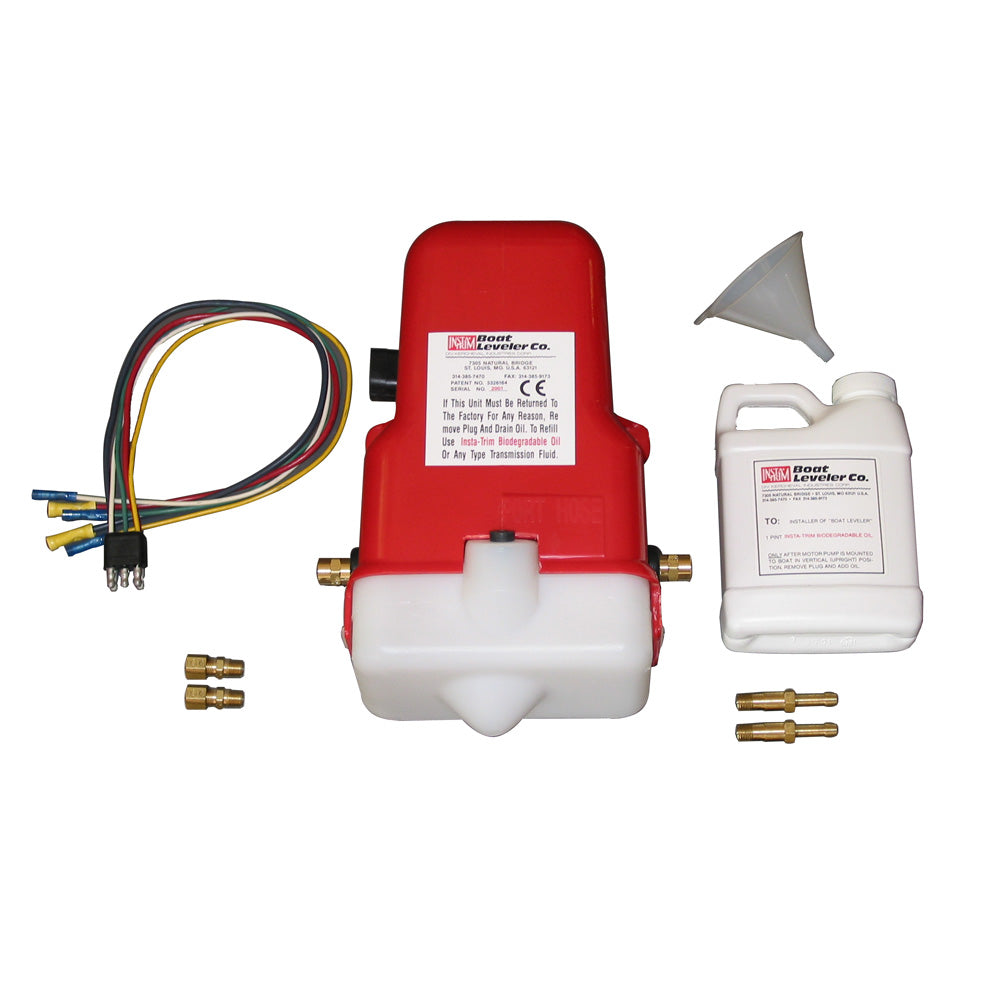

What is in the Box

• Assembled Pump Unit: Includes the motor, pump, solenoids, and integral oil reservoir.

• Installation Kit: 1 pint of biodegradable oil, funnel, and two stainless steel hose clamps.

• Hardware: Brass hose fittings and mounting screws.

• Documentation: Detailed installation instructions and cross-brand wiring guide.

Perfect for boat owners seeking dependable trim tab control, the Boat Leveler 12V Universal Pump is a trusted choice for improving overall vessel performance and handling.

Installation Tip

When retrofitting this to a different brand, use the provided color-coding guide to ensure your existing helm switch operates the tabs in the correct direction. Mount the unit in a dry location, though the ABS housing provides excellent protection against occasional washdowns and salt spray.

Manufacturer : Boat Leveler Co.
Manufacturer Part No : 12700UNIV
UPC : 000000162197
