Trident Marine 6" ID 90-Degree Blue Silicone Molded Wet Exhaust Elbow w/4 T-Bolt Clamps - 290V6000-S/S
Manufacturer Part #: 290V6000-S/S
Couldn't load pickup availability
Trident Marine 6" ID 90-Degree Blue Silicone Molded Wet Exhaust Elbow w/4 T-Bolt Clamps - 290V6000-S/S

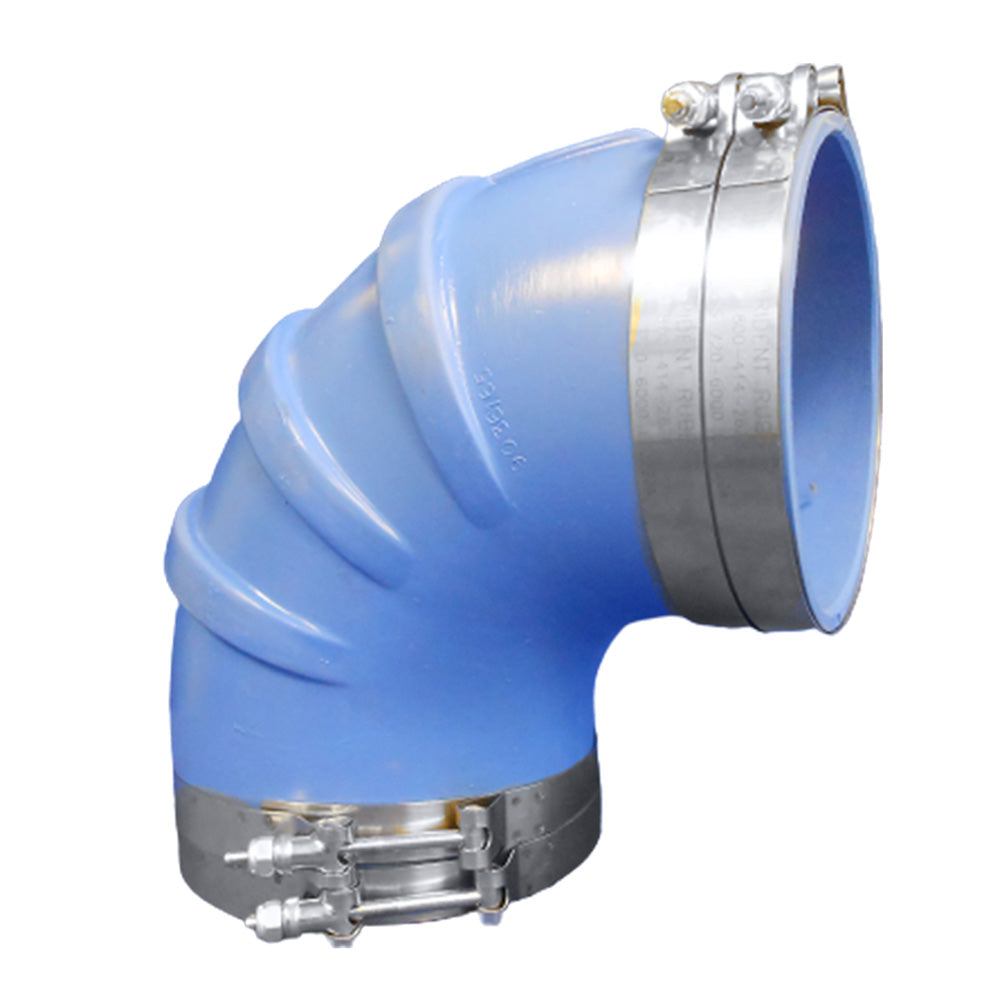

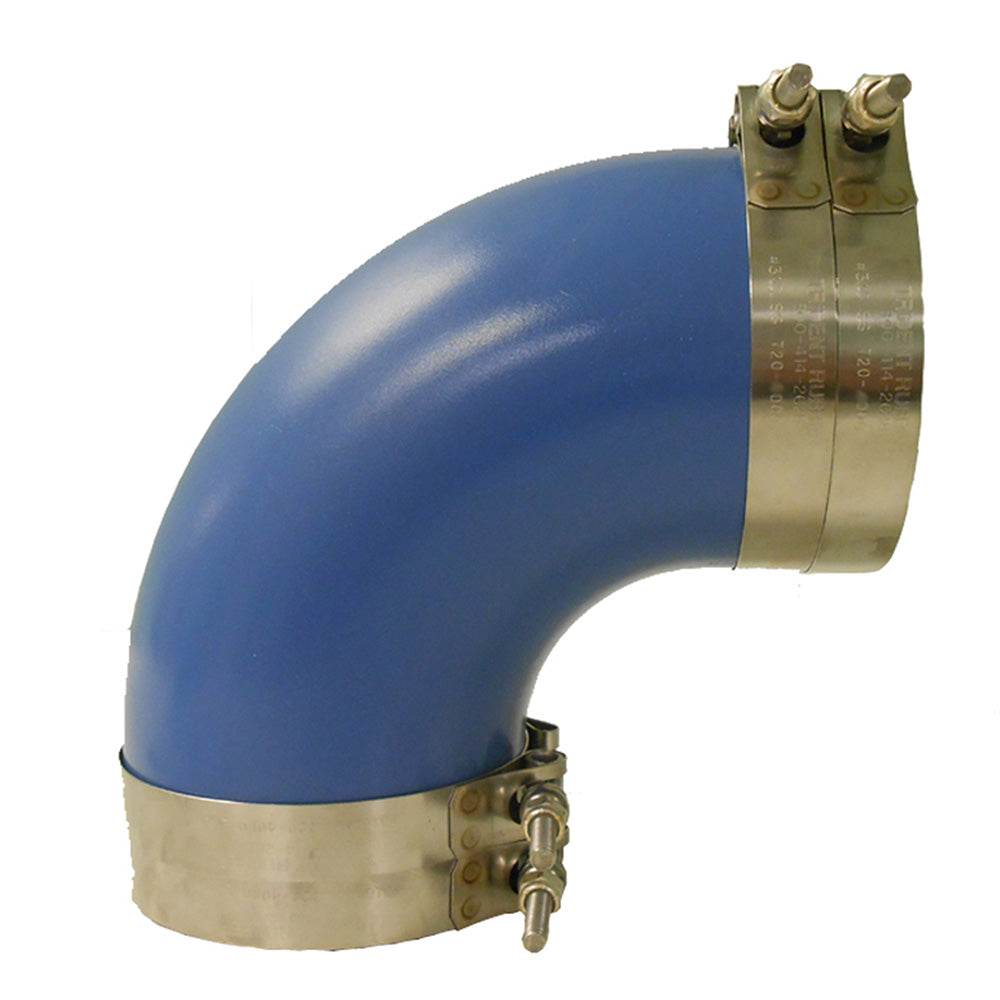

The Trident Marine 6″ ID 90-Degree Blue Silicone Molded Wet Exhaust Elbow is a heavy-duty marine exhaust solution designed for high-flow wet exhaust systems on diesel and gasoline inboard boats and generators. Built with premium silicone and engineered for rugged marine environments, this molded 90-degree elbow provides a durable, flexible connection that resists heat, saltwater corrosion, and engine vibration—making it ideal for long-term performance in demanding conditions.
Premium Reinforced Silicone Construction
Constructed with multi-layer reinforced silicone, this wet exhaust elbow offers superior resistance to high temperatures, cracking, and deterioration compared to standard rubber hoses. The blue silicone material withstands the thermal and chemical stresses common in wet exhaust systems, allowing safe and reliable operation over many seasons.
Precision-Molded 90° Bend
The 90-degree shape provides a smooth internal flow path while enabling tight routing in compact engine compartments. This design helps maintain consistent inside diameter through the bend, reducing turbulence and back pressure for more efficient exhaust flow. Whether routing around structural components or navigating tight spaces, the molded elbow simplifies installation and improves system performance.
Heavy-Duty T-Bolt Clamps Included
This assembly includes four stainless steel T-bolt clamps engineered for maximum holding power and corrosion resistance. T-bolt clamps deliver uniform clamping force around the hose, ensuring a leak-free seal even under high pressure and temperature cycles. The stainless construction ensures long service life in marine environments.
Ideal Marine Applications:
-
Marine wet exhaust systems for diesel and gasoline engines
-
Marine generator exhaust connections
-
Tight-radius exhaust routing in engine rooms
-
High-flow wet exhaust installations
Key Features
-
Extreme Temperature Resistance: Rated for continuous duty up to 177°C (350°F), providing a significant safety margin over traditional black rubber.
-
Superior Durability: Multi-ply fabric reinforcement ensures high burst strength and long-term resistance to ozone, salt, and oil.
-
Smooth Flow Design: The molded 90-degree interior provides a consistent diameter throughout the bend to minimize exhaust backpressure.
-
Premium T-Bolt Clamps: Includes four 316 Stainless Steel T-Bolt Clamps, providing significantly higher sealing pressure than standard worm-gear clamps.
-
Compliance: Meets or exceeds SAE J2006, ABYC, and NMMA standards for marine wet exhaust systems.
Technical Specifications
| Feature | Details |
| Model Number | 290V6000-S/S |
| Inside Diameter (ID) | 6" (152 mm) |
| Angle | 90 Degrees |
| Material | High-Temp Multi-ply Reinforced Silicone |
| Max Temperature | 177°C (350°F) |
| Hardware | (4) 316 Stainless Steel T-Bolt Clamps |
In The Box
-
1x Trident Marine 6" 90-Degree Silicone Elbow
-
4x Heavy-Duty 316 Stainless Steel T-Bolt Clamps
For a professional-grade wet exhaust connection that combines strength, flexibility, and marine durability, the Trident Marine 6″ ID 90-Degree Blue Silicone Molded Wet Exhaust Elbow delivers dependable performance and a secure, corrosion-resistant fit every time.
Manufacturer : Trident Marine
Manufacturer Part No : 290V6000-S/S
