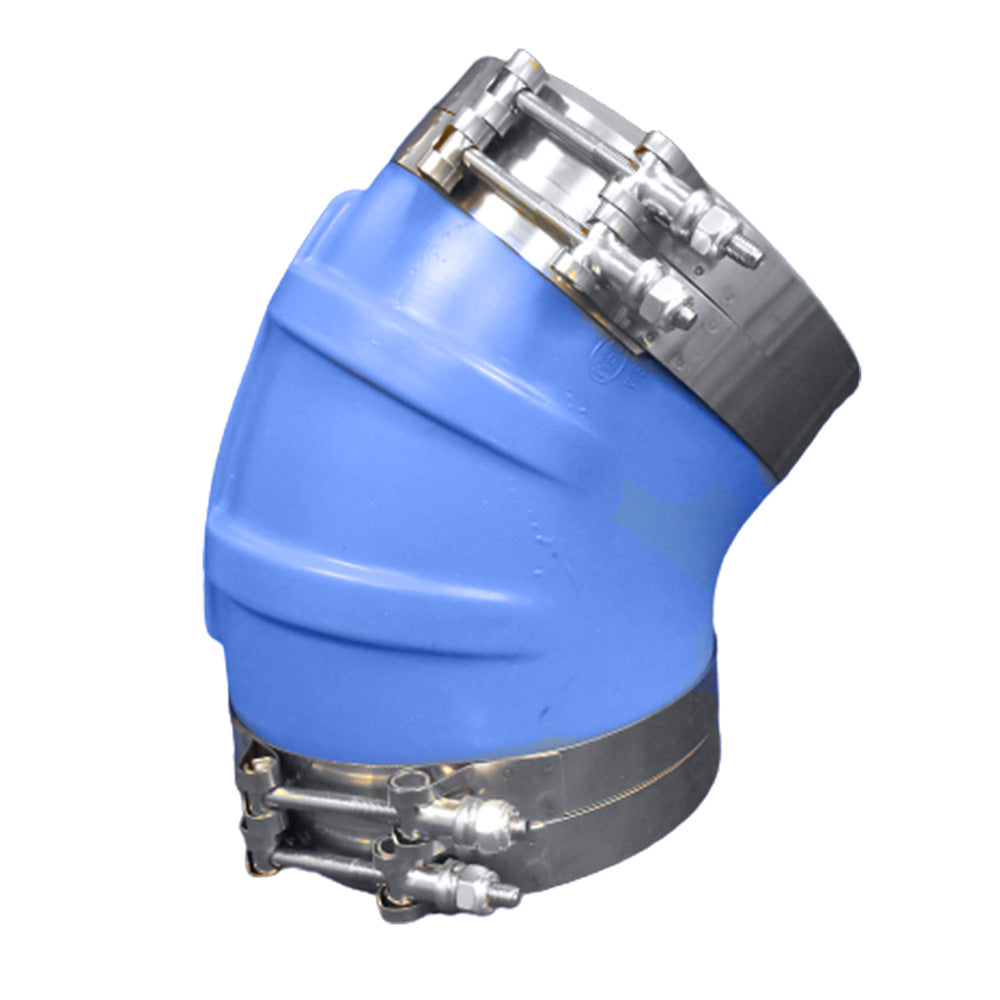

Trident Marine 6" ID 45-Degree Blue Silicone Molded Wet Exhaust Elbow w/4 T-Bolt Clamps - 240V6000-S/S
Manufacturer Part #: 240V6000-S/S
Couldn't load pickup availability
Trident Marine 6" ID 45-Degree Blue Silicone Molded Wet Exhaust Elbow w/4 T-Bolt Clamps - 240V6000-S/S
The Trident Marine 6″ ID 45-Degree Blue Silicone Molded Wet Exhaust Elbow is a heavy-duty exhaust system component engineered for high-performance marine diesel and gasoline engines. Designed to handle the extreme heat, vibration, and corrosive conditions found in wet exhaust systems, this molded silicone elbow provides a reliable, leak-free solution for directing exhaust flow while allowing for tight-radius turns in engine compartments.
High-Temperature Silicone Construction
Manufactured from premium, multi-ply reinforced silicone, this wet exhaust elbow offers superior heat resistance and flexibility compared to traditional rubber exhaust hose. The silicone construction resists cracking, hardening, and deterioration caused by high exhaust temperatures, saltwater exposure, oil mist, and engine vibration—making it ideal for demanding marine applications and long-term reliability.
Molded 45-Degree Elbow for Clean Installations
The precision-molded 45-degree bend ensures smooth exhaust flow with minimal turbulence and restriction. This allows for cleaner routing in tight engine rooms where straight hose runs aren’t possible. The molded shape helps maintain internal diameter through the bend, supporting efficient exhaust gas and cooling water flow.
Secure, Heavy-Duty T-Bolt Clamps Included
This kit includes four stainless steel T-bolt clamps for a secure, high-clamping-force connection at each end of the elbow. T-bolt clamps provide even pressure around the hose circumference, helping prevent leaks and blow-offs under high pressure and temperature conditions common in wet exhaust systems.
Ideal Applications:
-
Marine wet exhaust systems
-
Diesel and gasoline inboard engines
-
Generator exhaust routing
-
High-temperature exhaust connections requiring tight turns
Key Features
-
High-Temp Silicone: Rated for continuous operating temperatures up to 177°C (350°F), far exceeding standard EPDM rubber limits.
-
Corrosion-Resistant Hardware: Includes four heavy-duty, 316 Stainless Steel T-Bolt Clamps for a uniform, high-torque seal that won't rust or slip.
-
Vibration Absorption: The flexible silicone construction absorbs engine movement and hull vibration, preventing cracks in expensive fiberglass exhaust components.
-
Blue Gloss Finish: Not only looks professional in the engine room but is also easy to wipe clean of oil and grime.
-
Industry Compliance: Meets or exceeds SAE J2006 standards for marine wet exhaust systems.
Technical Specifications
| Feature | Details |
| Model Number | 240V6000-S/S |
| Inside Diameter (ID) | 6" (152 mm) |
| Angle | 45 Degrees |
| Material | Multi-ply Reinforced Blue Silicone |
| Temperature Range | -54°C to +177°C (-65°F to +350°F) |
| Clamps Included | (4) 316 Stainless Steel T-Bolt Clamps |
In The Box
-
1x Trident Marine 6" 45-Degree Silicone Elbow
-
4x 316 Stainless Steel T-Bolt Clamps
When reliability matters in high-heat marine exhaust systems, the Trident Marine 6″ ID 45-Degree Blue Silicone Molded Wet Exhaust Elbow delivers professional-grade performance, durability, and a clean, secure installation you can trust on every run.
Manufacturer : Trident Marine
Manufacturer Part No : 240V6000-S/S
Trident Marine 6" ID 45-Degree Blue Silicone Molded Wet Exhaust Elbow w/4 T-Bolt Clamps - 240V6000-S/S is backordered and will ship as soon as it is back in stock.
