Raymarine RV-100 RealVision 3D All-In-One Transom Mount Transducer - A80464
Manufacturer Part #: A80464
Couldn't load pickup availability

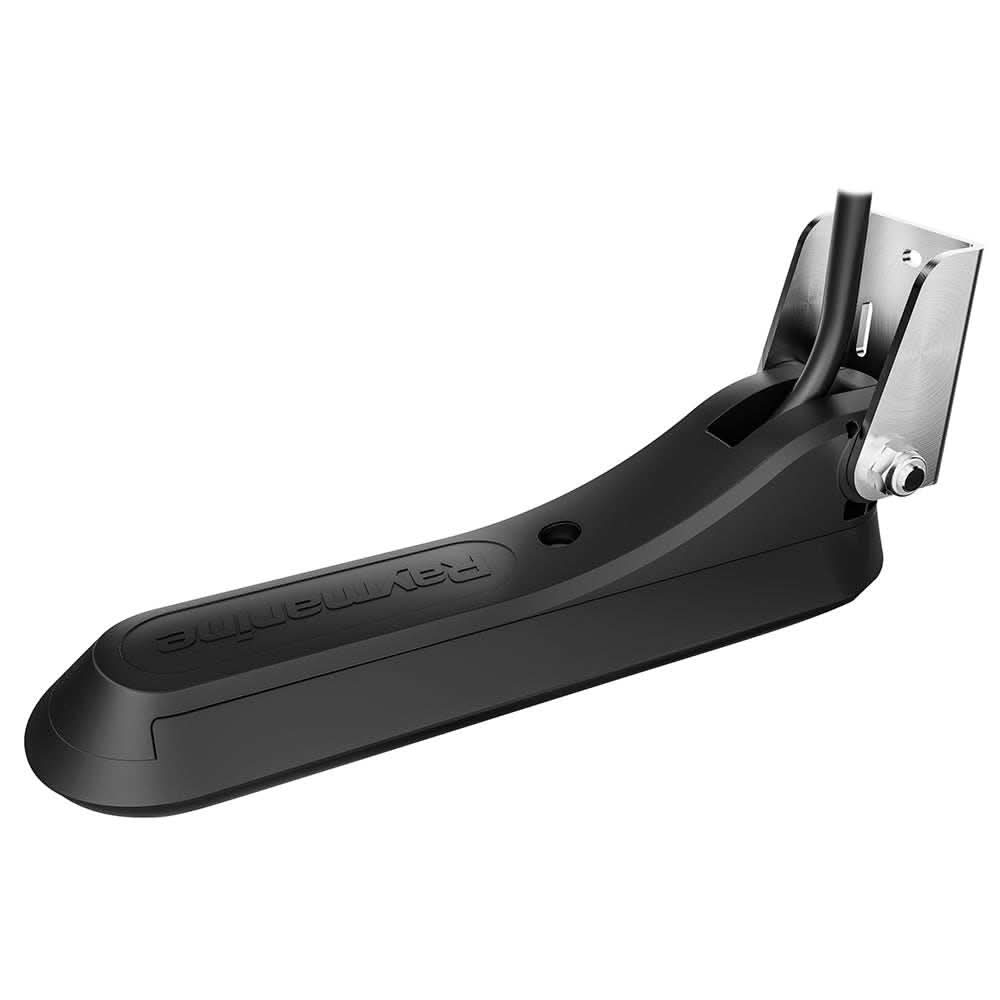

Raymarine RV-100 RealVision 3D All-In-One Transom Mount Transducer - A80464
The Raymarine RV-100 RealVision 3D Transducer (A80464) is a versatile, all-in-one sonar solution designed for transom mounting on outboard-powered boats. It allows you to identify structures and locate fish with the clarity of RealVision 3D sonar through a single, easy-to-install sensor.
Multi-Channel Imaging
The RV-100 is a 4-channel, Wide Spectrum CHIRP transducer system that provides several views simultaneously:
- RealVision 3D: Gives you a lifelike, 3D representation of the underwater world.
-
SideVision: Scans port and starboard for fish and structure up to 300 feet away.
-
DownVision: Delivers photo-like detail of the bottom directly beneath the boat.
-
High-Frequency CHIRP: Provides traditional conical sonar for tracking bait and trophy fish.
Key Features and Performance
-
Internal AHRS: Includes a built-in Attitude Heading Reference System that stabilizes the 3D imagery by automatically compensating for vessel motion like pitch and roll.
-
Rugged Design: Features a kick-up bracket to prevent damage from floating debris or when trailering your boat.
-
Integrated Sensors: Built-in fast-response water temperature sensor for accurate readings.
-
Compatibility: Designed for direct connection to Raymarine Axiom and Axiom Pro multifunction displays.
Technical Specifications
-
Part Number: A80464
-
Installation: Transom Mount
-
Material: High-Impact Plastic
-
Max Depth Range: 3D: 300ft | DownVision: 600ft | Conical CHIRP: 900ft
-
Cable Length: 8 Meters (26.2 ft)
What’s in the Box?
- RV-100 All-In-One Transom Mount Transducer with 8-meter (26-foot) cable
- Transom bracket
- Mounting hardware
- Installation instructions
Raymarine RV-100 RealVision 3D All-In-One Transom Mount Transducer - A80464 is backordered and will ship as soon as it is back in stock.
