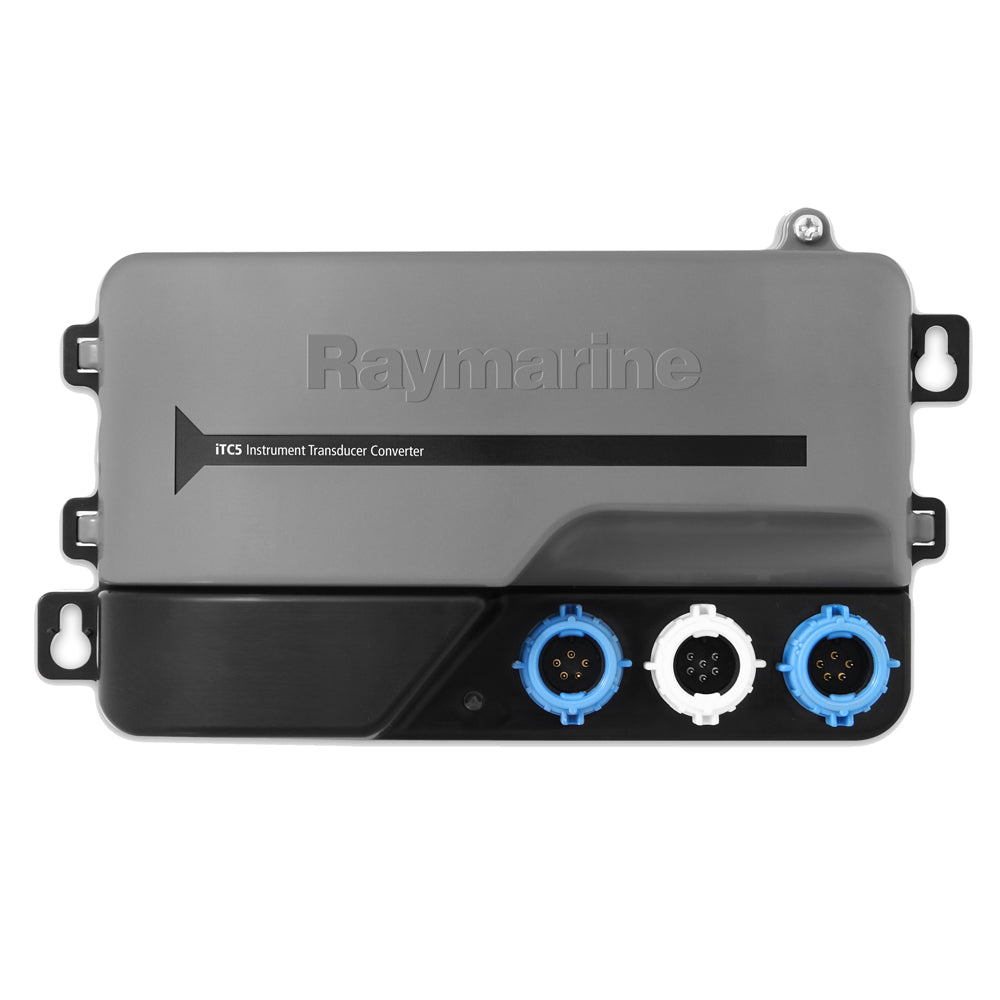

Raymarine ITC‑5 Analog to Digital Transducer Converter – SeaTalk NG (E70010)

The Raymarine ITC-5 Analog to Digital Transducer Converter (Model E70010) is an all-in-one instrument signal converter that lets you integrate legacy analog transducers (depth, speed/temperature, wind, compass, rudder angle) into modern SeaTalk NG/NMEA 2000 digital instrument networks. Designed for use with Raymarine’s i70 and ST70 Plus digital instruments, it eliminates the need for costly “smart” transducers or multiple analog pods by converting up to five analog signals into SeaTalk NG-ready data, while also providing power and network connectivity for the sensors. This converter makes upgrading older systems fast, clean, and cost-effective — preserving useful existing transducers while modernizing your instrument suite.

🔧 Key Specifications

• Model: Raymarine ITC-5 Analog to Digital Transducer Converter – E70010

• Converter Type: Analog-to-digital transducer converter (SeaTalk NG/NMEA 2000)

• Supported Sensors: Depth, speed/temperature, wind, compass, and rudder angle analog transducers

• Output Protocol: SeaTalk NG (native) and NMEA 2000 compatible

• Voltage: 9 – 16 V DC (nominal 12 V)

• Power Consumption: Typical ~1.5 W

• Current Draw: < 150 mA peak operating current

• Transducer Inputs: Up to 5 analog transducer connections via spade terminals

• Network Connections: SeaTalk NG backbone + 1 x SeaTalk NG spur cable included

• Operating Temp: ~–15 °C to +55 °C (5 °F to 131 °F)

• Storage Temp: ~–25 °C to +70 °C (–13 °F to +158 °F)

• Humidity: Max. 95%

• Splash Resistance: IPx2 splash proof

• LEN (Load Equivalency Number): 3 (NMEA 2000 network)

⭐ Key Features

• Analog to Digital Conversion: Converts up to five traditional analog signals (depth, speed/temperature, wind, compass, rudder) to SeaTalk NG/NMEA 2000 digital data, enabling legacy sensors to work with modern digital displays.

• Simplified Network Integration: Connects directly into a SeaTalk NG backbone and supplies both power and data to sensors — reducing wiring clutter and eliminating the need for multiple pods.

• Preserve Legacy Transducers: Ideal for upgrading older Raymarine systems without replacing useful analog transducers or installing costly smart sensor upgrades.

• Compact & Versatile: Ultra-compact design for flexible mounting and easy additions to existing SeaTalk NG networks.

• Supports Multiple Sensor Types: Works with a broad range of legacy transducers (ST30, ST40, ST50, ST60, ST80, ST290 series) including compass modules and rudder feedback sensors.

• Calibration & Control: Full calibration and alarms are controlled through i70 or ST70 Plus digital displays (other displays like ST40/i40/i50/i60/ST60+ have limited or no calibration functions with the ITC-5).

Manufacturer : Raymarine
Manufacturer Part No : E70010
UPC : 723193701164
