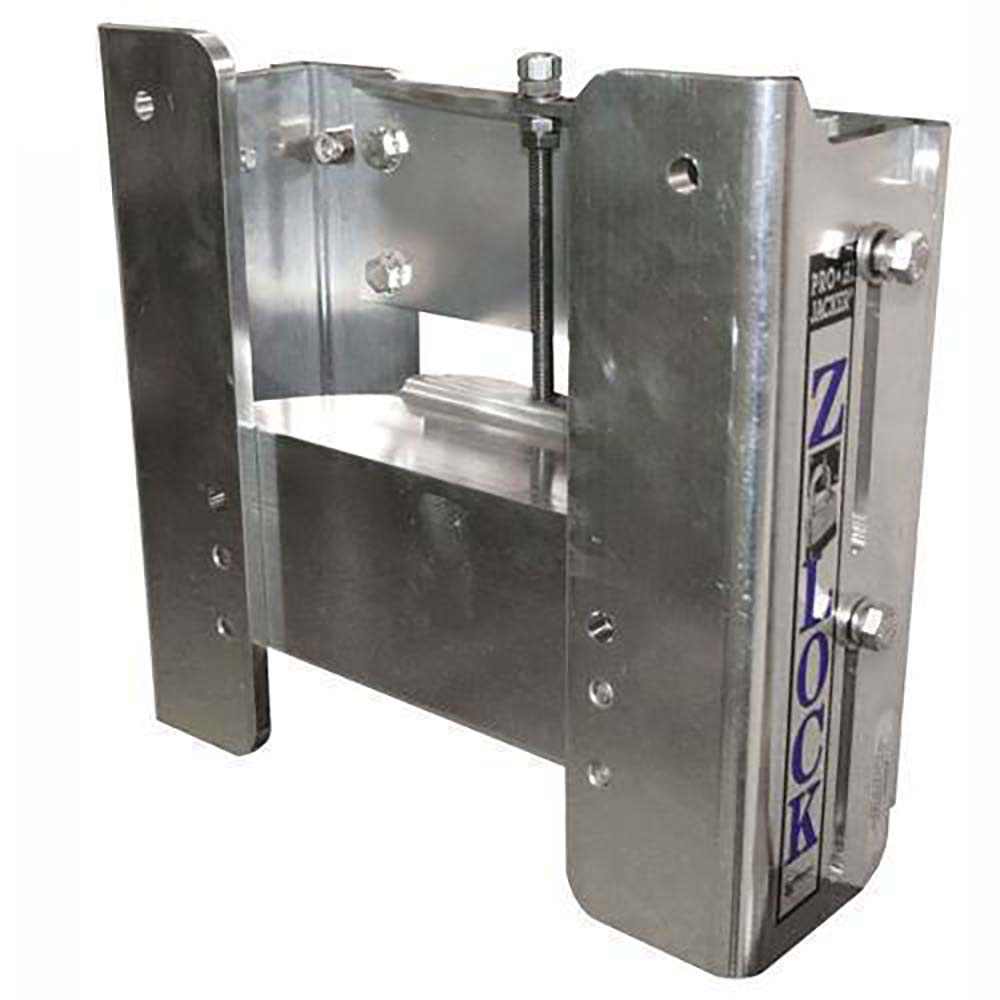

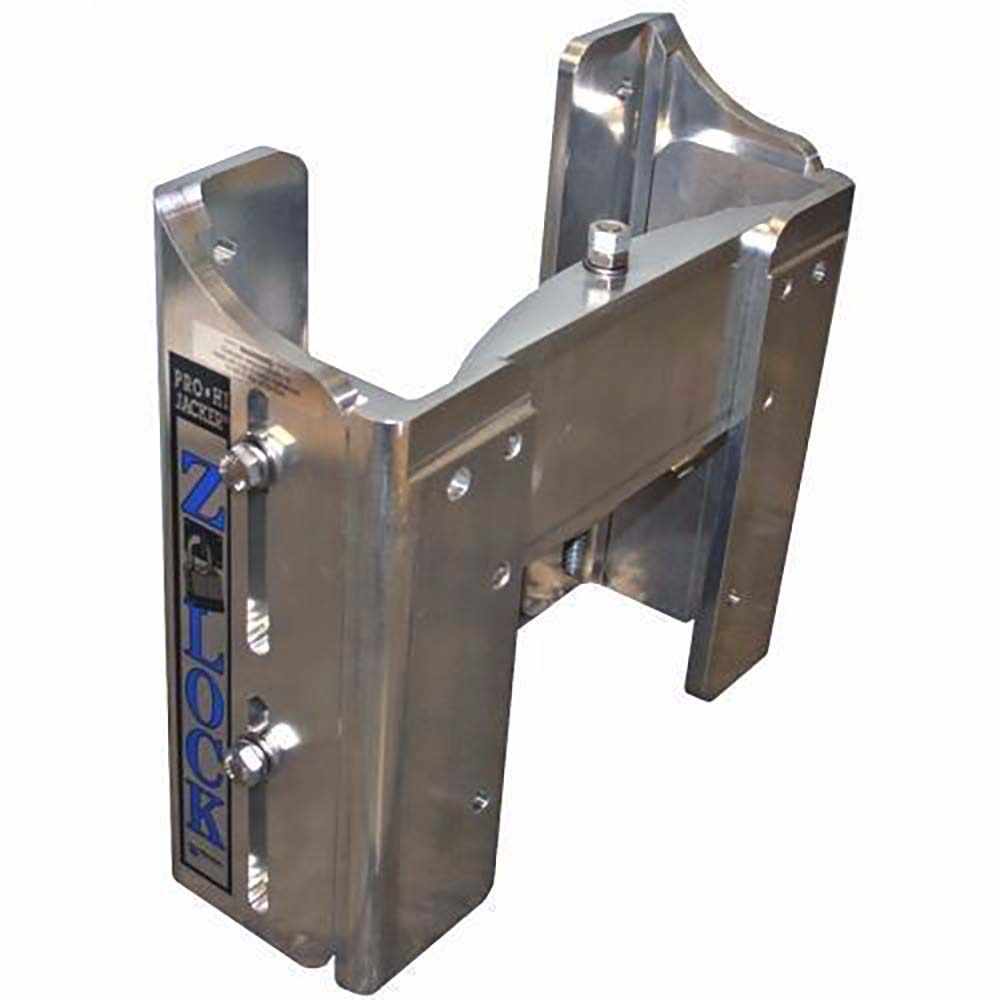

T-H Marine Z-Lock 8" Set Back Manual Single Adjust Jack Plate - JPZ-8-DP
Manufacturer Part #: JPZ-8-DP
Couldn't load pickup availability
T-H Marine Z-Lock 8" Set Back Manual Single Adjust Jack Plate – JPZ-8-DP
The T-H Marine Z-Lock 8" Set Back Manual Jack Plate (JPZ-8-DP) is designed for boaters who want maximum setback and precise engine height control without the added cost or complexity of hydraulic systems. Ideal for performance-focused and shallow-water applications, this manual jack plate allows you to fine-tune engine height to improve hole shot, top-end speed, and overall handling.
Equipped with Z-Lock™ single-adjust technology, the jack plate securely locks the outboard engine in place to prevent slippage during high-speed runs or under heavy loads. The 8-inch setback provides increased leverage and improved hull balance, enhancing propeller efficiency and allowing better trim and lift. Constructed from high-strength aluminum and finished in a polished aluminum coating, the Z-Lock jack plate offers excellent corrosion resistance and long-term durability in both freshwater and saltwater environments.
Proudly made in the USA, T-H Marine Z-Lock jack plates are trusted by anglers and performance boaters for their strength, reliability, and straightforward adjustability.
Key Features
-
8" setback for maximum leverage and performance gains
-
Manual single-adjust design for precise engine height tuning
-
Z-Lock™ locking system prevents unwanted engine movement
-
High-strength aluminum construction
-
Polished aluminum finish for corrosion resistance and premium appearance
-
Lightweight yet strong design
-
Simple installation and adjustment
-
Made in the USA
Key Performance Features
-
Z-Lock Interlocking Design: This plate features a unique interlocking side rail design that eliminates the side-to-side movement and vibration common in lesser manual plates.1 It provides the rock-solid strength of a permanent mount with the flexibility of a jack plate.
-
Single-Bolt Adjustment: Unlike traditional manual plates that require adjusting bolts on both sides, the Z-Lock uses a single top-mounted adjustment bolt. This allows you to raise or lower your engine height quickly and evenly using a single wrench.
-
Premium Construction: It is machined from 1/2" aircraft-grade aluminum and finished with a polished "DP" (Dolphin Polished) coating, offering excellent corrosion resistance and a high-end look for your transom.
-
High Horsepower Capacity: This plate is rated to support the heaviest modern outboards, including high-torque four-strokes up to 300 HP.
Technical Specifications
-
Setback: 8 Inches
-
Vertical Travel: Up to 5 inches
-
Material: 6061-T6 Aluminum
-
Finish: Polished Aluminum
-
Engine Rating: Up to 300 HP
What's in the Box
The JPZ-8-DP is shipped as a complete mechanical assembly:
-
Manual Jack Plate: Pre-assembled 8" setback Z-Lock frame.
-
Adjustment Hardware: Integrated heavy-duty stainless steel adjustment bolt and locking side bolts.
-
Instruction Manual: Guidelines for mounting and finding your boat's "sweet spot."
Applications
-
Bass boats
-
Bay boats
-
Flats boats
-
Performance outboard boats
-
Shallow-water and tournament fishing boats
Why Choose the Z-Lock 8" Manual Jack Plate
The T-H Marine Z-Lock JPZ-8-DP is ideal for boaters who want significant performance improvements with a simple, manual solution. Its increased setback, secure locking system, and polished aluminum construction make it a dependable upgrade for a wide range of outboard-powered boats.
Summary for the User
The Z-Lock 8" is the ideal "set-it-and-forget-it" choice for boaters who want to optimize their engine height without the cost of a hydraulic system. The 8-inch setback is particularly effective on larger bass boats or performance hulls that need more bow lift to reach their maximum potential.
Installation Tip: When mounting the plate to your transom, always use high-quality marine-grade sealant in the bolt holes to prevent water intrusion. To find the perfect height, adjust the plate in 1/4-inch increments and monitor your water pressure and GPS speed during testing.
