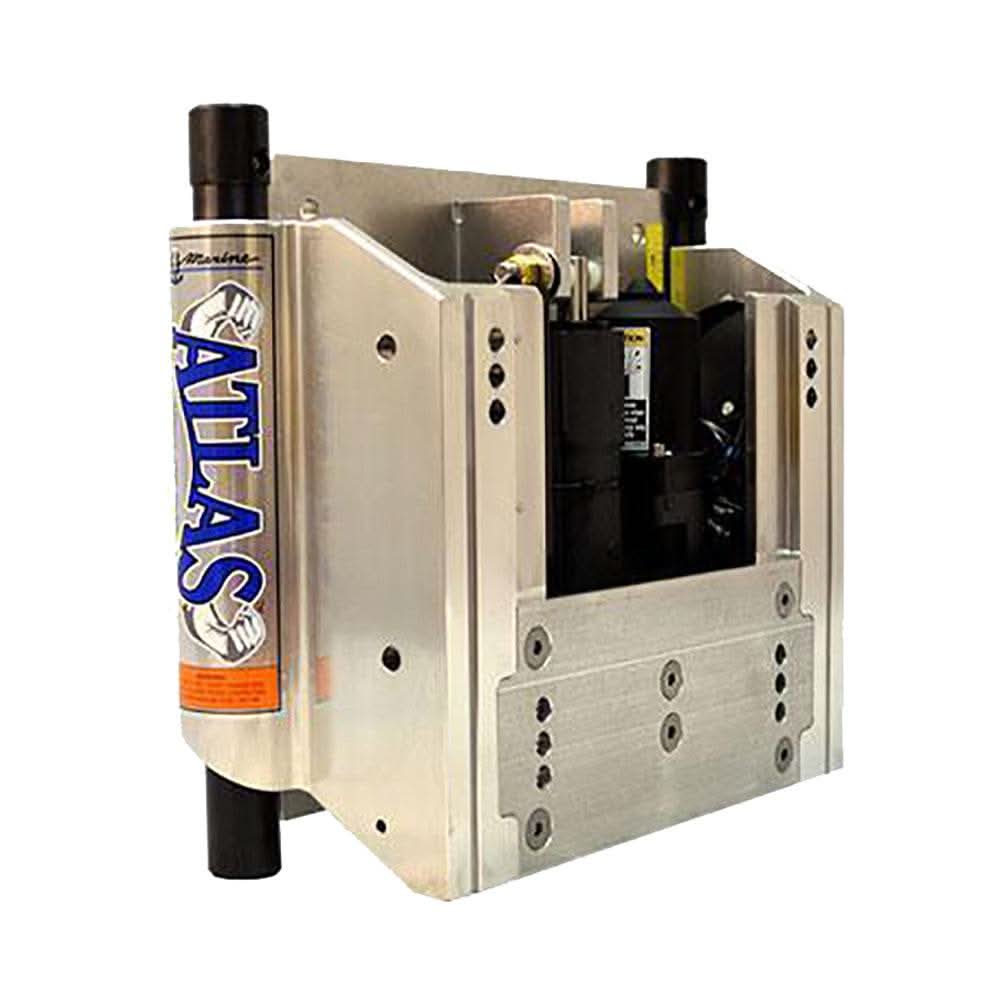

T-H Marine ATLAS 6" Set Back Hydraulic Jack Plate STD Polished - AHJC-6V-DP

T-H Marine ATLAS 6" Set Back Hydraulic Jack Plate – STD Duty Polished – AHJC-6V-DP

The T-H Marine ATLAS 6" Set Back Hydraulic Jack Plate (AHJC-6V-DP) delivers precision engine height adjustment, improved boat performance, and reliable strength in a sleek polished aluminum finish. Designed for outboard engines up to 300 HP, this standard-duty hydraulic jack plate allows boaters to fine-tune propeller depth on the fly for optimal speed, fuel efficiency, and handling in varying water conditions.

Built from aircraft-grade aluminum and engineered with ATLAS’s proven hydraulic lifting system, this jack plate provides smooth, quiet, and dependable vertical movement. The 6-inch setback improves leverage and hull performance, helping boats achieve faster hole shots, higher top speeds, and improved shallow-water operation. Whether you’re fishing, cruising, or running performance boats, the ATLAS jack plate gives you total control at the push of a button.

Proudly made in the USA, T-H Marine ATLAS jack plates are trusted by tournament anglers, boat builders, and performance enthusiasts for their durability, precision, and clean installation.

Key Performance Features

• Self-Contained Hydraulics: Unlike older jack plates, the ATLAS features an internal actuator, meaning there are no hydraulic pumps or reservoirs to mount inside the boat. This simplifies installation and saves valuable bilge space.

• Fast & Powerful Lift: The heavy-duty actuator can lift the heaviest V6 outboards—including high-torque four-strokes—from bottom to top in under 8 seconds.

• Rodless Holeshot Design: The plate utilizes high-tech self-lubricating polymer rods and bushings that are 4x harder than bronze. This "rodless" design ensures the plate moves smoothly without the need for frequent greasing.

• Polished Finish: The "DP" (Dolphin Polished) finish provides a high-shine aesthetic that complements premium bass boats and performance vessels while offering excellent corrosion resistance.

Technical Specifications

• Setback: 6 Inches

• Finish: Polished Aluminum

• Engine Rating: Up to 300hp (Standard Duty)

• Weight: Approximately 51 lbs

• Lift Height: Up to 5.75 inches of vertical travel

What's in the Box

The AHJC-6V-DP kit is a complete hydraulic system ready for installation:

• Jack Plate Assembly: Pre-assembled 6" setback plate with internal hydraulic actuator.

• Wire Harness: Marine-grade wiring with necessary relays and connectors.

• Control Switch: Standard dash-mounted rocker switch for up/down operation.

• Mounting Hardware: High-strength stainless steel bolts for securing the plate to the transom.

Benefits

• Improves hole shot, top speed, and fuel efficiency

• Optimizes engine height for shallow water operation

• Enhances handling and propeller performance

• Allows quick adjustments for changing load or water conditions

Applications

• Bass boats

• Bay boats

• Flats boats

• Performance outboard boats

• Freshwater and saltwater installations

Why Choose the ATLAS 6" Hydraulic Jack Plate

The T-H Marine ATLAS AHJC-6V-DP offers a perfect balance of strength, precision, and ease of use. Its standard-duty construction supports most modern outboards, while the polished finish provides lasting corrosion protection and a clean, professional look. For boaters who demand maximum control and performance, ATLAS jack plates are a proven upgrade.

Summary for the User

The ATLAS series is widely considered the industry standard for hydraulic jack plates because of its reliability and speed. The 6-inch setback is the most popular size as it moves the propeller into "cleaner" water for better bite without significantly shifting the boat's center of gravity.

Installation Tip: To maximize the performance of this plate, consider adding a Digital Gauge Kit so you can see your exact plate height from the helm, allowing you to find the "sweet spot" for every water condition.
