Perko 7" Searchlight - 12V - Chrome - 0314C0712V

What is in the Box

The 0314C0712V kit is a complete assembly that includes:

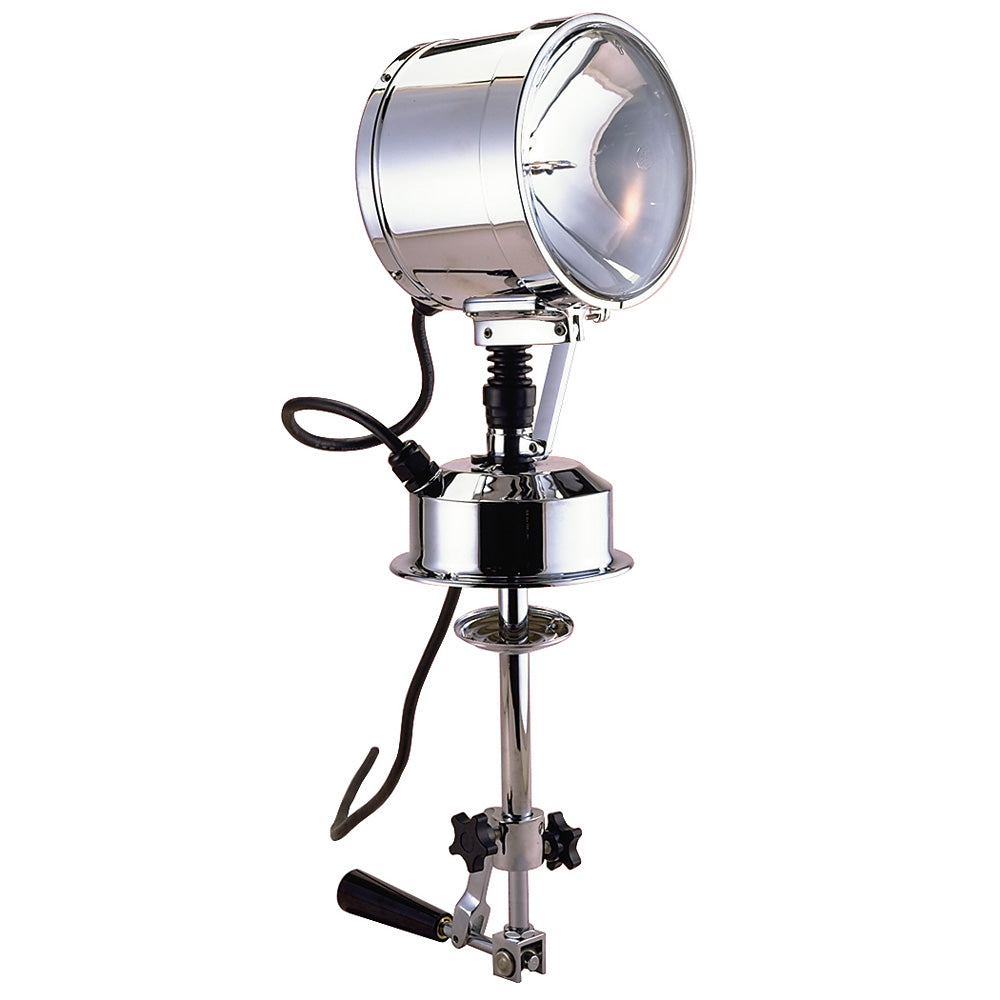

• Searchlight Head: A 7-inch diameter head constructed of chrome-plated brass.

• Sealed Beam Bulb: A 100-watt, 12V bulb (No. 043300312V) pre-installed and ready for use.

• Pilot House Control Assembly: The lever-action handle and control tube for internal mounting.

• Mounting Template: A physical guide to help you drill the precise holes required for the control tube and wiring.

• Hardware & Gaskets: Necessary screws and sealing components for a watertight surface installation.

Key Features

• Full Range of Motion: Provides a massive 380-degree horizontal rotation and a 70-degree vertical sweep, controlled entirely by the lever handle.

• Marine-Grade Durability: Built with a corrosion-resistant brass body and tin-plated electrical contacts to withstand constant exposure to saltwater spray.

• Versatile Mounting: The control tube is designed to accommodate ceiling thicknesses of up to 5 inches.

• Continuous Sweep: The lever can be set for a continuous back-and-forth sweep or used for pinpoint manual positioning.

Technical Specifications

• Brightness: 250,000 Candlepower (Candela).

• Range: Approximately 5/8 of a mile.

• Voltage: 12V DC.

• Wattage: 100 Watts.

• Dimensions: 12" H x 13" W x 28" L (Box Dimensions); Weight: 13 lbs.

Installation Tip

When installing, ensure you use the provided mounting template carefully. Because this unit requires drilling through the roof of your pilothouse, applying a high-quality marine sealant around the base is critical to prevent leaks into your cabin during heavy rain or high seas.
