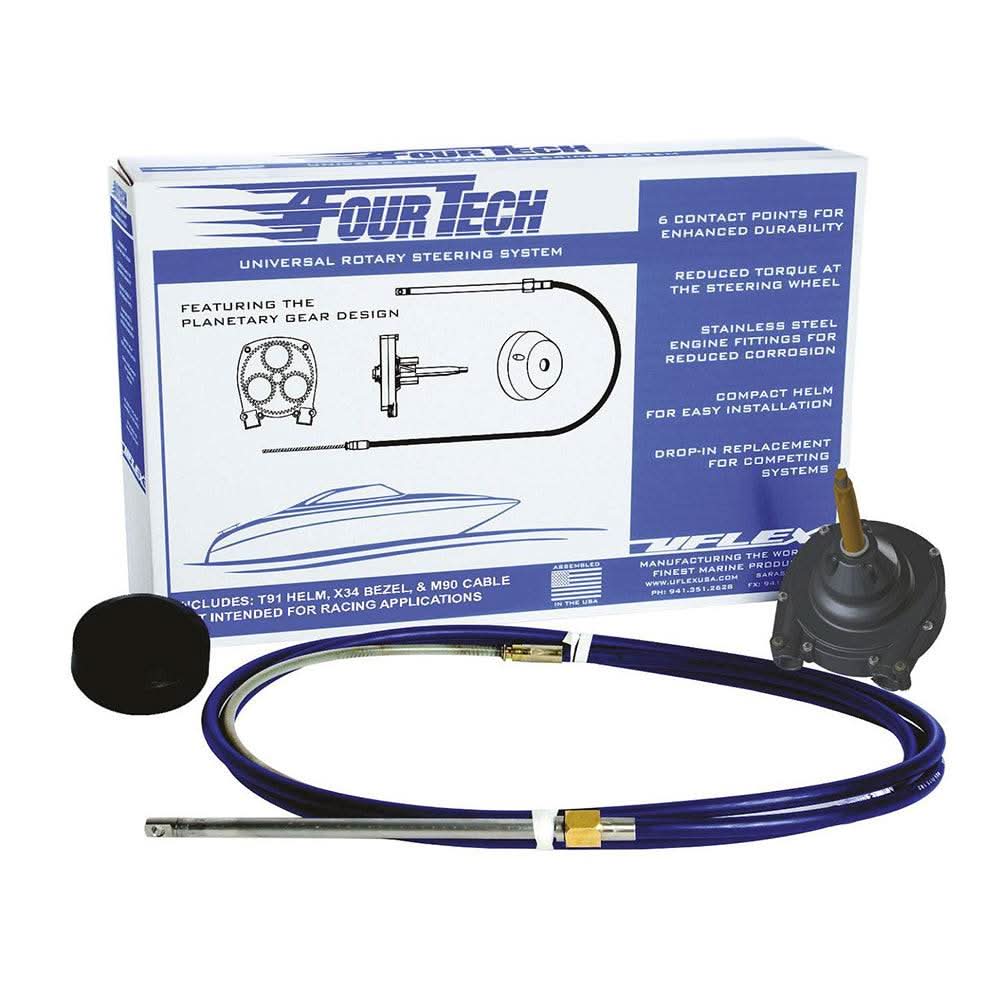

Uflex Fourtech 14' Mach Rotary Steering System with Helm, Bezel & Cable - FOURTECH14

Uflex Fourtech 14' Mach Rotary Steering System (FOURTECH14)

Upgrade your vessel’s responsiveness with the Uflex Fourtech 14' Mach Rotary Steering System. This high-performance mechanical steering kit is engineered to provide a smoother, more efficient "high-performance" feel than standard rotary systems. By utilizing a Planetary Gear Design, the helm distributes steering loads across three gears instead of one, significantly reducing wear and providing a more balanced, precise tactile response.

High-Efficiency Planetary Gear Technology

The FOURTECH14 package is designed for boaters who want the reliability of mechanical steering with the smooth effort typically found in more expensive systems. The centered drive shaft allows the helm to be more compact, making it a perfect "drop-in" replacement for most industry-standard steering systems without the need for new holes in your dash.

Key Features:

• T91 Planetary Gear Helm: Features three gears that rotate on their own axis and also rotate around the central gear. This design provides 6 points of contact for maximum durability and minimal backlash.

• M90 Mach Steering Cable (14'): Includes the patented, highly flexible Mach cable. It features a high-performance core for reduced friction and a tighter bend radius (approx. 5.9"), making it ideal for tight engine wells.

• Compact Footprint: Requires less room behind the dash than traditional steering helms, easing installation in crowded consoles.

• Standard 3/4" Tapered Shaft: Compatible with a wide variety of aftermarket and OEM steering wheels.

• Corrosion Resistant: Built with marine-grade materials and a stainless steel cable output end with a patented gasket to keep lubrication in and salt out.

• Fast Connect System: Features a simple "plug-and-play" cable connection to the helm for faster installation and maintenance.

Technical Specifications:

• Model Number: FOURTECH14

• Cable Length: 14 Feet

• Turns Lock-to-Lock: Approx. 4.2

• Stroke: 9" (228 mm)

• Max Steering Wheel Diameter: 16" (406 mm)

• Standard Bezel: 90° Black (X34)

• Safety Standards: Exceeds EN 28848 and ABYC P17 standards.

What’s Included in the Kit:

• T91 High-Performance Rotary Helm

• X34 90° Black Mounting Bezel

• M90 Mach 14' Steering Cable

• All necessary mounting hardware

Selection Tip:

The FOURTECH14 is recommended for boats where engine power does not exceed the boat's rating and for speeds under 50 MPH.²⁴ For high-speed hulls (50+ MPH) or high-torque applications, consider upgrading to a Uflex SilverSteer™ Hydraulic System.
The package includes:
