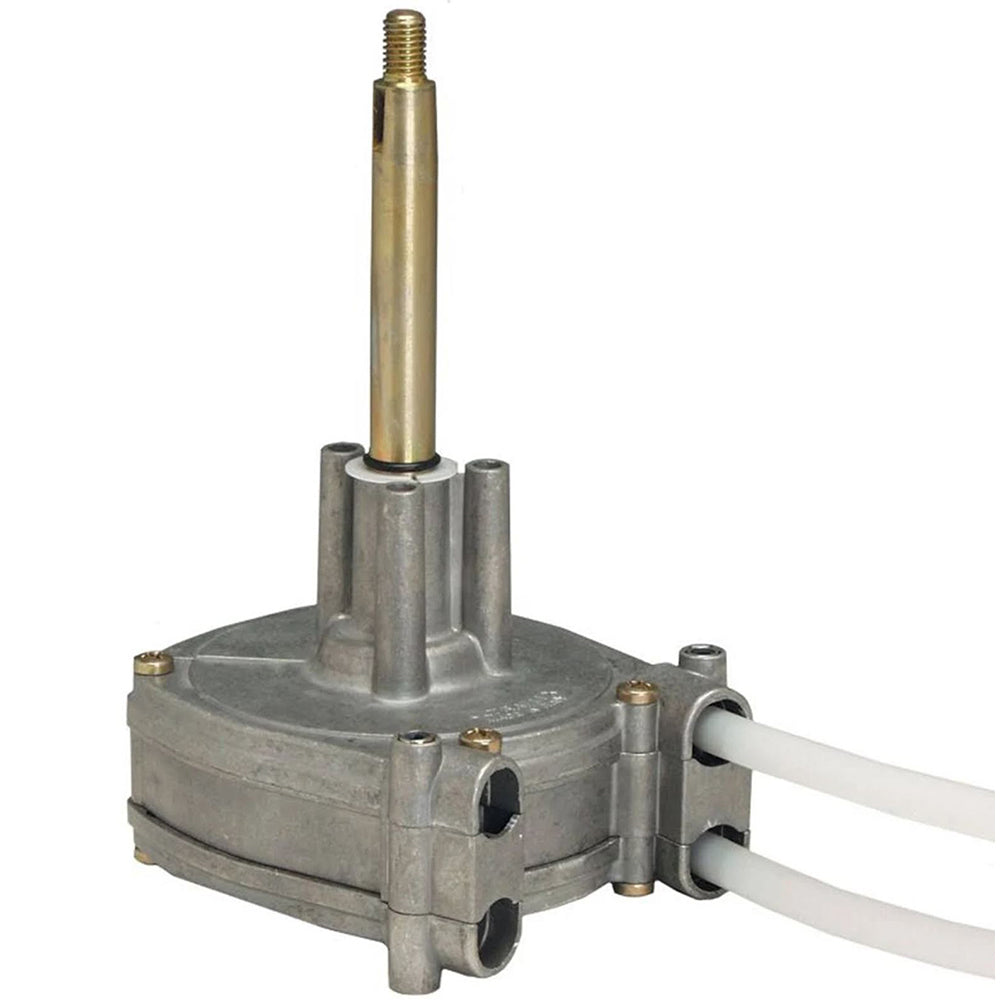

Uflex Dual Rotary Steering Helm FC - T72FC

Dual Rotary Steering Helm FC

Features:

• Fast connect, simple installation
• All stainless steel cable output ends
• Corrosion-resistant materials
• Optional 90° or 20° installation
• Standard 3/4” tapered shaft
• Lock-to-lock steering wheel turns: approx. 3.8
• Stroke: 9” (228 mm)
• Maximum allowable steering wheel diameter: 16” (406 mm)
• Minimum steering cable bend radius: 7.9” (200 mm)
• Minimal feedback
• Compact for mounting
• T72FC steering systems are not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat
• For boats faster than 50 mph our hydraulic steering systems are recommended
• Exceeds EN 28848 safety standards
• Exceeds ABYC P17 safety standards
