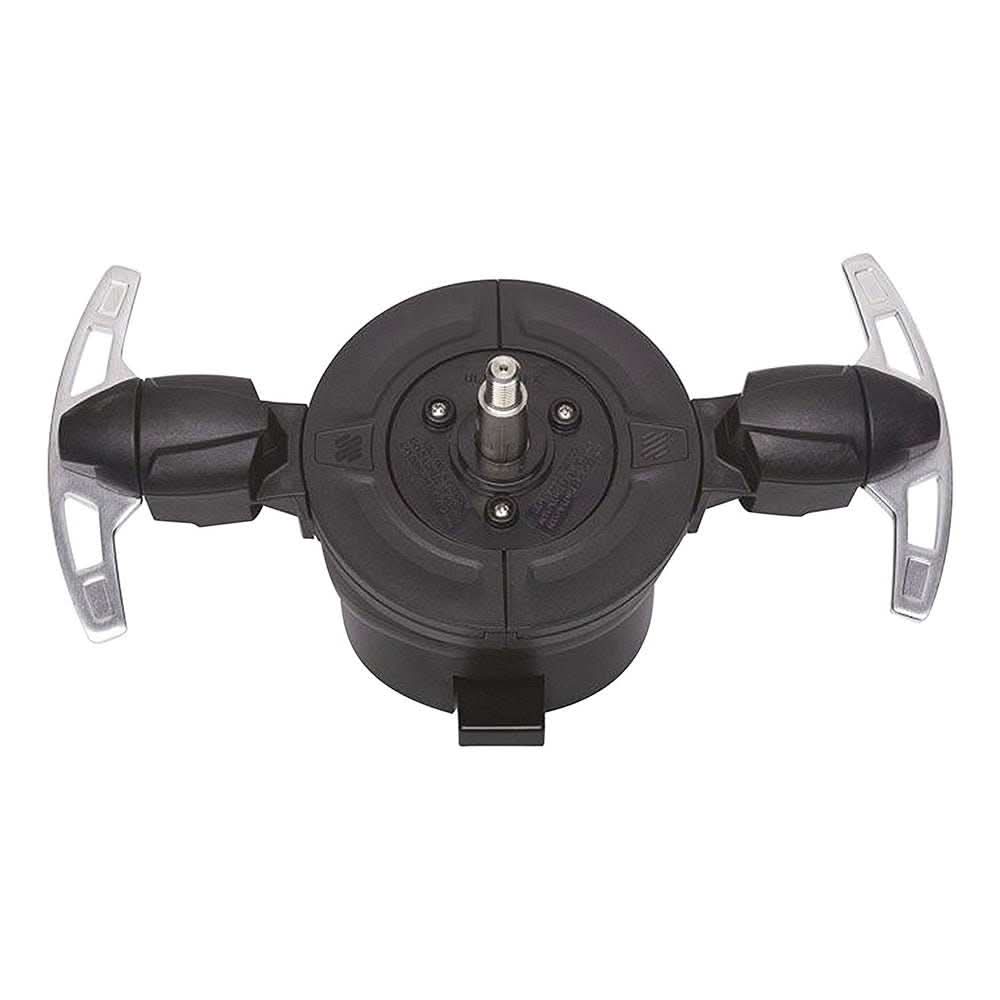

Uflex Double Paddle Trim System - PTS-2

Uflex Double Paddle Trim System | PTS-2

Take control of your boat’s performance without ever taking your hands off the steering wheel with the Uflex PTS-2 Double Paddle Trim System. Designed for high-performance bass boats, center consoles, and offshore racers, this system provides the ultimate in ergonomic control for engine trim, jack plates, or power poles.

Performance at Your Fingertips

The PTS-2 (Power Trim Station) mimics the paddle-shift technology found in high-end sports cars. By mounting directly behind the steering wheel on the helm hub, it allows the driver to make instantaneous adjustments to the engine's trim and jack plate height while maintaining total steering control. This is a critical safety and performance feature for high-speed operation where losing grip on the wheel can be dangerous.

Key Features:

• Dual-Paddle Control: Features two independent paddles—typically used for Engine Trim on one side and Jack Plate or Power Pole control on the other.

• Universal Fit: Designed to fit most Uflex and Teleflex (SeaStar) hydraulic steering helms, as well as mechanical steering systems.

• Durable Construction: Built with a heavy-duty stainless steel bracket and UV-resistant, marine-grade composite paddles to withstand the harshest environments.

• Ergonomic Design: The paddles are curved to follow the contour of the steering wheel, providing a natural reach for any hand size.

• Toggle Action: Features a positive "click" response, providing tactile feedback so the driver knows exactly when the switch has been engaged.

• Safety First: Keeps the driver’s hands on the wheel at all times, reducing the risk of "hooking" or losing control during high-speed trim adjustments.

Technical Specifications:

• Model Number: PTS-2 (Double Paddle)

• Wiring: Includes a pre-wired harness for easy integration into your boat's electrical system.

• Switch Rating: Heavy-duty waterproof switches rated for 12V DC.

• Mounting: Mounts between the steering wheel and the helm pump.

Versatile Functionality

While most anglers use the PTS-2 for Trim and Jack Plate, it can be wired to control any two-way electrical function, such as:

1. Left Paddle: Engine Trim Up/Down.

2. Right Paddle: Hydraulic Jack Plate Up/Down.

   Alternatively, it can be used for twin-engine trim or dual Power Pole deployment.

Installation Note:

The PTS-2 is a "bolt-on" accessory that installs behind the steering wheel. Depending on your current steering wheel depth, you may need to ensure your helm shaft has enough length to accommodate the bracket. The system comes with a wiring harness, but additional 3-strand wire may be needed to reach your trim pump or jack plate relay.
