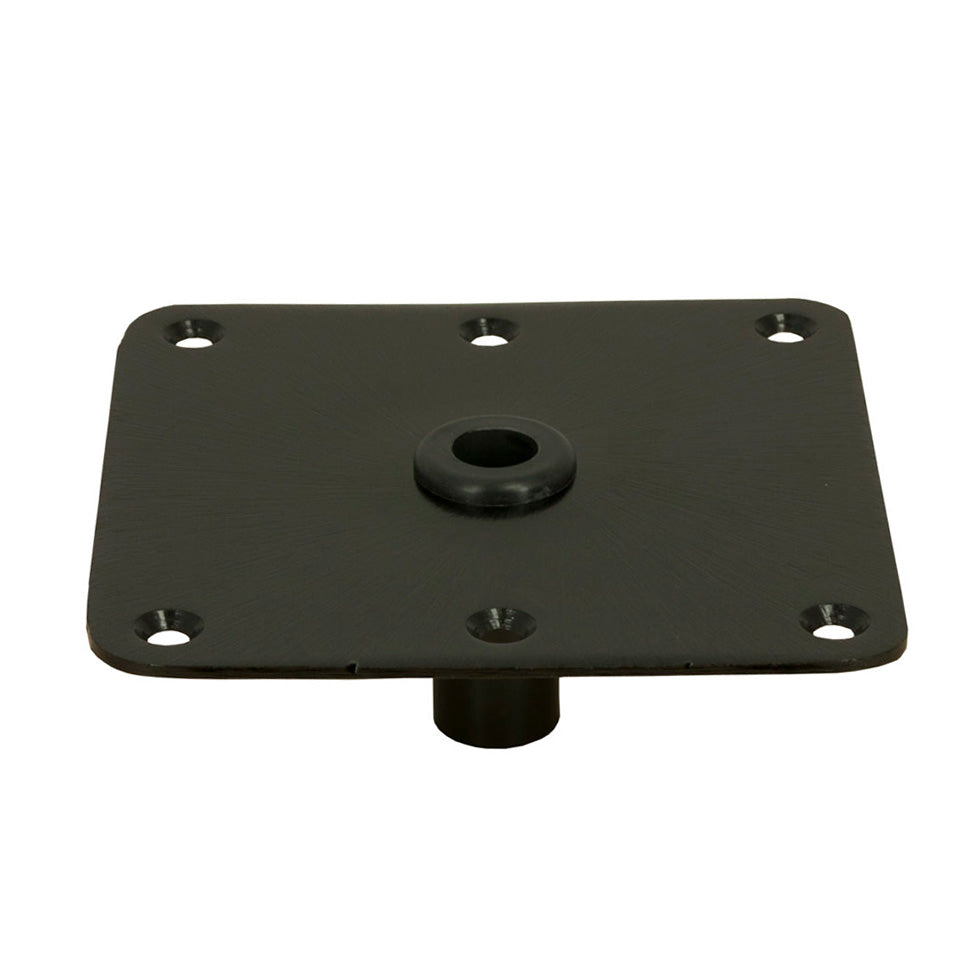

Springfield Marine KingPin Standard Square Steel Base with Satin E-Coat - 7x7 Inches - 3620011
Manufacturer Part #: 3620011
Couldn't load pickup availability
Springfield Marine KingPin Standard Square Steel Base – 7×7 in – Satin E-Coat
MPN: 3620
Provide a solid, marine-ready foundation for seating and accessories with the Springfield Marine KingPin Standard Square Steel Base. Designed for durability, strength, and long-lasting performance, this 7×7-inch mounting base is built from rugged steel with a satin electro-coated finish to resist corrosion in fresh and saltwater environments.
The square base design offers reliable support for KingPin pedestals and a variety of marine seating and table applications—making it a great choice for fishing boats, center consoles, cruisers, and pontoon seating systems. Easy to install with through-bolt mounting, the Springfield KingPin base delivers a secure platform you can count on for years of dependable service.
Key Features:
-
KingPin Standard Design: Compatible with all standard KingPin non-threaded pedestals and power-poles.
-
Satin E-Coat Finish: An electrically applied coating that provides superior protection against rust and wear, perfect for deck mounting.
-
Heavy-Duty Steel Construction: Built to withstand the torque and weight of occupied seats during rough water conditions.
-
Flush Mount Profile: Requires a 3-inch hole in the deck for the socket, ensuring the top plate sits nearly flush to the floor to prevent tripping.
-
Universal Bolt Pattern: Uses standard mounting holes that match most pre-drilled boat floors.
Technical Specifications
| Feature | Details |
| Model Number | 3620 |
| Base Dimensions | 7" x 7" Square |
| Material | High-Strength Steel |
| Finish | Satin E-Coat (Black/Grey) |
| Socket Type | Non-Threaded KingPin |
| Deck Cutout Required | 3" Diameter |
| Socket Depth | Approximately 3" Below Deck |
Installation & Maintenance
-
Support: Ensure your deck has a sturdy backing plate or sufficient wood/fiberglass thickness to support the load of a seated passenger.
-
Sealing: Use a high-quality marine sealant (like 3M 4200) around the mounting screws and the underside of the plate to prevent water from leaking into your boat's sub-floor.
-
Fasteners: This base typically requires 1/4" countersunk bolts or screws (not included). Stainless steel hardware is highly recommended to prevent "bleeding" or rust stains on your carpet or vinyl.
Ideal For
-
Mounting boat seats and pedestals
-
Fishing and cruising boats
-
Pontoon boat seating configurations
-
Marine chairs, stools, and table installations
Product Specifications
-
Brand: Springfield Marine
-
Product: KingPin Standard Square Steel Base
-
Dimensions: 7×7 inches
-
Finish: Satin E-Coat
-
Material: Steel
-
Mount Type: Square base for through-bolt installation
-
Manufacturer Part Number: 3620
BRAND: Springfield Marine
Manufacturer Part Number: 3620011
Springfield Marine KingPin Standard Square Steel Base with Satin E-Coat - 7x7 Inches - 3620011 is backordered and will ship as soon as it is back in stock.
