SmartPlug 50 Amp Boatside Connector - BF50
Manufacturer Part #: BF50
Couldn't load pickup availability

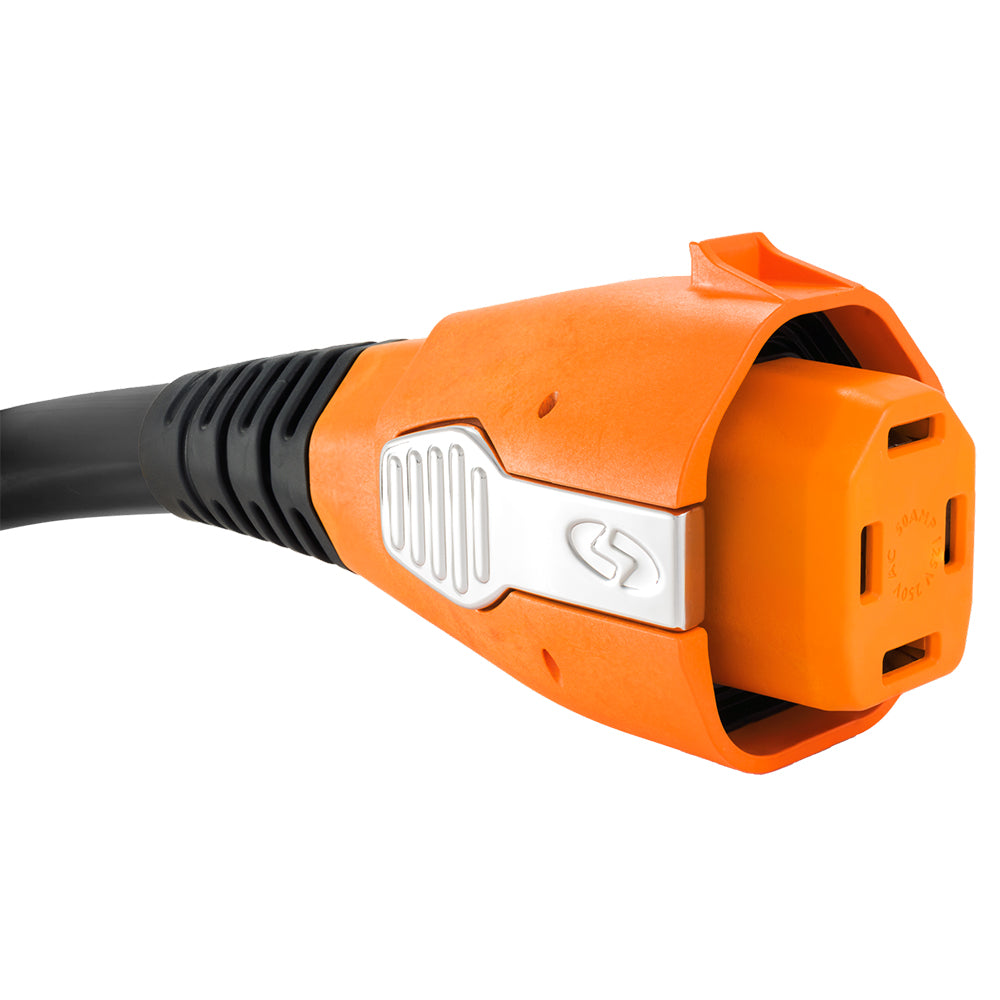

SmartPlug 50 Amp Boatside Connector (BF50)
The SmartPlug 50 Amp Boatside Connector (BF50) delivers a safer, more reliable shore power connection for high-amperage marine and RV applications. Designed as a direct retrofit upgrade for traditional 50A twist-lock connectors, the BF50 features SmartPlug’s innovative push-in design that eliminates twisting and ensures proper alignment every time.
Rated for 50 amps at 125/250V AC, this female boatside connector uses straight blade contacts with increased surface area to reduce resistance, overheating, and power loss under heavy electrical loads. A multi-point locking system securely fastens the connector into the inlet, minimizing movement and strain caused by wave action or dock stress.
Built with marine-grade, corrosion-resistant materials and weather-sealed gaskets, the SmartPlug BF50 is ideal for boats, yachts, and RVs seeking improved shore power safety, durability, and performance.
Features:
-
20x Electrical Contact Area: Straight solid pin layout maximizes pin-to-clip contact area, preventing resistance overheating, arcing, and burned shore power pins.
-
Straight Push-In Operation: No alignment indexing or twisting required; plug pushes straight into the inlet for effortless connection even in the dark.
-
Multi-Point Side Locking System: Heavy-duty spring-loaded side clips lock the plug body securely into the vessel inlet, removing physical stress from the electrical contacts.
-
Dual Watertight Cable Seals: Comes packaged with two interchangeable rear silicone gaskets to ensure a weatherproof, watertight seal on either 125V (3-wire) or 250V (4-wire) shore power cables.
-
High-Impact Marine Polymers: Constructed from UV-resistant, flame-retardant marine-grade composite plastic built for severe saltwater environments.
- Can be used with 125V or 250V service
- Can be plugged in easily in the dark or awkward locations effortlessly
- 20x more electrical contact means no overheating
- Weatherproof seals to eliminate corrosion
- Triple locks are stronger and easier to use
- Sleeved designs ensures a stable electrical connection every time
Technical Specifications — SmartPlug 50 Amp Boatside Connector (BF50)
⚡ Electrical Ratings
-
Amperage: 50 Amps – engineered for 50 A marine/RV shore power systems (125 V/250 V)
-
Voltage: 125 V / 250 V AC service compatibility for standard North American shore power circuits
-
Poles/Wires: 3-pole/4-wire grounding configuration suitable for both 125 V and 250 V connections
🔌 Connector Details
-
Connector Type: Female boatside shore power connector (retrofit)
-
Installation: Designed to retrofit onto existing 50 A shore power cord — simply cut off old plug and install this connector
-
Push-In Design: Self-aligning push-in interface — no twisting required, ensures correct orientation even in low light
-
Contact System: Straight electrical blades with increased contact area for better conductivity under high load
🛠️ Features & Build
-
Locking System: Multi-point locking clips with spring-loaded stainless steel levers secure the connector into the inlet and resist movement/stress
-
Cord Restraint: Integrated mechanical cord restraint reduces strain on electrical contacts
-
Seals: Weatherproof face seal and silicone gaskets help prevent moisture intrusion into the connector body
-
Cord Seals Included: Multiple cord seal sizes provided for both 3-wire (125 V) and 4-wire (250 V) cable diameters
-
Color: SmartPlug orange high-visibility housing
🏗️ Applications
-
Marine Shore Power: For boats, yachts, and vessels requiring reliable 50 A shore power connection
-
RV Use: Compatible with 50 A RV shore power cords when a SmartPlug solution is desired
📦 General
-
Part Number: BF50
-
Connector Only: Female boatside connector (does not include inlet or cordset)
-
Designed For: Use with SmartPlug inlets (e.g., SmartPlug BM50 series) and cordsets
-
20x Electrical Contact Area: Straight solid pin layout maximizes pin-to-clip contact area, preventing resistance overheating, arcing, and burned shore power pins.
-
Straight Push-In Operation: No alignment indexing or twisting required; plug pushes straight into the inlet for effortless connection even in the dark.
-
Multi-Point Side Locking System: Heavy-duty spring-loaded side clips lock the plug body securely into the vessel inlet, removing physical stress from the electrical contacts.
-
Dual Watertight Cable Seals: Comes packaged with two interchangeable rear silicone gaskets to ensure a weatherproof, watertight seal on either 125V (3-wire) or 250V (4-wire) shore power cables.
-
High-Impact Marine Polymers: Constructed from UV-resistant, flame-retardant marine-grade composite plastic built for severe saltwater environments.
In-The-Box Package Contents
-
1x SmartPlug BF50 50 Amp Female Boatside Plug Housing Assembly
-
1x Small Diameter Weatherproof Cord Seal Gasket (125V Cable Fitment)
-
1x Large Diameter Weatherproof Cord Seal Gasket (125/250V Cable Fitment)
-
1x Wire Color Alignment & Assembly Guide
Frequently Asked Questions (FAQs)
Q: Can I install the BF50 connector on my existing shore power cable?A: Yes. The BF50 is designed as an easy retrofit. You simply cut off the legacy L5-50 or SS2-50 twist-lock female plug on your existing marine shore power cord and wire the color-coded terminals inside the SmartPlug BF50 body.
Q: Will this connector plug into standard dockside shore power pedestals?A: No, the BF50 connects exclusively to the boat side of your system into a matching SmartPlug 50A hull inlet (such as the BM50S). The dockside end of your cable continues to use a standard dockside power plug.
Q: How does the SmartPlug prevent shore power fires?A: Traditional twist-lock plugs rely on small, curved blades with limited contact area that loosen over time, leading to electrical arc resistance and heat. SmartPlug uses thick, straight pins with 20x more contact area and mechanical side latches to hold the connection tight and cool.
