SmartPlug 30 Amp Boatside Inlet & Plug Combo Stainless Steel - B30ASSYNT

SmartPlug 30 Amp Marine Shore Power Upgrade Kit - Stainless Steel Inlet & Female Connector - B30ASSYNT

Upgrade your boat’s shore power connection with the SmartPlug B30ASSYNT, a 30 Amp boatside inlet and plug combo designed for marine applications. This premium cordset features a stainless steel connector housing and a No Thermostat (NT) design, delivering maximum durability, safety, and style for modern boats and yachts.

The stainless steel construction provides superior resistance to corrosion, UV damage, and impact, ensuring long-lasting performance even in harsh marine environments. The No Thermostat design allows for unfiltered power delivery, making it ideal for boat owners who prioritize maximum conductivity, minimal heat buildup, and overheat-free operation.

SmartPlug’s patented design offers 20x more metal-to-metal contact than traditional twist-locks, ensuring a cooler, more reliable connection. The straight-in push-and-lock mechanism eliminates the need for twisting rings, making shore power connections faster, safer, and easier than ever.

Perfect for powering air conditioners, battery chargers, and other high-load onboard systems, the B30ASSYNT combines professional-grade reliability with a sleek, stainless steel aesthetic to match high-end marine hardware.

Key Features & Benefits

• 20x Electrical Contact Area: Maximizes conductivity and dramatically reduces electrical resistance and heat buildup compared to legacy twist-lock plugs.

• Intuitive Push-In Design: Straight push-in alignment eliminates twisting or turning in the dark—plugs directly into place every time.

• Multi-Point Locking System: Dual side-locking spring clips snap securely into the stainless steel inlet housing, relieving all strain on internal electrical pins.

• Tri-Gasket Weatherproof Seal: Multi-fin silicone gaskets prevent moisture ingress, eliminating pin corrosion and salt-spray oxidation.

• Direct Drop-In Retrofit: Mounting flange holes match standard marine twist-lock inlet patterns, allowing a clean, 30-minute installation with no drilling required.

• 316 Stainless Steel Construction: Polished marine-grade 316 stainless steel lid and bezel offer superior UV resistance and protection against harsh saltwater environments.

What Is Included in the Box?

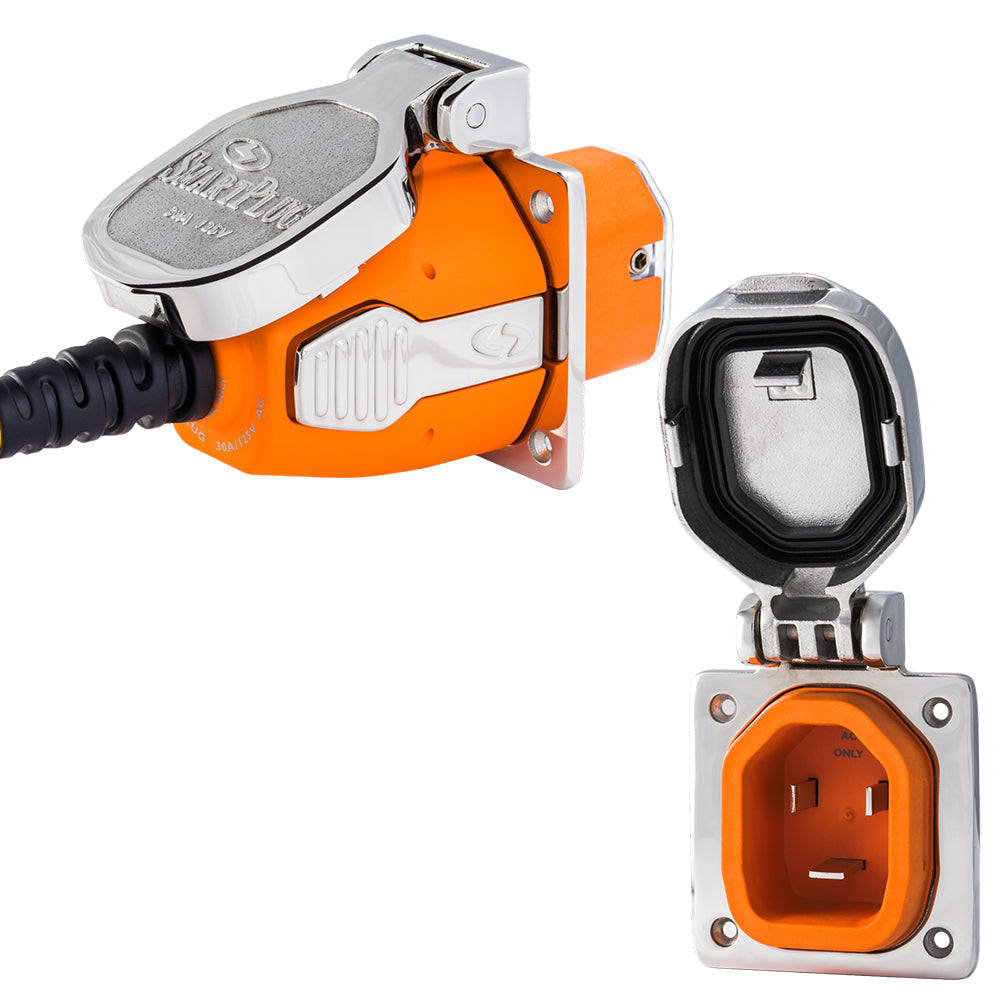

• (1) SmartPlug 30 Amp Stainless Steel Boatside Inlet (MPN: B30NT)

• (1) SmartPlug 30 Amp Female Retrofit Cordset Connector (MPN: BF30)

• (1) Rear Waterproof Strain Relief Boot

• (1) Mounting Gasket Set

• Installation Instructions & Mounting Hardware

Frequently Asked Questions (FAQ)

Q: Do I need to replace my entire shore power cord to install the SmartPlug system?

A: No! The included female connector (BF30) is designed to retrofit onto the boat-side end of your existing 30A shore power cord in under 15 minutes using standard hand tools.

Q: Will this fit the existing screw hole pattern on my boat?

A: Yes, the mounting flange is specifically engineered to match the standard 3-hole or 4-hole mounting patterns used by conventional 30A twist-lock inlets.

Q: What is the difference between B30ASSY and B30ASSYNT?

A: The "NT" designation stands for "No Thermostat." Model B30ASSYNT features standard solid pins designed for maximum electrical conductivity without integrated thermal cut-off sensor wiring.

Why the B30ASSYNT is the Premium Choice

• Marine-Grade Stainless Steel: The inlet and connector cover are crafted from 316 stainless steel for a high-end look and maximum resistance to corrosion and pitting.

• Cost-Effective Pro Upgrade: Don't replace your entire 30A cable; simply retrofit the included SmartPlug female connector onto your existing cord to match the new inlet.

• Fire-Safe Technology: The patented sleeve-and-pin design ensures a cool connection, even when running high-draw appliances like air conditioners or heaters.

• Intuitive "Straight-In" Design: No more fumbling with pins or threaded rings. The connector pushes straight into the inlet and locks with dual side-locking clips.

Technical Specifications

Maintenance for Peak Performance

• Rinse: Regularly rinse the stainless steel inlet and connector with fresh water to remove salt spray and prevent mineral deposits.

• Inspect: Check the silicone seals for wear to ensure the system remains 100% weatherproof.

• Protect: Keep the connector end in a dry location when not in use to maintain the integrity of the silver-plated contacts.

Buying Tip: Match Your Hardware

The Stainless Steel B30ASSYNT is the perfect aesthetic match for the high-quality cleats, rails, and hardware found on modern yachts and powerboats. It doesn't just make your boat safer—it makes it look better.
