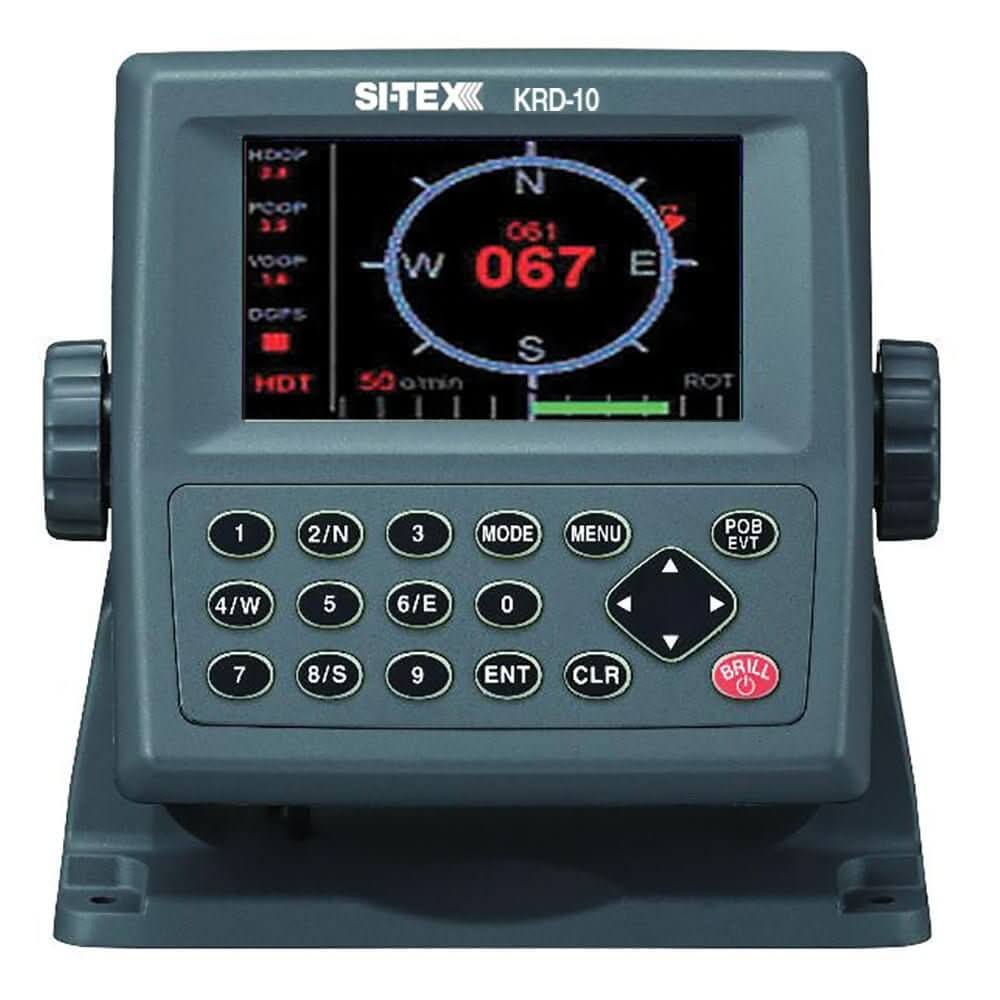

SI-TEX Color LCD NMEA 0183 Repeater - KRD-10

Color LCD NMEA 0183 Repeater

Features:

• Maximum performance and simple setup
• Clear 4.3" Color LCD Display that is viewable even in the harshest sunlight conditions
• Bonded color LCD ensuring condensation free operation as well as great visibility
• Utilizing NMEA-0183 interface external sensors can easily be connected for simple and reliable operation
• 18 Different Display Modes
• Converts from L/L to Loran C, Loran A, & Decca LOPs
• Track Plotter features 10,000-point, 100 Route, & 3,000 track point memory
• Low 4.5-watt power consumption, 10.8 to 31.2 VDC power supply
• Very easily flush mounted

Specifications:

• SI-TEX Model KRD-10
• Display: 4.3" color LCD
• Display Resolution: 480 x 272 pixels (WQVGA)
• Display Mode: Compass, Rate of turn, Rudder Angle, Navigation, Plotter, Water Temperature, Highway, Weather Info,
• Standard Input & Output: NMEA-0183 versions 1.5, 2.0, 3.0
• Nominal Voltage: 10.8 to 31.2 VDC
• Water Protection: IPX6
• Dimensions: 5.75" W x 5.75" H x 2.75" D

In the Box:

• KRD-10 Display with Mounting Bracket, Knobs, Sun Cover
• Power Cable & NMEA Interface Cable
• Operation Manual

18 Functions Including:

• NAVIGATION
• STEERING
• HIGHWAY
• DEPTH
• WATER TEMPERATURE
• WIND
• HEADING
• COURSE
• RATE OF TURN
• POSITION
• CURRENT
• WEATHER DATA
