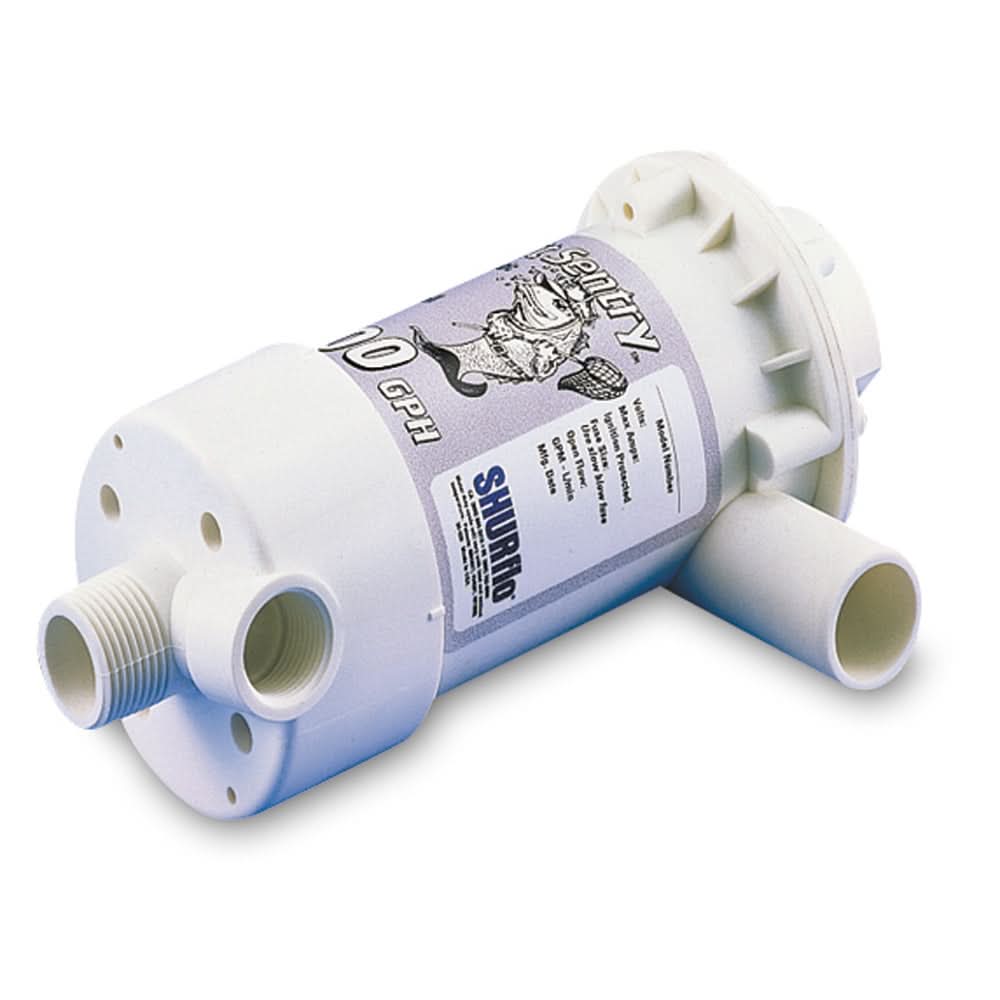

Shurflo BAIT SENTRY 800 Magnetic Drive Livewell Pump - 800 GPH - 1700-011-030
Manufacturer Part #: 1700-011-030
Couldn't load pickup availability
Shurflo BAIT SENTRY 800 Magnetic Drive Livewell Pump – 800 GPH – 1700-011-030
Keep your livewell water circulating efficiently with the Shurflo BAIT SENTRY 800 Magnetic Drive Livewell Pump 1700-011-030, a compact and durable pump designed for reliable bait and catch aeration. With a flow rate of 800 gallons per hour (GPH), this pump delivers quiet, efficient water circulation to maintain healthy conditions in livewells and baitwells.
Featuring magnetic drive technology, the BAIT SENTRY 800 provides continuous-duty operation with reduced wear and long-lasting performance in both freshwater and saltwater environments. Its compact, submersible design allows for easy installation in tight livewell compartments, making it ideal for recreational anglers, tournament boats, and small commercial applications.
Built to Shurflo and Pentair marine-grade standards, this pump combines efficiency, quiet operation, and durability for superior livewell management.
Key Performance Features
-
Seal-less Magnetic Drive: The motor drives the impeller using magnetic force rather than a physical shaft. This eliminates the shaft seal, ensuring water can never leak into the motor and cause burnout.
-
Anti-Airlock Design: Specifically engineered to clear trapped air automatically. This allows the pump to prime and restart reliably even when the boat is running at high speeds or navigating choppy, aerated water.
-
Dual Port Versatility: The base includes a secondary 1/2" NPT inlet port, allowing you to connect a washdown pump to the same thru-hull fitting, simplifying your boat's plumbing layout.
-
Easy Maintenance: The motor and impeller assembly can be swapped out without tools or removing hoses, making it easy to clean or replace parts while on the water.
-
Continuous Duty Rated: Built with a liquid-cooled motor that can run 24/7, making it ideal for keeping delicate bait alive over long trips.
Technical Specifications
-
Flow Rate: 800 GPH [3028 LPH]
-
Voltage: 12V DC
-
Current Draw: 3.7 Amps
-
Inlet: 3/4" NPSM-Male (Thru-hull length: 4.3")
-
Outlet: 3/4" Barb
-
Secondary Port: 1/2" NPT Female
-
Warranty: 3-Year Manufacturer Warranty
Summary for the User
The Bait Sentry 800 is perfect for mid-sized livewells that require consistent, high-volume oxygenation. Its magnetic drive makes it significantly more durable than standard centrifugal pumps, especially in harsh saltwater environments.
Part Number: 1700-011-030
Perfect for anglers and boaters, the Shurflo BAIT SENTRY 800 provides dependable livewell circulation, quiet operation, and long-lasting performance.
Shurflo BAIT SENTRY 800 Magnetic Drive Livewell Pump - 800 GPH - 1700-011-030 is backordered and will ship as soon as it is back in stock.
