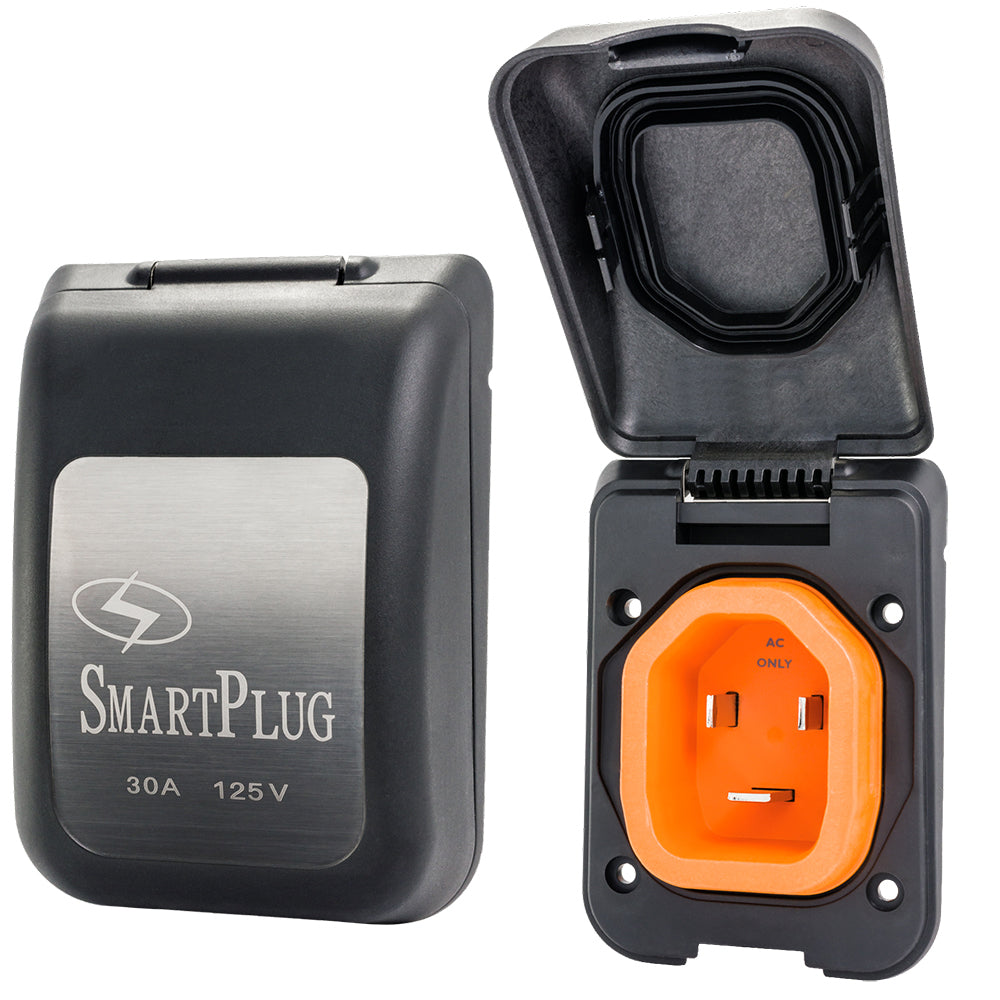

SmartPlug 30 Amp Non Metallic Black Inlet - Boat and RV Side - BM30PB

SmartPlug Systems 30 Amp Non-Metallic Black Inlet – Boat & RV Side

Model: BM30PB
Amperage: 30 Amp
Voltage: 125V AC
Color: Black
Material: Non-Metallic Housing
Application: Boat & RV Shore Power Inlet

Safer, Smarter Shore Power Connection

The SmartPlug 30 Amp Non-Metallic Black Inlet upgrades your boat or RV with a safer, more reliable shore power connection. Designed to reduce overheating and arcing, this inlet provides a secure electrical interface between your shore power cord and your onboard electrical system—helping protect your equipment and your vessel.

Enhanced Electrical Safety

SmartPlug’s innovative pin-and-clip design offers increased metal-to-metal contact, reducing resistance, heat buildup, and the risk of connection failure compared to traditional twist-lock inlets. That means cooler operation and improved reliability at high loads.

Durable, Corrosion-Resistant Construction

The non-metallic housing resists corrosion in harsh marine and outdoor environments. The rugged black finish looks clean on any hull or RV exterior while standing up to sun, salt, and weather.

Easy Retrofit for Boats & RVs

This inlet is designed as a direct upgrade for many standard 30A shore power inlets on boats and RVs. Installation is straightforward, making it a popular safety upgrade for cruisers, sailboats, campers, and travel trailers.

Key Features

• Superior Conductivity: Provides over 20x the electrical contact surface area compared to traditional twist-lock systems, virtually eliminating overheating.

• Weatherproof Seal: Features multi-layer silicone gaskets that keep moisture out of the internal electrical components even in driving rain.

• Easy Alignment: The unique "sleeved" design allows for easy one-handed operation—simply push the plug in until it clicks; no twisting or locking rings required.

• Triple Locking System: Dual side-locking clips and a heavy-duty lid latch ensure the connection stays secure despite vibrations or accidental cord tugs.

• Direct Replacement: Mounting holes match the industry-standard pattern for quick retrofitting.

In The Box

Technical Specifications

• Model Number: BM30PB

• Amperage: 30 Amps

• Voltage: 125 Volts

• Material: UV-Stabilized Glass-Filled Nylon

• Certifications: UL Listed, ABYC & CSA Compliant

Perfect For

• Boats & yachts

• Sailboats

• RVs & campers

• Shore power inlet upgrades

• New electrical installations
