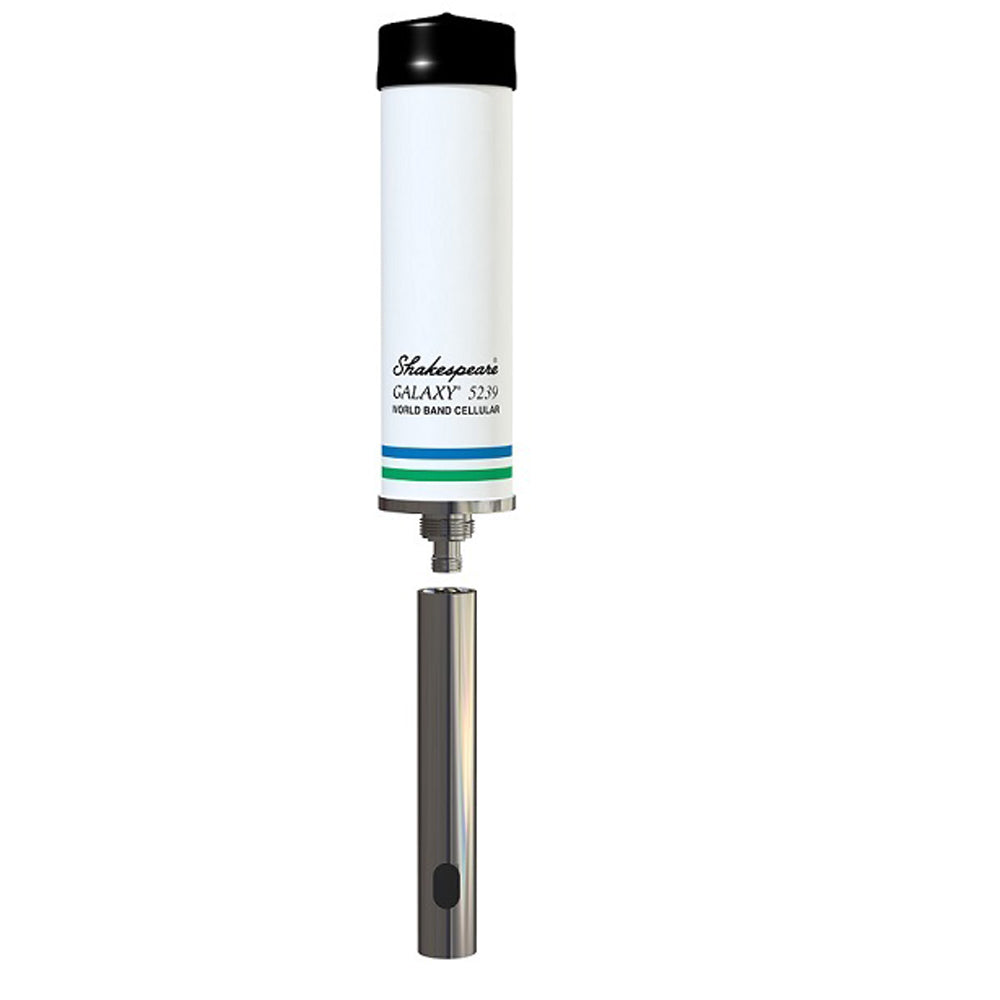

Shakespeare Cellular/Wi-Fi World Band Galaxy Antenna - 5239

Cellular/Wi-Fi World Band Galaxy Antenna

The Galaxy 5239 antenna is Shakespeare's smallest Galaxy antenna, but don't let the size fool you. This World-band antenna provides coverage for 2G/3G/4G and WLAN systems for Cellular, PCS, AWS and LTE frequencies, as well as 802.11n Wi-Fi. This compact, feature rich antenna is at home on virtually any watercraft, and is fitted with a stainless steel ferrule and N-connector that are compatible with nearly all Shakespeare 1in -14 threaded mounts.

Features:

• Full Band (698 - 2700 MHz) Broadband

• 2G/3G/4G and WLAN systems

• Wi-Fi 802.11n compatible

• Designed for marine use

• Omni-directional antenna 3-4 dB Gain.

• Easy to install

Specifications:

• Frequency: 698-960/1700-2700 MHz

• Input Impedence: 50 ohm

• Antenna Gain: 2-3dB @ 698-960/3-4dB @ 1700-2700 MHz

• VSWR: ≤ 1.8

• Power Rating (W): 10

• Polarization Type: Vertical

• Radiation: Omni-Directional

• Maximum Power (W): 100

• Connector Type: N-female

• Dimension: 9.25" H x 2.625" D

• Color: White

• Operating Temperature (F): -22 to +176

• Mounting: 1" x 14 Thread Mount

• Ground Plane: Internal

• Material: Fiberglass
